200 °C SELF-REGULATED | 130 W AT 12 V |
1:30 min PER HIVE (2 g) | 1 cm MINIMUM ENTRANCE GAP |

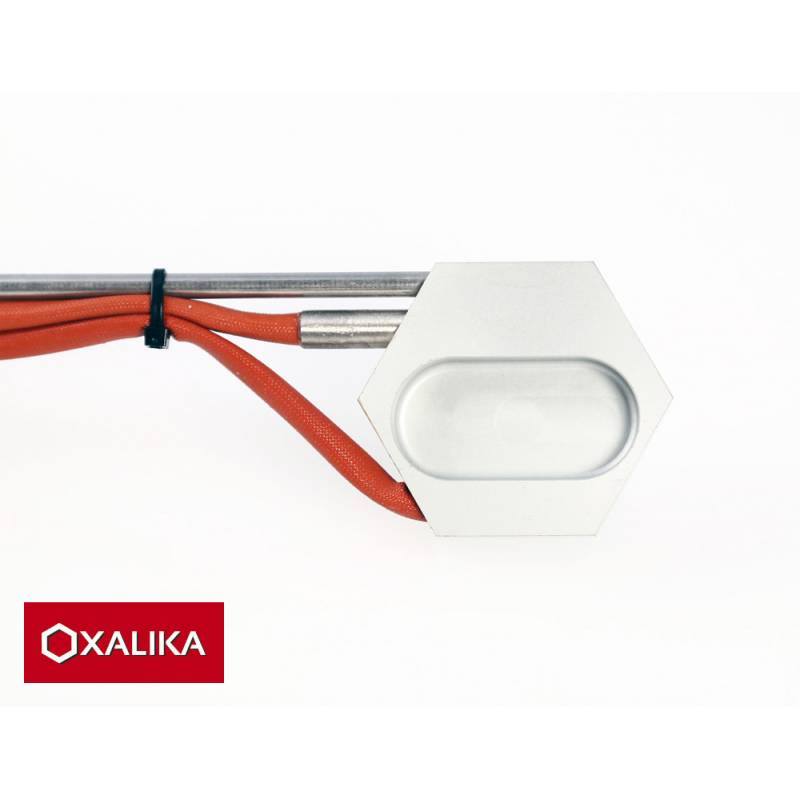

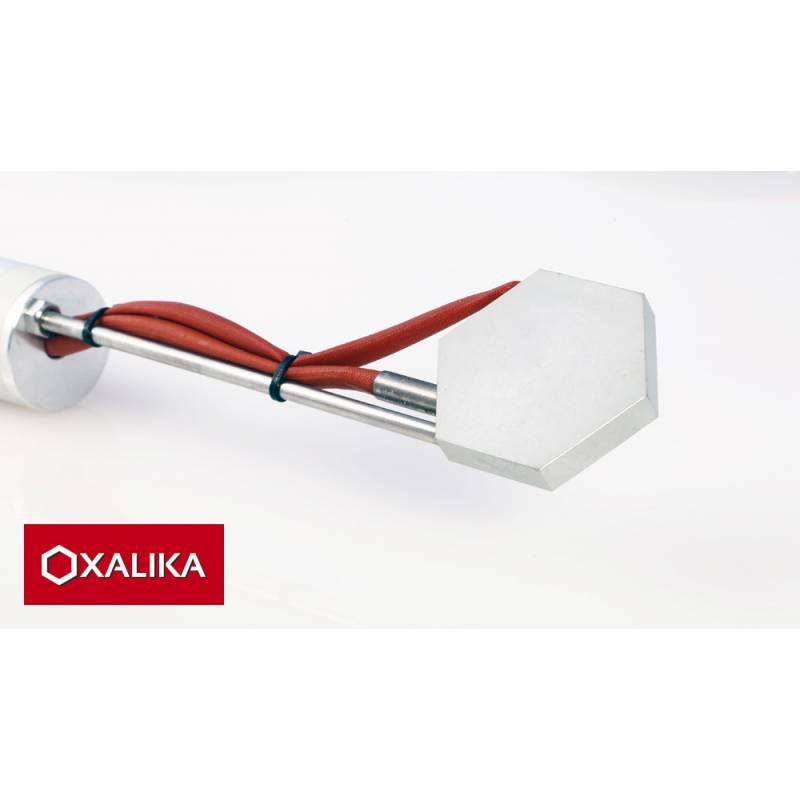

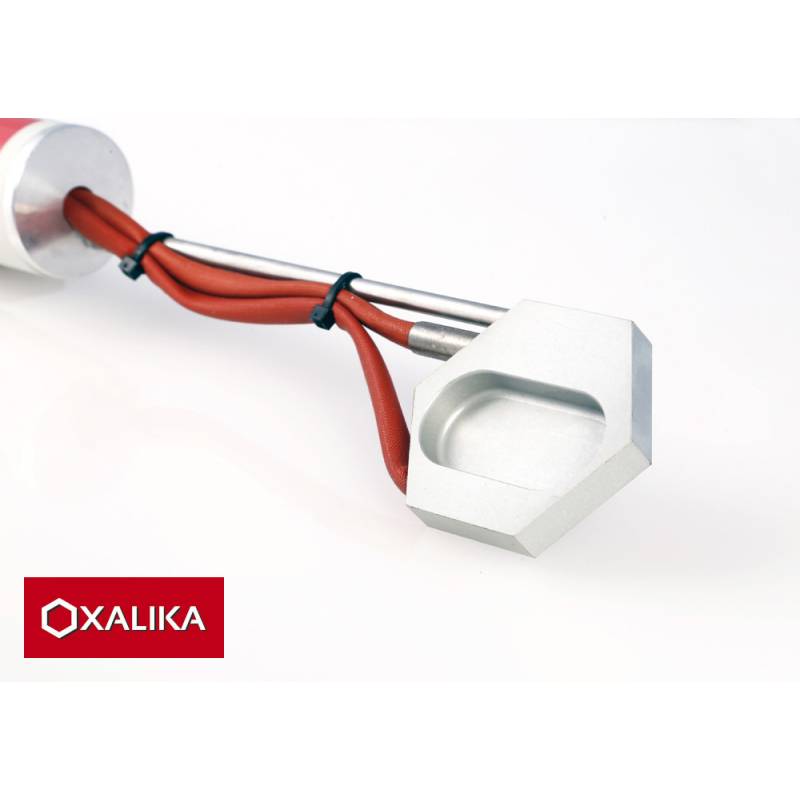

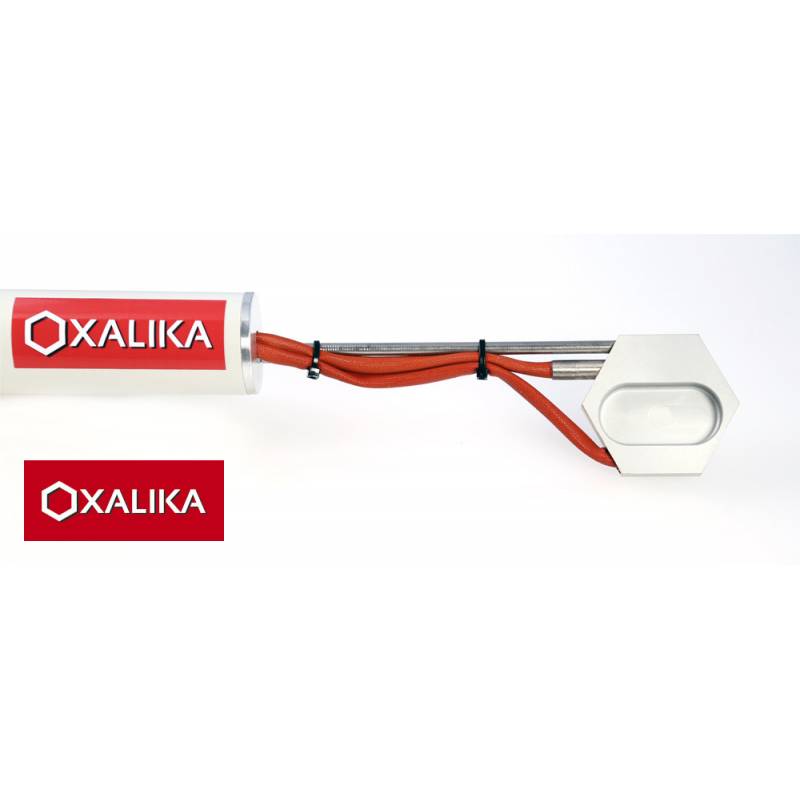

12 V vaporiser with temperature control in the pan itself, to treat through the entrance without opening the hive.
Most pan vaporisers simply heat up and trust the operator to switch them off in time. This one regulates the pan temperature during sublimation and holds it at 200 °C: never short, never over, and no switching off and cooling between hives.
01 · TEMPERATURE
Oxalic acid sublimes properly from around 190 °C, and above that it starts to dissociate and lose efficacy. Working at a controlled 200 °C means evaporating the whole gram at the lowest useful temperature rather than burning product to go faster. Because the control is continuous, you do not have to switch off between treatments: you chain hives and the pan holds its own.
02 · COMPATIBILITY
Treatment is done by sliding the pan in through the entrance, without lifting the roof or disturbing the colony. That sets one condition: the entrance needs at least 1 cm of clear gap. If you run reduced entrances, mouse guards fitted or hives closed up for transport, measure before ordering — that is the real incompatibility of this model, and it depends on entrance height, not on hive type.
03 · BATTERY AND SAFETY
It runs at 12 V with clips on a car battery, not included. The electrical circuit is isolated from the metal parts: if two or three of you work off the same battery and the units touch, the contact does not close a circuit. And it stops working before the battery is fully discharged, which is what ruins a starter battery. It stands thousands of treatment cycles.
04 · WORKING PACE
It sublimes 1 g in 40 seconds and 2 g in a minute and a half. That is slower than a 300 W PRO —which is where the price difference sits— but since it never needs to cool between hives, the sustained pace is considerably better than a pan vaporiser without control. For medium apiaries and for working alone, it adds up.
05 · BEFORE YOU BUY

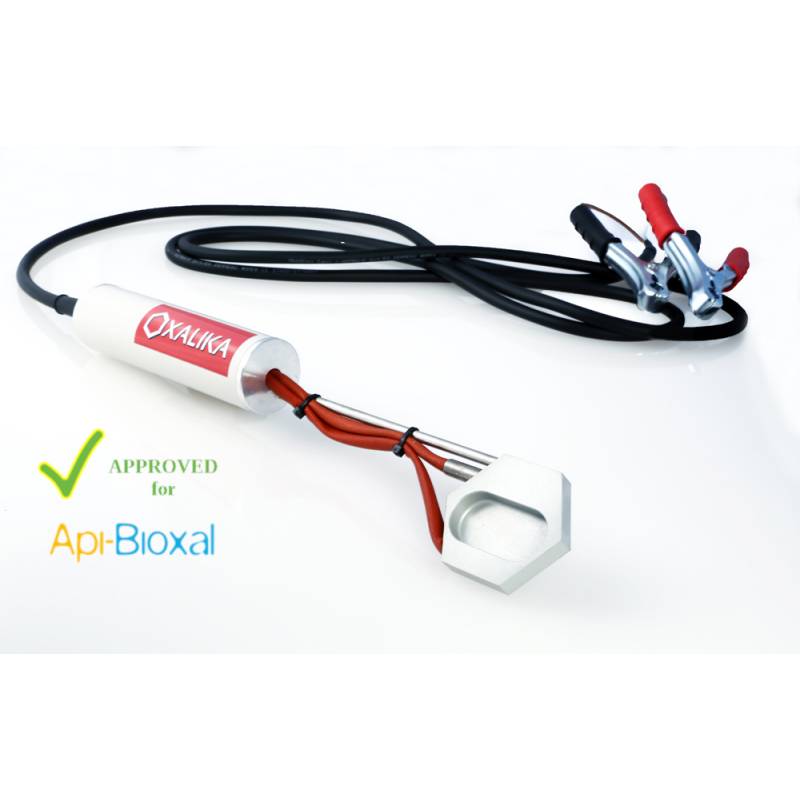

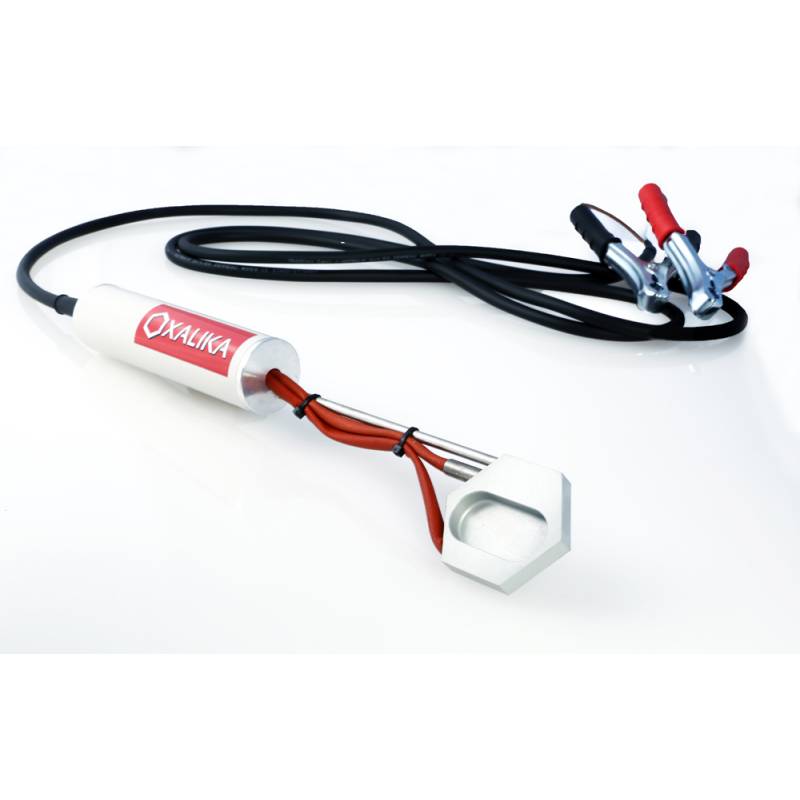

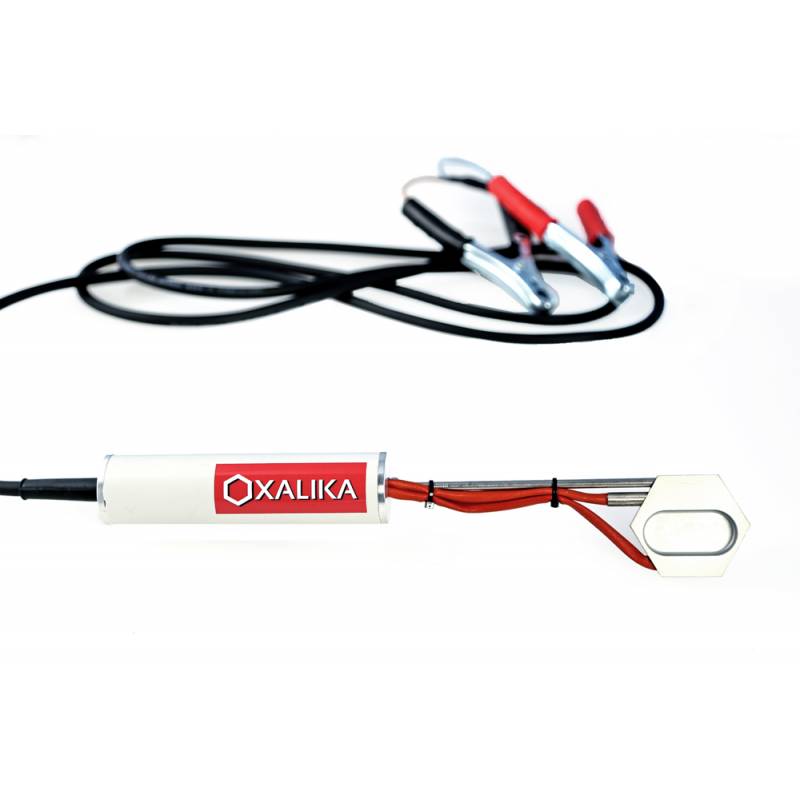

You get the vaporiser with its cable and clips and 2 measuring spoons. The battery is not included. Two heating-element versions exist —12×38 and 9.8×55 mm—: if you need a specific one because you already hold spares, ask us before ordering. Sublimation must be done with a veterinary medicine authorised for that route in your country.
| ✓ FITS | Hives with at least 1 cm of entrance gap. 12 V car battery. |
| ✕ DOESN'T FIT | Entrances under 1 cm, with narrow mouse guards or closed for transport. |
| ⚠ NOT INCLUDED | The battery, the medicine or the respiratory protective equipment, which is essential. |
⚠ PRECAUTIONS
Sublimation vapour is irritant and corrosive to the airways and the eyes. Work with proper respiratory protection, goggles and gloves, stand with your back to the wind and do not lean over the entrance while the unit is running. The pan gets very hot: let it cool before storing it.
| Power supply and output | 12 V DC · 130 W · car battery (not included) |
|---|---|
| Temperature | Self-regulated to 200 °C during sublimation |
| Timings | 40 s for 1 g · 1 min 30 s for 2 g |
| Application | Pan inserted through the entrance · minimum 1 cm gap |
| Safety | Circuit isolated from the metal parts · cuts out before the battery is fully discharged |

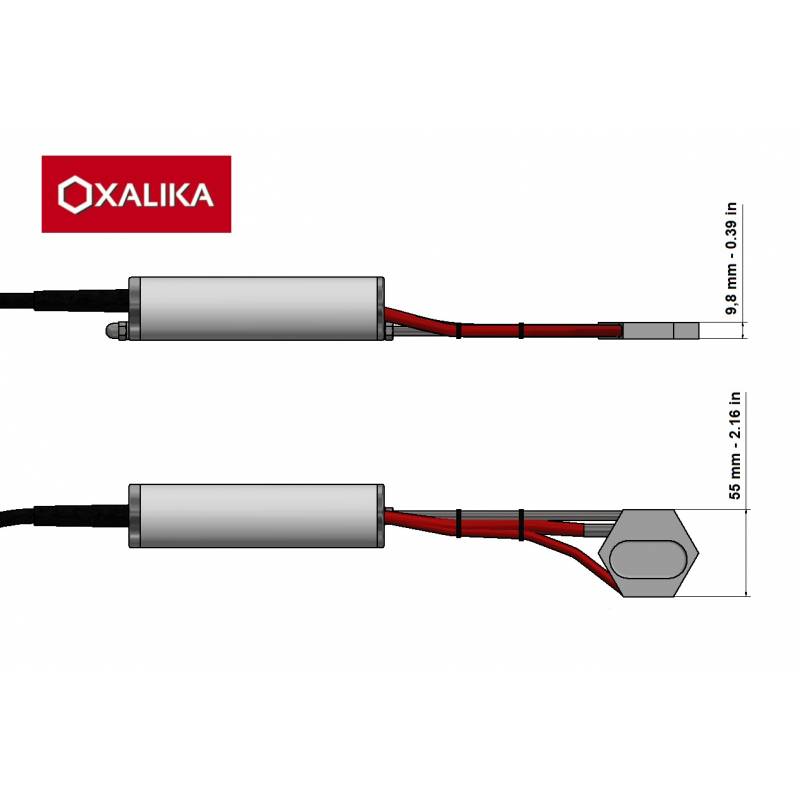

| Heating element | Two versions: 12×38 mm and 9.8×55 mm |
| Included | 2 measuring spoons |
