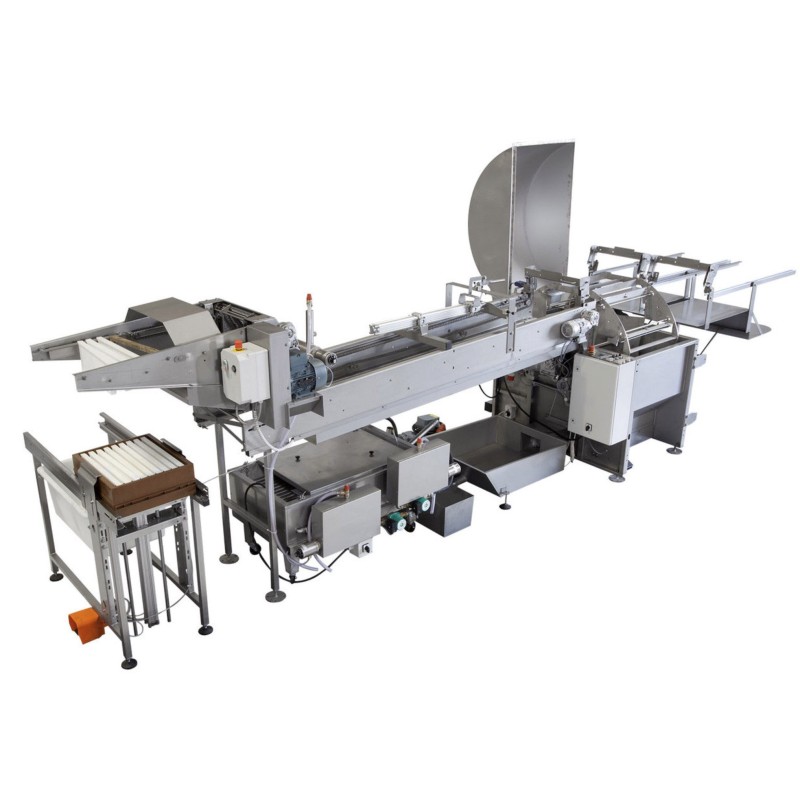

WET S1000 Automatic Honey Extraction Line

There comes a time in every beekeeper’s journey when growth forces you to rethink how you work. When you’re managing hundreds of hives and the nectar flow is concentrated into just a few weeks, you quickly realize that extraction can’t remain the bottleneck. That’s where the WET S1000 comes in: a complete extraction line designed for professional beekeepers who need performance, precision, and real automation—without compromising the quality of their honey.

An integrated system that coordinates the entire workflow
The S1000 isn’t just a large extractor; it’s an integrated production line that synchronizes every stage of the process—from lifting the frames out of the supers to pumping liquid honey into the settling tanks. A centralized Siemens IP54 control cabinet with clear text display and variable-speed drive allows one operator to manage the entire system efficiently and safely.

Extraction capacity
• 136 frames (25 mm – standard supers)
• 112 frames (35 mm – brood frames or deep supers)
This flexibility is one of the S1000’s biggest strengths. It can be configured for both super and brood frames by adjusting the chain pitch and spacing between the bars in the WT2 uncapping machine. However, there are some practical considerations to keep in mind.

Adaptation to different frame formats
One of the most common questions is whether the line can uncap both super and brood frames. The answer is yes—but with some important details. During manufacturing, the first step is to send a real sample of your frames and supers to the factory. The engineers then calibrate the spacing of the bars, the chain pitch, and the uncapping height to match your exact frame dimensions.

If you choose to process both brood and super frames, the manufacturer can adapt the system accordingly—but the operating speed will decrease slightly. When the bars are spaced wider to accommodate taller frames, the number of active contact points in the chain is reduced, and the feed must run more slowly. It’s simple physics: fewer active bars mean fewer frames per cycle.

In practice, the line maintains a clean and precise uncapping result, but with a small reduction in throughput. If your priority is maximum productivity and continuous flow, the best configuration is for super frames only. However, if you prefer versatility—for example, to process darker honeys or renew brood combs—the S1000 can be set up for both sizes with no issue. It just needs to be defined before production so the calibration is perfectly balanced.

Pneumatic D-Boxer and WT2 Uncapping Machine: Automation from the first frame
The pneumatic D-Boxer (new model) automatically removes the frames from the supers and places them one by one onto the WT2 chain feeder. The ergonomic pneumatic design reduces manual handling and keeps the workflow steady.
The WT2 can handle up to 12 frames simultaneously and includes:
• Hot water unit to maintain the optimal knife temperature.
• Second knife system (scratching knife) for opening deep or drone cells.
• Adjustable conveyor speed via variable-speed drive to suit comb type and temperature.
The result is a smooth, consistent uncapping process adapted to every honey type and comb condition.

Horizontal extractor S1000 with heated floor
The heart of the system. The S1000 horizontal extractor features automatic loading and unloading via a pneumatic feeding system and motorized chain conveyor, enabling continuous operation. While one batch is spinning, the next is already being loaded.
The heated floor keeps honey fluid throughout extraction—essential for dense honeys (heather, oak, eucalyptus) or cool environments. It also features a new-generation sliding control panel for easy cleaning and a two-stage discharge system to accelerate the extraction cycles.
Average extraction time: 12 ± 2 minutes depending on honey type. Filling takes about 2 minutes, so the WT2 must be synchronized to match that rhythm.

Collecting tank and smart pump
The extracted honey flows into a heated collecting tank that keeps it liquid until it’s pumped out. The HP10 impeller pump with a capacitive level sensor automates honey transfer to settling tanks, activating only when needed. Supplied with 5 m of food-grade hose (Ø51 mm).
If the customer already has a pumping system, this unit is optional and can be removed from the configuration, with the corresponding deduction in the final price.

Direct wax melter DS105-d
During uncapping, wax cappings can be automatically collected and melted in the DS105-d, a new-generation direct wax melter that recovers clean wax with no extra handling.
However, this module is also optional. If the customer already has a wax recovery system—such as a centrifuge or press—it can be removed or replaced, and the quotation adjusted accordingly.

Ergonomics and outlet flow
A roller conveyor with wall support organizes empty supers as they exit the line, keeping the workspace clear. The entire system is built in compliance with IEC 60204-1 electrical and safety standards.

Technical data
• Total power: 8 kW (without melter)
• Voltage: 3 × 400 V / 50 Hz – Control: 24 V DC
• Protection rating: IP 54
• Working temperature: 2 °C – 35 °C
• Dimensions: 700 × 240 cm
• Weight: 1,600 kg

Available options
• Pneumatic or chain-driven outlet conveyor, both in stainless steel.
• Pneumatic frame lifter (509 mm wide) for lifting full supers into the line.
• On-site installation (optional): the line can be shipped pre-assembled or installed by the customer. Factory installation is also available at an estimated cost of €2,200 + VAT.

An investment that transforms your workflow
If you operate between 200 and 500 hives and need to process several tons of honey in just a few weeks, the WET S1000 changes everything: more efficiency, less fatigue, and complete process control. It’s designed for professionals who make their living from beekeeping—not just practice it occasionally.
It may not be the largest line in the range, but it offers the best balance between capacity, reliability, and modularity. A professional-grade tool that lets you scale your production without losing the craftsmanship that defines your honey.
