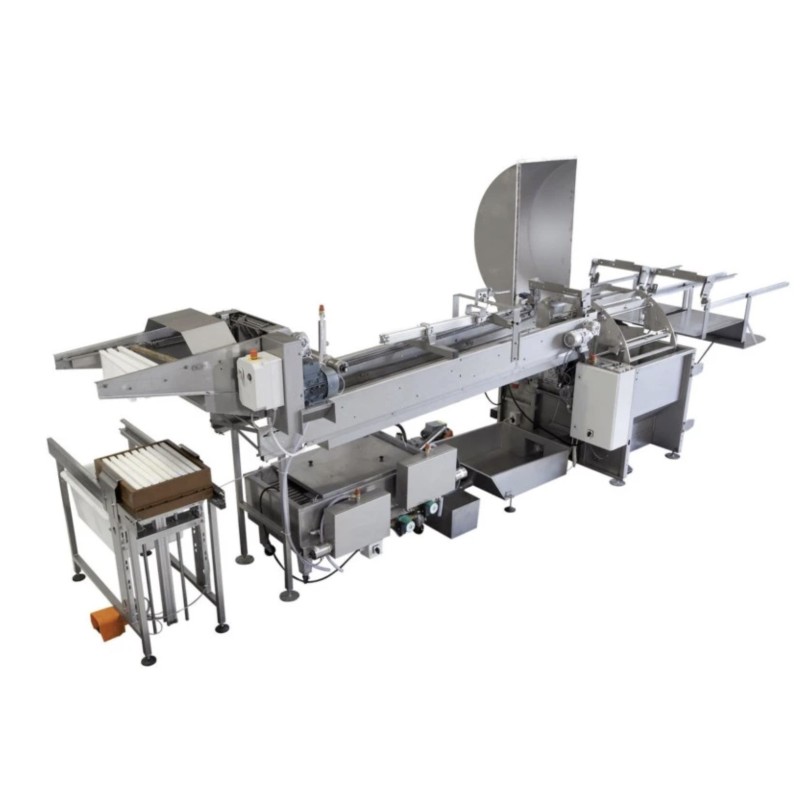

Complete automatic extraction line in 7.35 metres: pneumatic frame extractor, uncapping machine, horizontal centrifuge with heated bottom, tank and pump.
Between this and the big one there are €2,144.63, 32 frames and 1.35 metres of honey house. Those are the figures worth comparing. The S1000 costs €54,293.39 and is 8.70 metres long installed; this one is €52,148.76 and 7.35. If the honey house is tight, the metres decide before the money does.
01 · 32 FRAMES AND 1.35 METRES
On half supers, the S800 takes 128 frames of 25 mm and the S1000 160: 25 % more. On brood frames, 92 against 112: 22 % more. The big one takes about a quarter more frames per load for just over 4 % more money.
Translated into a decision: if the honey house fits 8.70 metres, the S1000 is the better buy whether you work supers or brood frames. The S800 makes sense when those metres are missing or when your volume does not call for more.
02 · SEND A SAMPLE OF YOUR FRAMES
Like every WET machine, this one is built to the measure of your frames: before anything, you send the maker a real sample of your frame and your super, and with it they set the chain pitch, the bar spacing and the height of the uncapper.
Lead times start when the sample arrives there, not when the order is signed.
03 · SUPER OR BROOD: IT COSTS RHYTHM
It can be configured for both formats, with one physical consequence: spacing the chain bars out to accept the taller frame leaves fewer support points and the advance has to be slower.
That is not a fault, it is arithmetic: about 20-25 % fewer frames go through, but not 20-25 % less honey, because each tall frame holds more. Volume in three weeks: set it up for supers only. Renewing brood comb or working dark honey: the versatility pays. If you change your mind, the uncapper chain can be replaced later; frames taller than 220 mm need a different uncapper (WT3), and that cannot be retrofitted.
04 · TWO MODULES CAN COME OUT
The pump with level sensor that fills the settling tank on its own is optional: if you already have pumping, it comes out and is deducted. The same with the cappings melter: if you already handle that with a press or a spinner, it leaves the line and the budget.
The core does not come out: pneumatic frame extractor, uncapper with hot-water heated knives, scratching knife and inverter, and a horizontal centrifuge with heated bottom, pneumatic gate and two-stage emptying.
05 · 7.35 METRES AND 1,300 KG
About 8.7 kW without the melter, 3 × 400 V with 24 V control, IP 54 protection and a working temperature of 2 to 35 °C. Installed it measures 735 × 185 cm and 2.30 m high with the lid open, and weighs 1,300 kg: measure the floor and the access first. The manufacturer recommends bolting it to the floor.
Assembly can be done by the maker's technician or by you with assistance. For the big line the maker puts that visit at about €2,200 plus VAT, so budget something similar and confirm it with the order.
06 · BEFORE YOU BUY
A frame sample, seven and a half metres of honey house and three-phase.
| ✓ A GOOD FIT | A honey house that cannot take the big one: a complete line in 7.35 m, run by one operator. |
| ⚠ IT IS BUILT TO YOUR MEASURE | A real sample of your frame and super must go to the maker before manufacture. Lead times start there. |
| ✕ THE BIG ONE GIVES MORE PER EURO | For €2,144.63 more, the S1000 takes 25 % more frames on supers and 22 % more on brood frames. |
| Type | Complete automatic extraction line |
|---|---|
| Capacity | 128 frames of 25 mm (half super) or 92 of 35 mm (brood) |
| Frame extraction | Pneumatic module lifting the frames out of the super |
| Uncapper | Hot-water heated knives, scratching knife and feed inverter |
| Centrifuge | Horizontal, heated bottom, pneumatic gate and two-stage emptying |
| Tank | Heated collector tank |
| Pumping | Pump with capacitive level sensor — optional and deductible |
| Cappings melter | Direct module — optional and deductible |
| Super output | Roller conveyor |
| Control | Siemens IP 54 panel with inverters; 24 V DC control |
| Power | About 8.7 kW without the melter |
| Supply | 3 × 400 V / 50 Hz |
| Working temperature | 2 to 35 °C |
| Electrical standard | IEC 60204-1 |
| Manufacture | Made to measure: a real sample of frame and super required |
| Dimensions | 735 × 185 × 230 cm (installed) |
| Weight | 1,300 kg |
| Manufacturer | Wet-Thermplate |
| Reference | S800 |
