Immersion Heater Stand (Ø250–480 mm) – LYSON

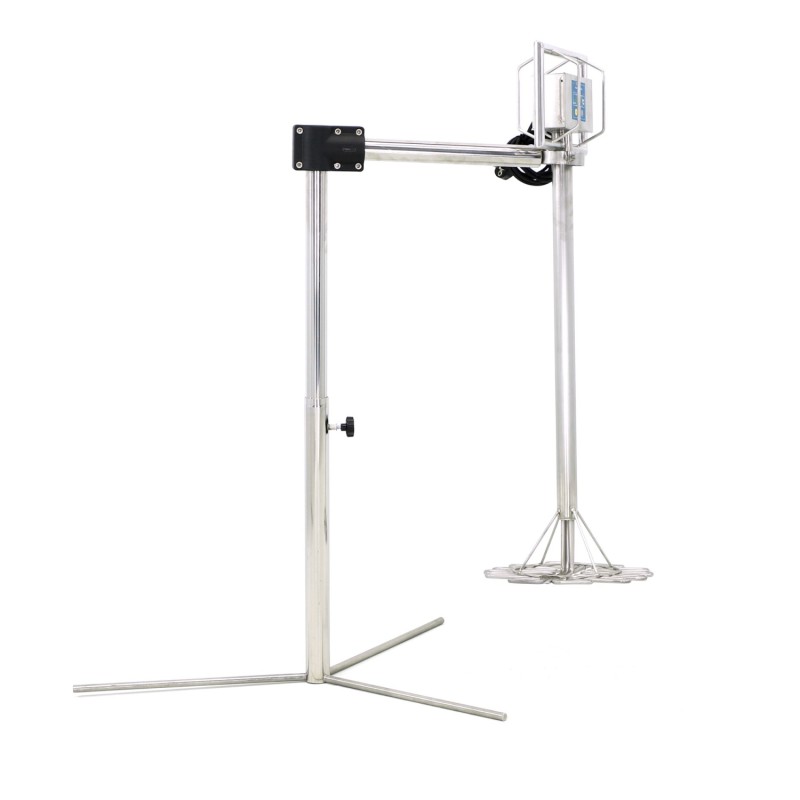

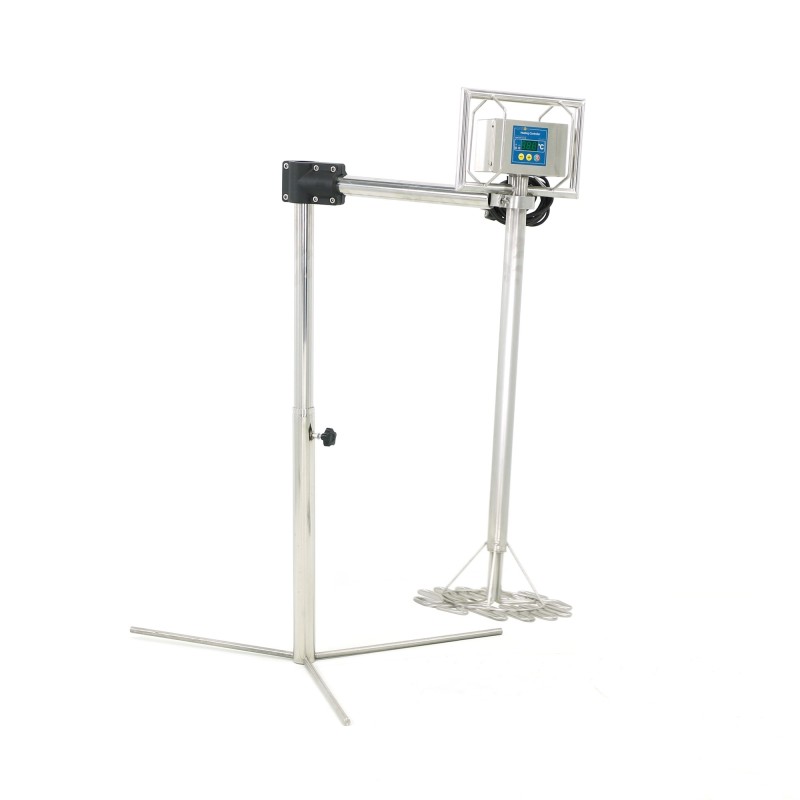

This adjustable vertical stand is specifically designed to safely and securely hold immersion heaters during the honey decrystallization process. It’s an essential tool when working with settling tanks or barrels, as it keeps the heater perfectly centered and upright, preventing contact with the walls and improving thermal efficiency.

Designed for practical and long-lasting use

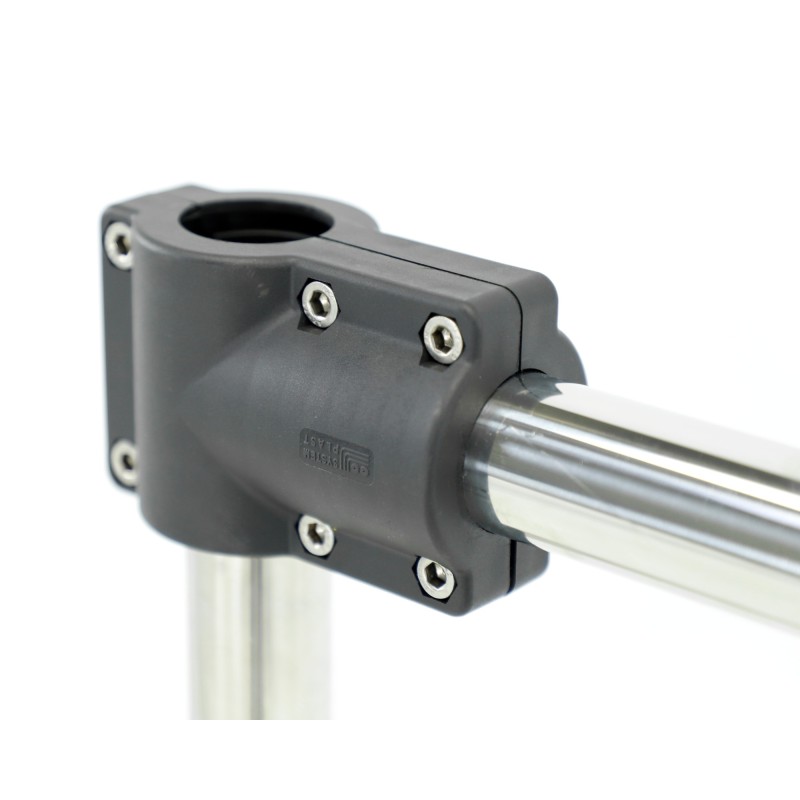

Made entirely of acid-resistant stainless steel (0H18N9), this stand guarantees excellent durability in the humid, sugar-rich environment of the honey house. It also includes a food-grade technopolymer connector, which prevents reactions with the heater’s steel and ensures a safe connection.

Its modular structure (with adjustable vertical and horizontal tubes) allows compatibility with various heater shapes, especially spiral or circular models between Ø250 and Ø480 mm, such as those offered by LYSON.

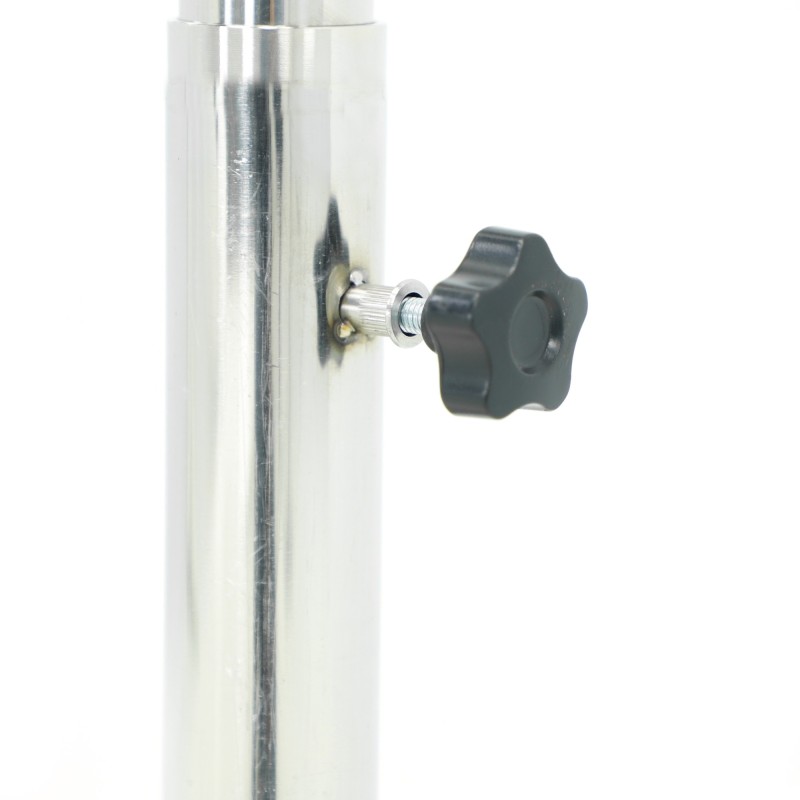

The height can also be easily adjusted via a locking knob, making it suitable for different container sizes—from small tanks to standard 200 L barrels.

Better control during decrystallization

This stand not only enhances safety during the process by preventing the heater from sinking or shifting, but also promotes a more even heat distribution, helping honey liquefy uniformly without hotspots or overheating.

With the heater held vertically and centrally, contact with wax residues or sediment typically found at the bottom of tanks is also minimized.

A simple but essential accessory

Though it may seem like a minor accessory, this type of stand can make a big difference in the organization and professionalism of your honey processing setup. Ideal for both small-scale and large-volume decrystallization workflows.

Tip: when using the stand with high-powered heaters (e.g., 1500 W or more), ensure the heater's cable has enough slack and that the head remains outside the tank for safe and easy monitoring.

Technical specifications

Stand material: acid-resistant stainless steel 0H18N9

Connector: food-grade technopolymer (durable and safe for food use)

Net weight: 5.4 kg

Compatibility: spiral-type heaters between Ø250 and Ø480 mm

Maximum stand height: approximately 130 cm (depending on setup)

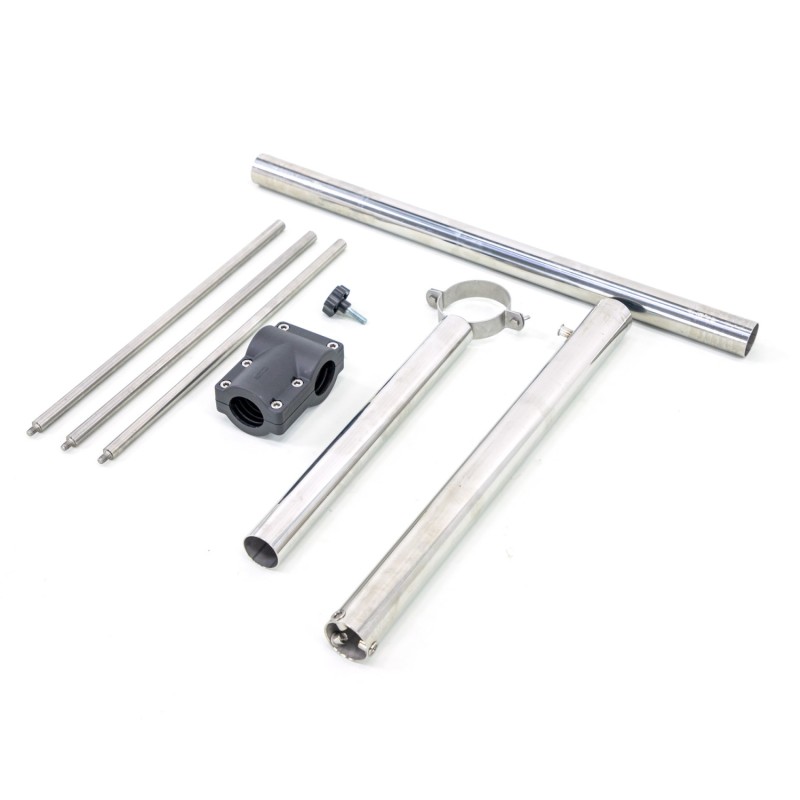

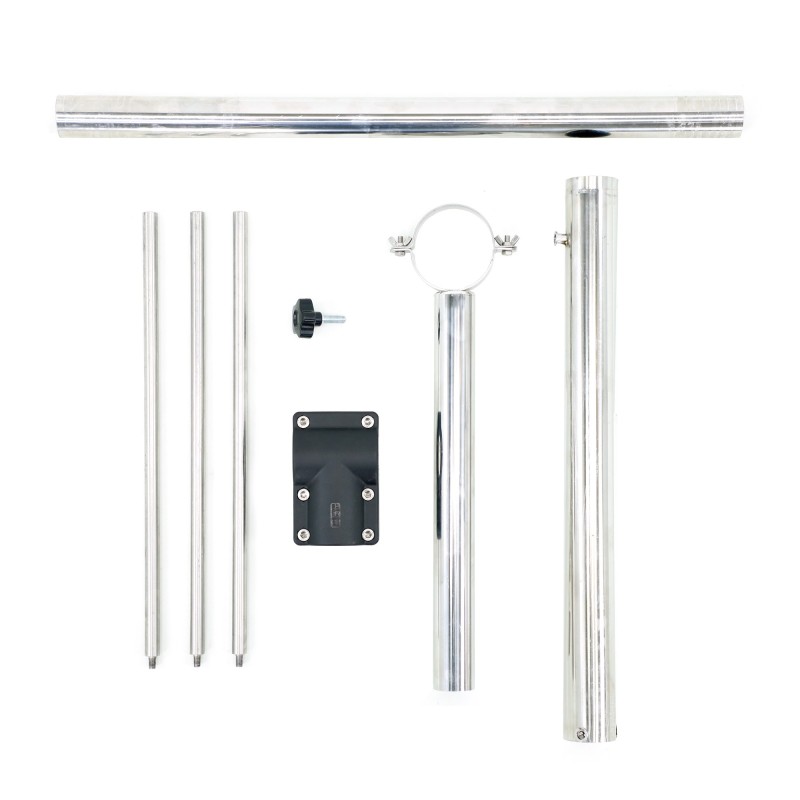

Included components:

• 3 tubular legs Ø15 mm
• 1 vertical tube Ø48 mm, 550 mm long, with adjustment knob
• 1 vertical tube Ø42 mm, 750 mm long
• 1 technopolymer connector
• 1 horizontal tube Ø42 mm, 400 mm long, with clamp

Cleaning advice: wash only with hot water and a soft cloth; avoid harsh chemicals
