Adjustable wheeled stand for ripeners and creamers

How many times have you had to force your back just to get the last bit of honey out of a settling tank or creamer? The tank is heavy, the floor is wet and you’re trying to tilt it just enough without having it slide or tip over. Not great for your back or for safety in the honey room.

This adjustable stainless steel stand is made exactly for that situation. It turns any settling tank, creamer, mixer or homogenizer into equipment that is easy to move and easy to empty down to the last drop, without awkward manoeuvres or extra effort.

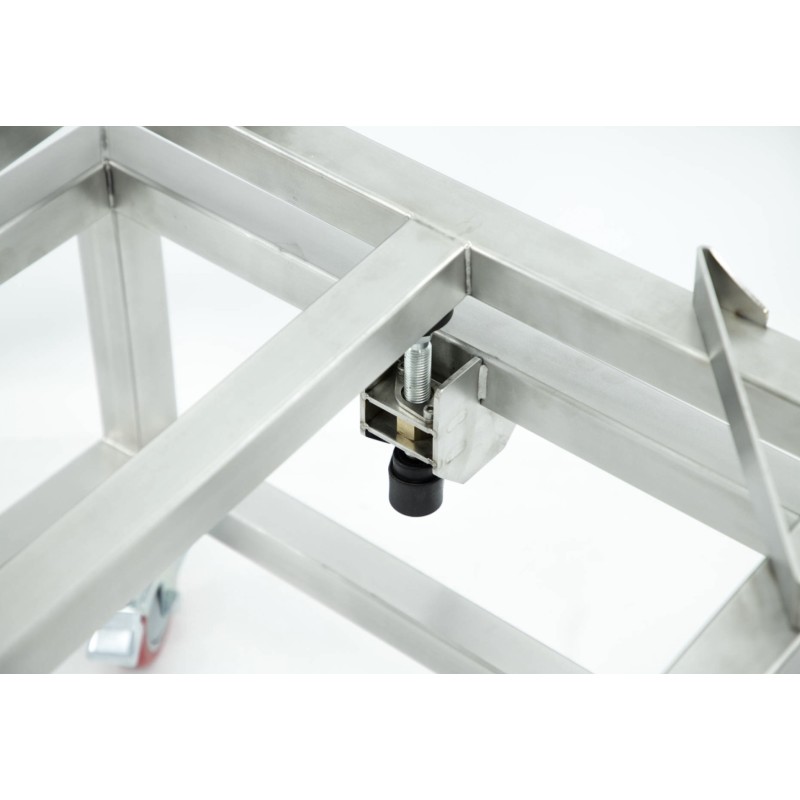

The upper platform has a screw-driven tilting system with a hand crank. By turning the handle you progressively lift one side of the tank until you get a working slope of about 3 % towards the outlet. That slight inclination is enough for honey, cream or mixes to flow by gravity so the bottom is practically dry, even with dense honeys.

The tank rests on a reinforced frame with perimeter stops that hold it firmly in place while you tilt. No more wooden wedges or unstable improvisations: the inclination is controlled, repeatable and safe.

The base runs on industrial swivel castors with brakes. This lets you move tanks that easily exceed 200–300 kg, rearrange the room according to the harvest, or lift the equipment to wash underneath, just as hygiene standards require.

Available diameters (to be selected via combinations)

• Ø 400 mm
• Ø 500 mm
• Ø 600 mm
• Ø 700 mm

Choose the diameter that matches the bottom of your settling tank, creamer, mixer, homogenizer or wax melter. It is compatible with Lyson equipment and with tanks from other brands, as long as the base is flat and the support ring matches the selected diameter.

Technical specifications

• Material: stainless steel frame and platform, food-grade, corrosion resistant and easy to clean.
• Emptying system: tilting platform with adjustable screw and crank, approximate inclination 0–3 % towards the outlet tap.
• Mobility: 4 industrial swivel castors with safety brakes to work without unwanted movement.
• Stability: reinforced frame and upper stops that hold the tank securely while tilting.

Practical tip: if you’re moving up to 200/300 litre tanks or working with several machines in the same room, this stand stops being a “nice extra” and becomes an ergonomic and safety tool you’ll use every single day.
