12 CHARACTERS | 30 × 15 MM PER CHARACTER |
19 × 3 CM OF LINE | PROPANE THE GAS IT NEEDS |

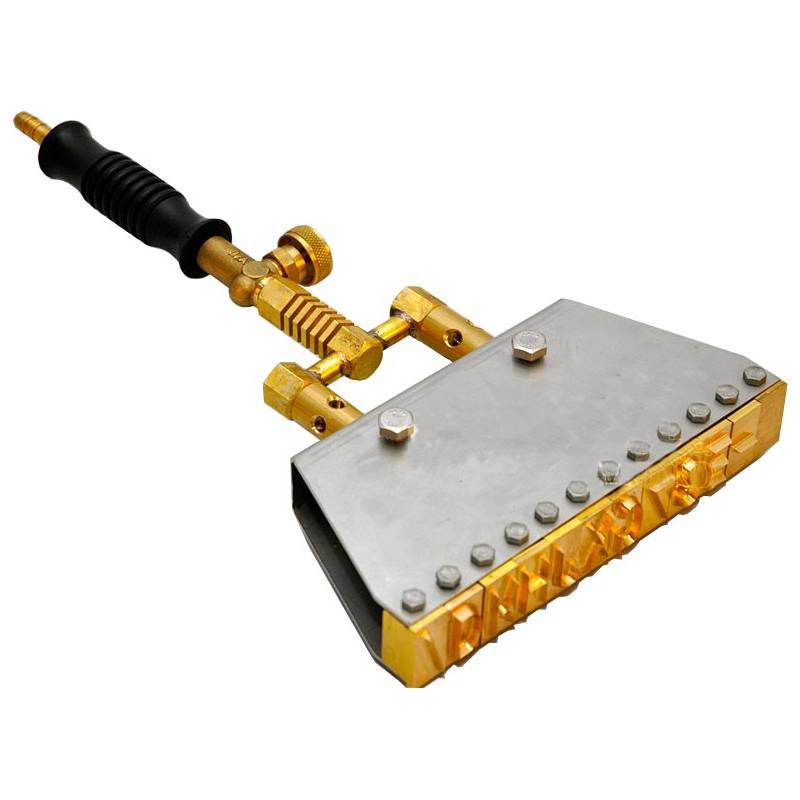

ANEL twin-burner branding iron with a head for 12 bronze characters, to burn your holding code into the timber or plastic of the hive.
The characters are bought separately, to match your code. And it runs on propane, not butane — the reason is below.
01 · WHY BURN IT IN

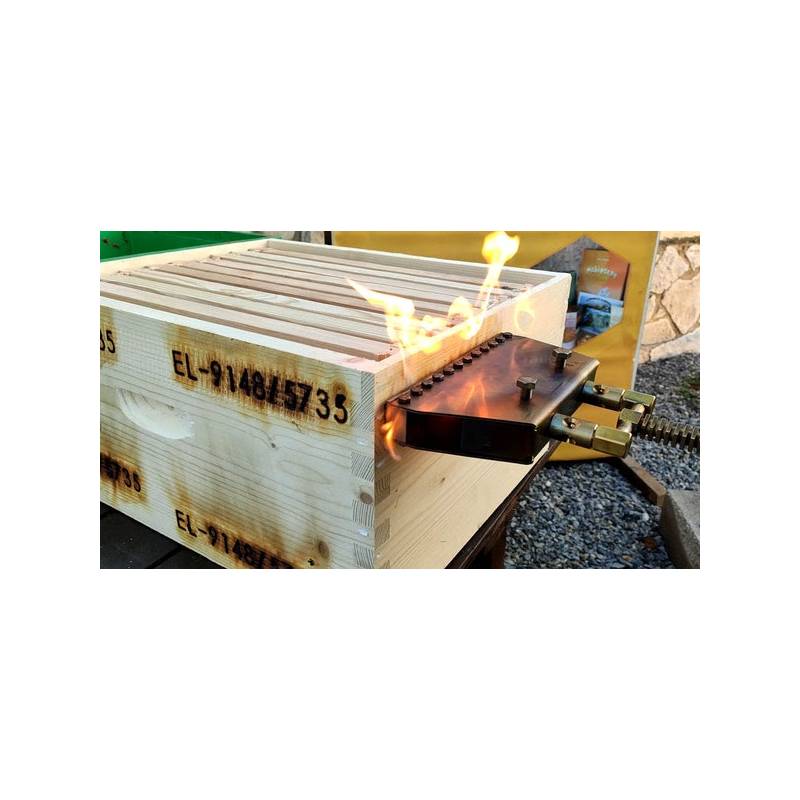

Where the rules require hives to carry the holding registration code permanently, the method has to survive weather. Anyone who has solved it with screwed-on plates or spray paint knows how it ends: two seasons later half a dozen boxes are unmarked again. Fire neither falls off nor fades — one pass and the mark stays. For the detail that applies to you — code format, deadlines, census — the authority is your local livestock office.
02 · THE TWELVE SLOTS

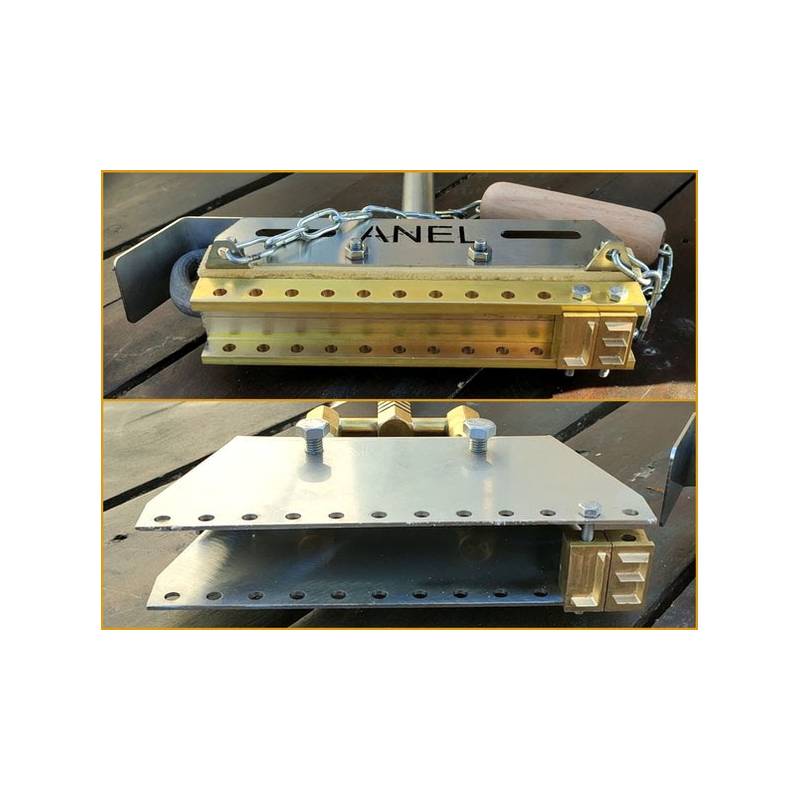

The head takes up to 12 bronze characters of 30 × 15 mm and leaves a marking line of roughly 19 × 3 cm. It will work with eight pieces fitted, but the maker’s recommendation is to fill all twelve: with every slot occupied the flame spreads evenly, the bronze block reaches a stable temperature and the burn comes out even from end to end. With fewer than eight the flame escapes at the sides and the mark comes out pale and patchy. If your code is short, fill the gaps with spacers or dashes: they cost little and change the result.
03 · PROPANE, AND THE REGULATOR
Two high-flow burners chill the cylinder fast, and butane stops vaporising at 0 °C: on a cool morning, or after a few minutes of continuous work, the pressure drops and the flame fades. Propane gasifies down to −44 °C and holds. The regulator matters as much: the tool calls for a 3 bar high-pressure one (16 bar inlet, 18 kg/h flow), and using anything else — a domestic kitchen regulator, for instance — gives out-of-range temperatures and, per the maker, voids the warranty. The hose must be gas-certified and 8 mm internal, with clamps. And before lighting up, soapy water on the joints: if it bubbles, there is a leak.
04 · WHAT YOU CAN MARK

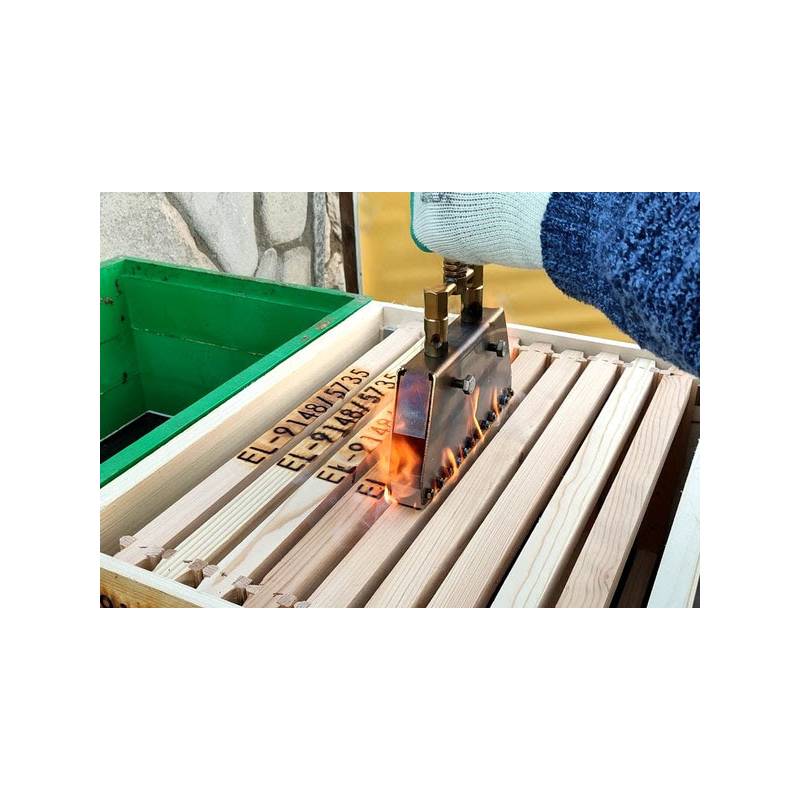

On timber it leaves a dark, deep burn. On plastic and polystyrene it works too, with a quick touch and without deforming the material. But there is a limit worth reading twice: do not brand a painted, treated or impregnated surface. The maker warns of a risk of ignition, and it makes no difference whether it is wood or plastic. The right order is brand first, paint afterwards, on bare material.
05 · BEFORE YOU BUY
The box holds the branding tool: the characters, the regulator, the hose and the cylinder are all separate. Work out your character set before ordering — digits, letters and whatever dashes or spaces your code needs — because that is what most often delays getting started.
| ✓ FITS | Timber, plastic and polystyrene that is unpainted and untreated. |
| ✕ DOESN’T FIT | Painted, varnished or impregnated surfaces: risk of ignition. |
| ⚠ NOT INCLUDED | Bronze characters, regulator, hose and gas cylinder. |
⚠ PRECAUTIONS
You are working with gas and a red-hot block. Check the joints with soapy water before every session and do not light up if they bubble. Never brand painted, treated or impregnated surfaces: there is a risk of ignition. Do not leave the tool lit unattended, and let the head cool before you put it away.
| Reference | AN1050LPG-RD12-ST |
|---|---|
| Brand | ANEL |
| System | Twin gas burner |
| Slots | 12 characters · eight is the working minimum |
| Character size | 30 × 15 mm, bronze |
| Marking line | Roughly 19 × 3 cm |
| Gas | Propane (vaporises down to −44 °C) |
| Regulator | High pressure 3 bar · 16 bar inlet · 18 kg/h |
| Hose | Gas-certified, 8 mm internal, with clamps |
| Surfaces | Untreated timber, plastic and polystyrene |
| Not included | Characters, regulator, hose or cylinder |
Data sheet
Specific References
1 file available
Branding directly over a painted surface is not recommended. ANEL warns that there is a risk of ignition, especially with wood or plastic that has been impregnated with flammable substances or painted. For safety, brand the bare material before applying paint or treatment. Always use the branding iron outdoors, wearing heat-resistant gloves and with a suitable fire extinguisher within reach.
