TO 43 FINISH · GPI 2010 | 40 LIDS PER PACK |

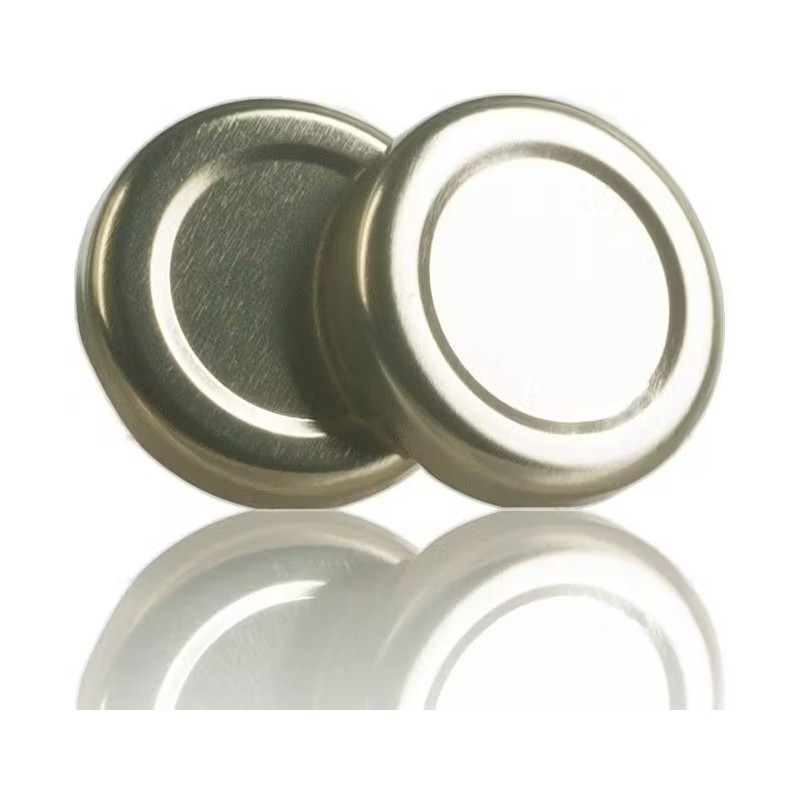

The smallest finish in the catalogue: a 43 mm gold twist-off lid, in packs of 40, for ounce jars and the 300 g jar.
Four lugs on 0.14 mm tinplate, with a food-grade sealing compound.
01 · COMPATIBILITY
It closes the 41 ml B1.5 ounce jar and the 33 ml B1 ounce jar. The pack of 40 is meant for the two ounce jars, sold in packs of 40, so the sum comes out even there; the Diamond comes in tens. And mind the Diamond family: the 300 g shares this 43 finish but has a tall neck and takes the deep skirt, and the 500 g is TO 48.
02 · CLOSING A SMALL FINISH
At 43 mm the lug travels a very short way along the glass ramp, so the movement ends at once and it feels as if you must force it home. You do not: the seal is made by the compound against the rim, and tightening only has to bring the lid to its stop. Turn until you feel it and let go. Over-tightening 0.14 mm metal deforms the skirt, and a deformed lid never seats properly again. The whole travel is a quarter turn: if it grates or feels like the thread has stripped, lift the lid off and set it down flat again — there is no thread to strip, a lug has ridden over its ramp.
03 · IF IT DOES NOT FIT

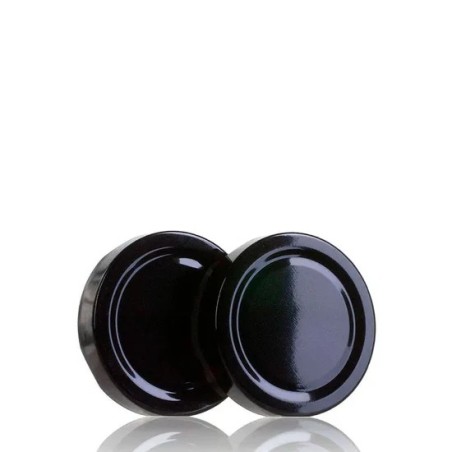

Some 43 mm jars have a longer neck, and there is a different lid for those: the deep-skirt TO 43 H14, which in our range comes in black only, in packs of 20. Same diameter, same four lugs, deeper skirt. Put this one on a deep-finish jar and it will not seat however far you turn. And if the jar is reused from commercial preserves, measure first: the finish may match while the rim already carries the mark of its first closure.
04 · BEFORE YOU BUY
This is the lid of gift and tasting formats — wedding favours, samples, table gifts — not of the everyday retail jar: for that, look at TO 63 and TO 77. For production runs, the full box of this reference is 3,100 lids.
| ✓ FITS | 41 ml B1.5 ounce and 33 ml B1 ounce. |
| ✕ DOES NOT FIT | Both Diamonds: the 300 g takes the deep skirt and the 500 g is TO 48. |
| LTA reference | PACK40-TO43D |
|---|---|
| System | Twist-Off TO 43 standard skirt, GPI 2010 |
| Contents | 40 lids |
| Outer colour | Gold |
| Configuration | Four lugs |
| Material | Tinplate from 0.14 mm, with food-grade sealing compound |
| Pasteurisation | Up to 100 °C for 60 min |
| Nominal unit weight | 4.42 g (±5 %) |
| Storage | +5 to +35 °C · max. 70 % relative humidity · up to 2 years |
