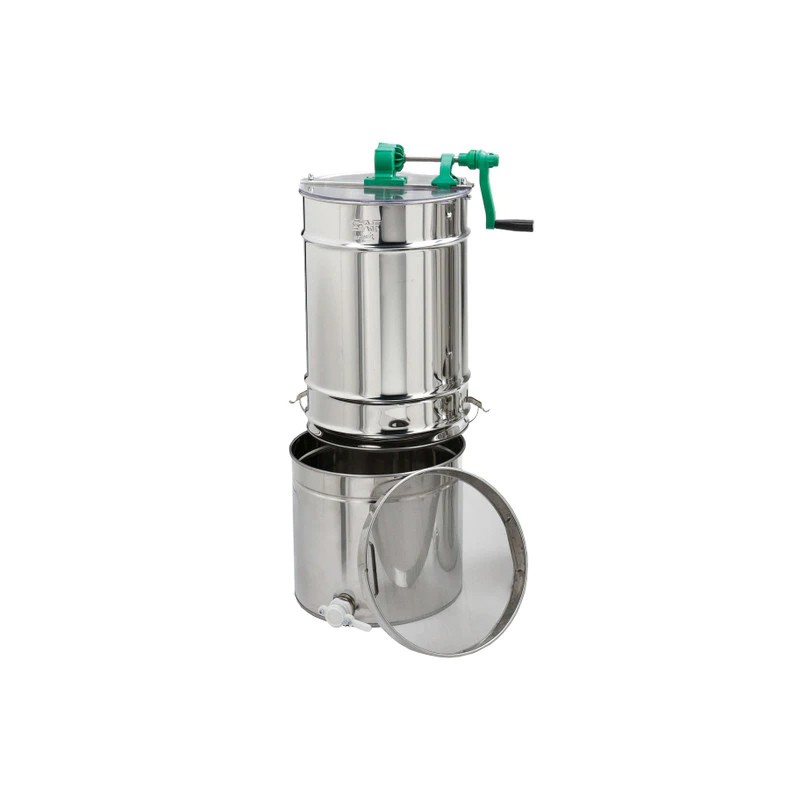

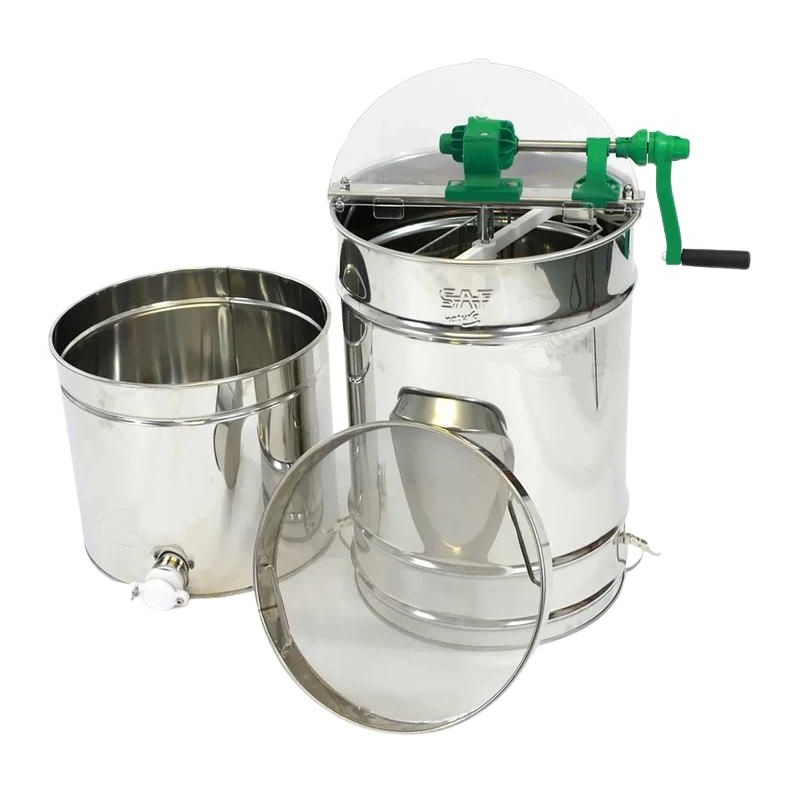

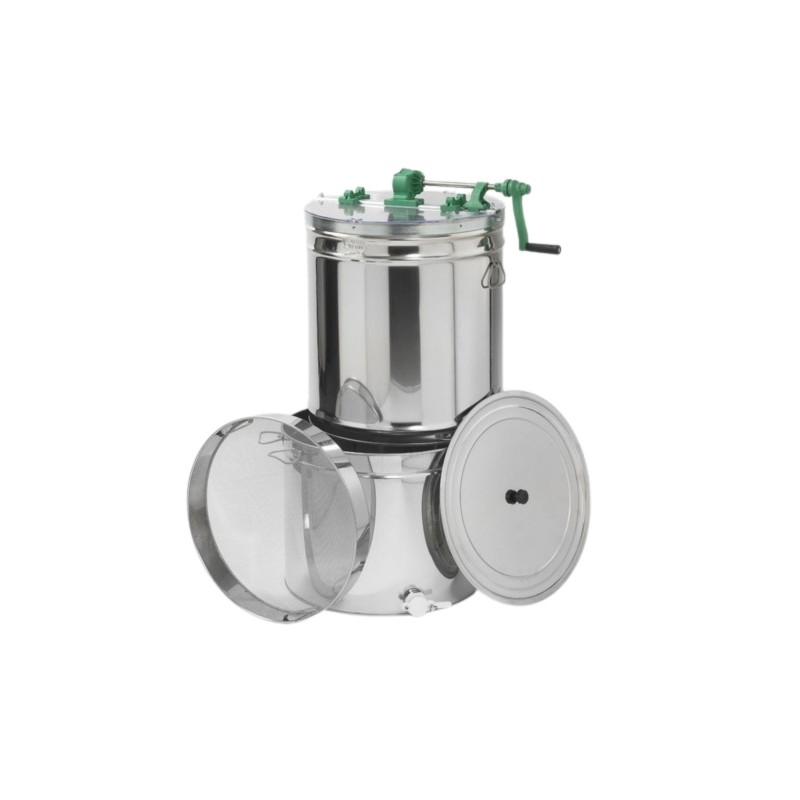

Manual honey extractor 4-frame ESPACE/RACING with 100 kg integrated honey tank

01 · RIPENING

Extraction and maturation in a single unit

The upper body is the 4-frame tangential extractor; the lower body is a 100 kg honey tank with a stainless-steel lid and outlet gate. The two modules hook together laterally — and unhook for cleaning or storage. The drum bottom is conical and perforated: spun honey pools at the tip, passes through the integrated filter, and drops straight into the honey tank. You save the bucket transfers, the external filter and the floor space of a stand-alone honey tank.

02 · DRIVE

RACING manual drive — steel helical gear

The crank drives the tangential basket through a steel helical gear — no belt, no friction drive. You feel it: motion comes on smoothly with no jumps or backlash, and the gear holds its precision season after season under load. The tangential basket takes 4 Langstroth frames or shallow supers, extracting one face at a time with the frame fully supported against the mesh: it protects the comb with dense honeys (heather, chestnut, ripe eucalyptus) where small radials would let unsupported frames blow out.

03 · CONSTRUCTION

18/10 food-grade stainless steel build

Drum, basket, conical bottom, honey tank and contact hardware in 18/10 stainless steel (equivalent to AISI 304 food grade) — it shrugs off organic acids, propolis and CIP cycles without corrosion. The lids are clear polycarbonate with secure latches, letting you watch the spin without opening up and without splatter. Food-grade plastic gate Ø 40 mm with a stainless-steel reinforcement ring. The honey tank lid is stainless with ergonomic handles — lifts clean, drops back in place without force.
