Manual tangential honey extractor 4 frames LYSON BASIC

01 · FOUR FRAMES, EIGHT FACES

How tangential extraction goes

The frame lies flat against the wall, so it empties one face at a time and has to be turned. The sequence that saves the comb is the usual one: first face at low speed and not fully out, turn, spin the second right out, turn back and finish the first.

In exchange for that double handling, the force on the honey is greater than in a radial. That is what lets a small machine deal with brood frames and thick honeys.

02 · WHICH FRAMES GO IN

And which one is a squeeze

The cage is in stainless steel rod and takes several formats:

Layens is the one that needs a knack: they do go in, but two placed on top of another two. Worth knowing before you buy, not standing in front of the extractor.

03 · BALANCE THE LOAD

What makes a light extractor dance

The drum is 0.6 mm and the whole thing is light, which is what makes it portable and affordable. The trade-off is that an uneven load shows: four frames of very different weights make the machine vibrate and walk across the floor.

Load similar weights opposite each other and bring the speed up gradually. And work on a firm, level floor; if you are going to extract a lot, anchor it.

04 · THE BRAKE ON THE CRANK

Stopping without touching

The geared drive with brake is what lets you bring the drum down and stop it without putting a hand in. With four loaded frames there is plenty of inertia to make any other method a bad one.

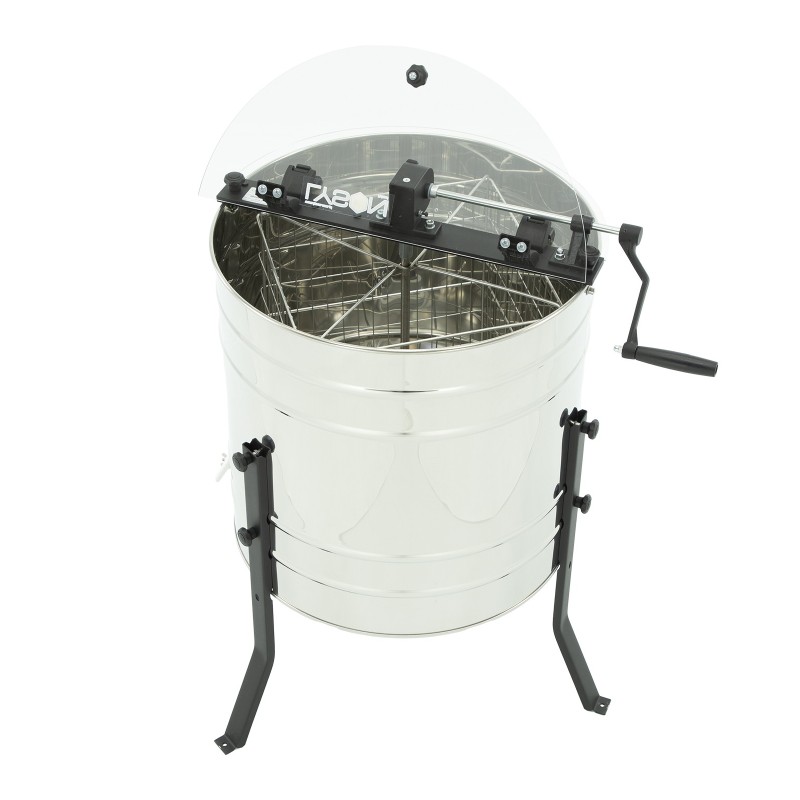

It also does what matters most in tangential work: controlling the speed of the first face. The polycarbonate lid, clear and removable, shows when a frame is dry without opening up.

05 · MOTORISING IT LATER

No need to change machine

It starts out manual but takes a motor later, with LYSON's own kit or a universal 110 W motor. That is the reason to buy it even if you expect to grow.

The tap is DN40, that is 1½" — the standard size, so fittings and filters are easy to find. The drum and everything touching the honey are stainless steel.

06 · BEFORE YOU BUY

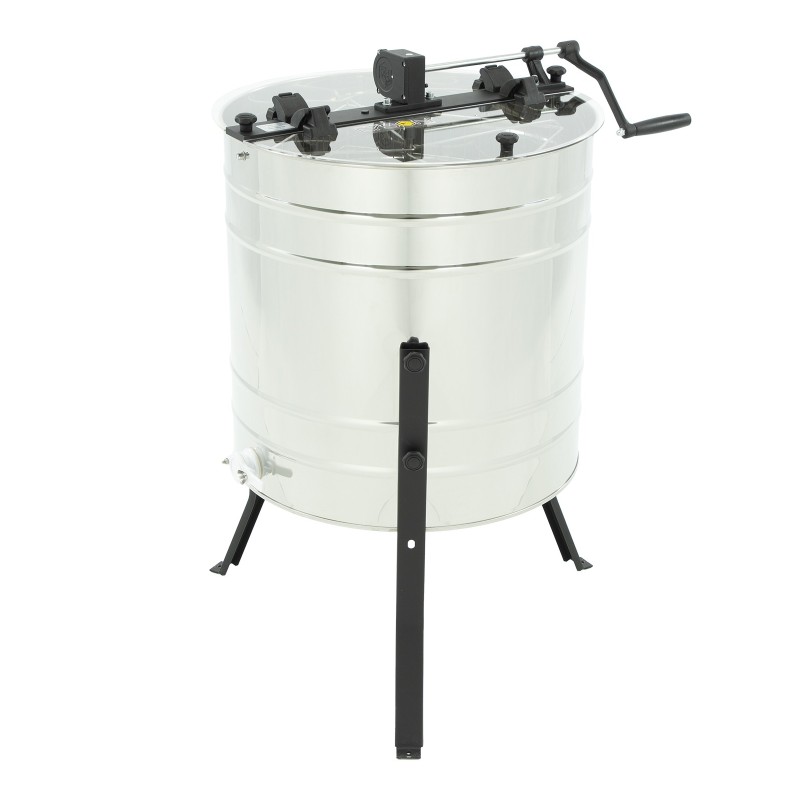

This is the extractor with its legs, lid and tap:
