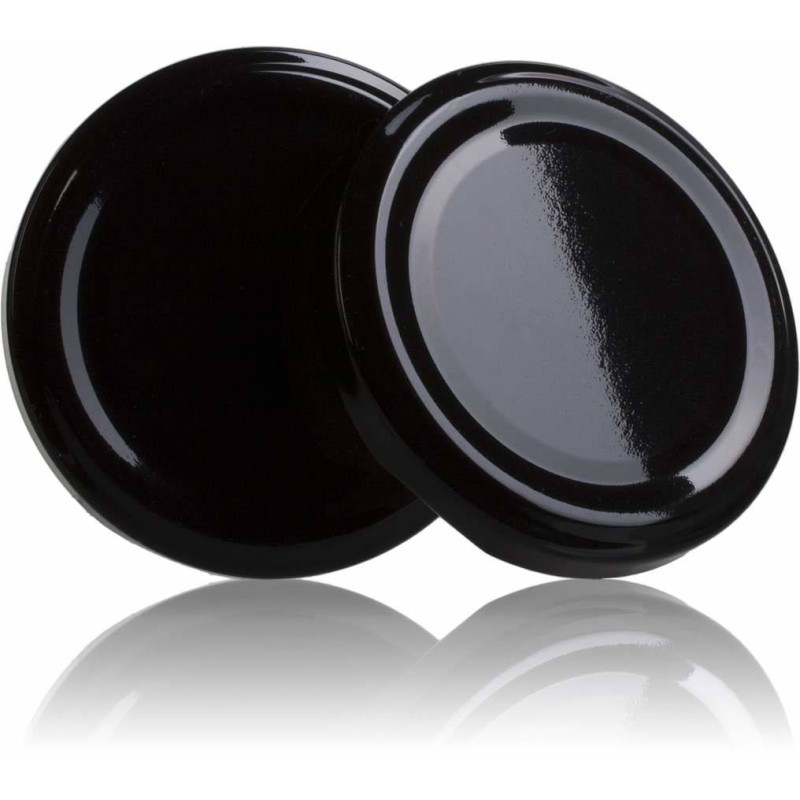

Pack of 25 four-lug TO70 metal Twist-Off lids with a gloss-black finish and low skirt. Made for food glass jars with a GPI 2030 finish.
The technical data sheet documents pasteurisation at up to 100 °C for 60 minutes. The jar-finish geometry matters more than the outside diameter you can measure with a ruler.
01 · COMPATIBILITY
These four-lug lids work with a TO70 Twist-Off finish following the GPI 2030 profile. Do not choose them from the outside diameter alone: similar jars may use different heights, lugs and thread profiles. Confirm the finish code or test lid and jar before packing the whole batch.
02 · A SOUND CLOSURE
Check the glass rim for chips, product residue and moisture around the sealing area. Set the lid straight and apply the torque specified for the jar and capping line. The final closure depends on the lid–jar combination, filling conditions, temperature and process; the lid alone cannot guarantee a hermetic seal or vacuum.
03 · PASTEURISATION
The specification covers pasteurisation at up to 100 °C for 60 minutes. This is not a general authorisation for higher-temperature sterilisation: a more demanding process must be validated for the exact lid, sealing compound, jar and working pressure.
04 · DESIGN AND CHOICE
The even black finish provides a restrained look and lets the honey colour or label remain the main visual element. This is a low-skirt GPI 2030 TO70; it does not fit the high-skirt Deep GPI 2035 finish even though the nominal diameter is the same.
FROM THE APIARY
A Twist-Off does not screw on like a bottle cap: the four lugs ride up a short ramp and the whole closure is a quarter turn. Sit it flat until you feel it settle, turn to the stop and leave it there: carrying on does not seal better, it bends the lug and leaves the jar impossible to open. If it grates or feels like the thread has stripped, lift it off and set it down again — there is no thread to strip, a lug has ridden over its ramp.
05 · BEFORE YOU BUY
Keep the lids packaged, clean and dry between 5 and 35 °C and at no more than 70% relative humidity. The sheet states a storage life of up to two years. Do not place weight on them, and reject rusty, dented or distorted units before filling. The pack contains 25 lids; jars and capping equipment are not included.
| Reference | PACK25-TO70N |
|---|---|
| Pack size | 25 lids |
| Closure | TO70 Twist-Off, four lugs, GPI 2030 finish |
| Material | Tinplate; minimum thickness 0.16 mm |
| Finish | Black, low skirt |
| Documented use | Closing food glass jars |
| Pasteurisation | Up to 100 °C for 60 minutes |
| Storage | 5–35 °C; maximum 70% relative humidity; up to 2 years |
