FUEGO® manual universal extractor, 4 frames

585 .00 €

SN_74/G

FUEGO® manual universal extractor, 4 frames

Name: FUEGO® manual universal extractor, 4 frames
Brand: SAF NATURA
SKU: SN_74/G
Price: 585 EUR
Availability: InStock
Rating: 5 (3 reviews)

See 3 Customer Reviews

Share in WhatsApp

585 .00 €

Tax included

Stock

Manual SAF Natura FUEGO SN_74/G tangential extractor: 4 Layens, 4 Dadant Blatt or 8 half-size Dadant Blatt frames. Ø640 × 680 mm stainless drum, conical bottom and 6/4" valve. No motor.

585 .00 €

Tax included

Stock

Quantity

Select options Options

Express Shipping

Return Guarantee

Safe payment

Details of FUEGO® manual universal extractor, 4 frames

Ø 640 mm

DRUM

680 mm

DRUM HEIGHT

4 / 4 / 8

LAYENS · DADANT · 1/2 DADANT

4 mm

CLEAR LID

Manual FUEGO tangential extractor for 4 Layens, 4 Dadant Blatt or 8 half-size Dadant Blatt frames.

The basket works one face of the comb at a time, giving direct control over small batches and large frames while requiring every frame to be turned to complete extraction. The exact reference is SN_74/G; “universal” does not mean every frame size.

01 · COMPATIBILITY

Three loads specified by SAF Natura

The official configuration accepts 4 Layens, 4 Dadant Blatt or 8 half-size Dadant Blatt frames. The current manufacturer specification does not list Langstroth. For non-standard frames, compare height, width and thickness with the basket before ordering.

02 · EXTRACTION

Start slowly and turn the frames between faces

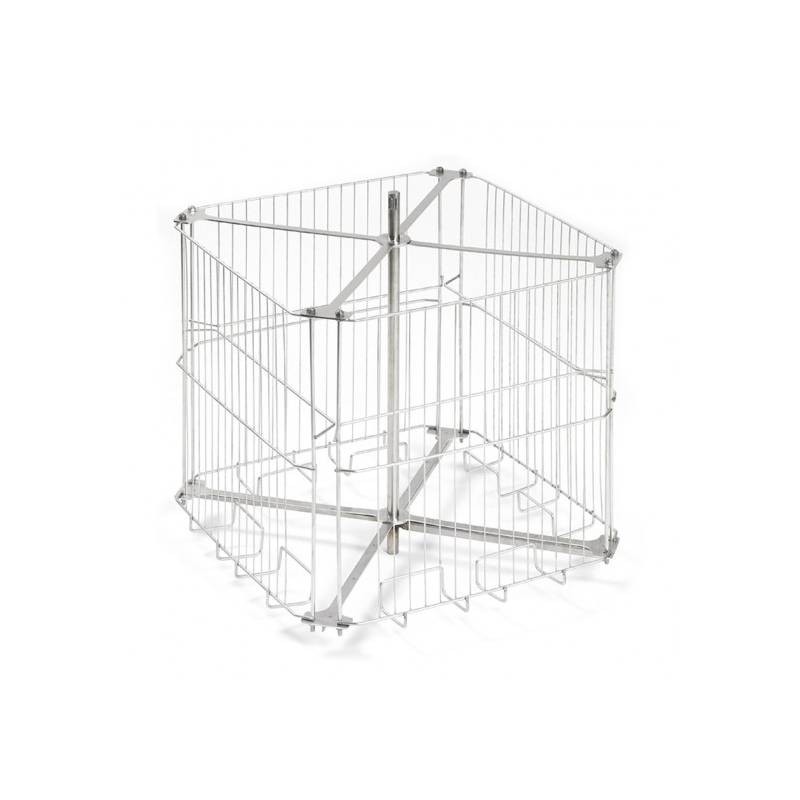

In a tangential basket the comb sits parallel to the drum wall. Extract the first face at moderate speed, turn the frames and work the second; finish the first again if viscosity or load requires it. Balance frames of similar weight and avoid forcing new or distorted comb.

03 · BUILD

Stainless drum, conical bottom and outlet 400 mm above floor level

The acid-resistant stainless-steel drum is 640 mm in diameter and 680 mm high. A 4 mm clear acrylic lid allows observation; the conical bottom leads to a 6/4" plastic flap valve with its axis 400 mm above the floor. Legs and braces are powder-coated steel.

04 · BEFORE YOU BUY

Manual drive; legs are supplied for assembly

Lid, valve, handle and self-assembly legs are included. There is no motor, controller or automatic cycle. The manufacturer states 1130 × 630 × 780 mm and 27 kg assembled.

✓ FITS	4 Layens, 4 Dadant Blatt or 8 half-size Dadant Blatt frames.
✕ DOESN’T FIT	Langstroth or any frame size that has not been checked.
⚠ NOT INCLUDED	Motor, controller or automation; the legs require assembly.

SPECIFICATIONS

Brand and reference	SAF Natura FUEGO · SN_74/G
System	Tangential, manual drive
Declared capacity	4 Layens · 4 Dadant Blatt · 8 half-size Dadant Blatt
Drum	Ø 640 × 680 mm · acid-resistant stainless steel
Lid	4 mm transparent acrylic
Bottom and outlet	Conical bottom · 6/4" plastic flap valve · axis 400 mm above floor
Assembled unit	1130 × 630 × 780 mm · 27 kg according to manufacturer
Contents	Lid, valve, handle and self-assembly legs

In stock 4 Items

Data sheet

Type: Universal
Functionality: Manual
Basket type: Tangential

Documentation for FUEGO® manual universal extractor, 4 frames

2 files available

CERTIFICACIÓN DEL MATERIAL SAF (583.2KB)

Manual Extractores SAF - Español (2.5MB)
