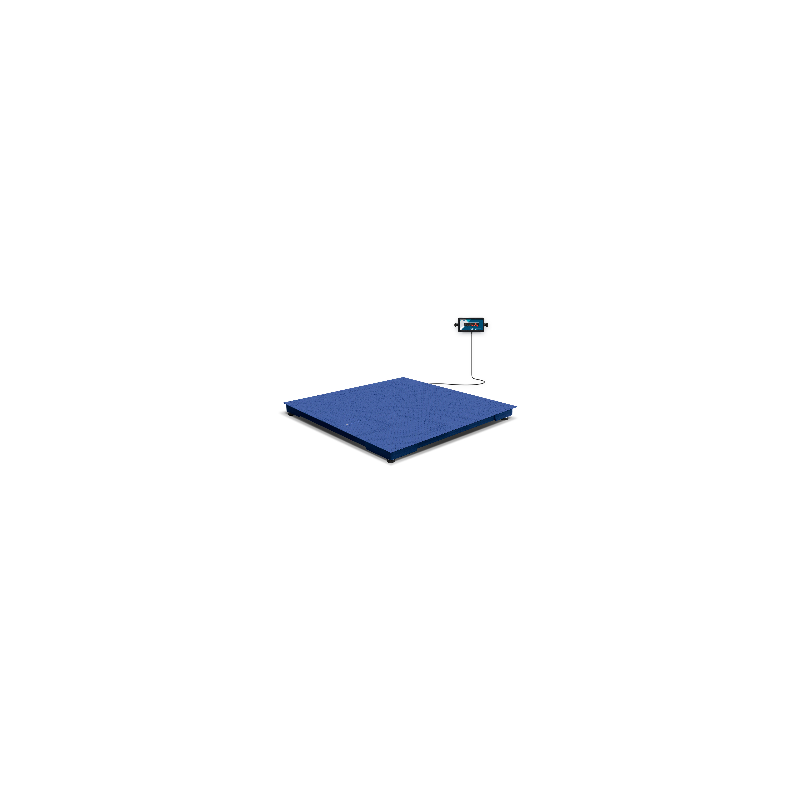

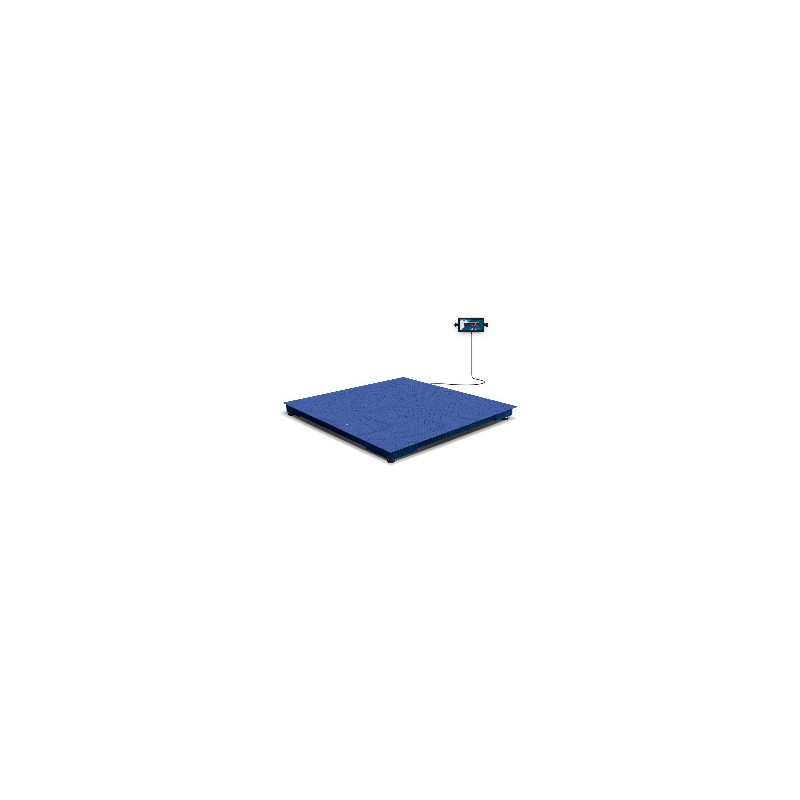

Heavy-duty floor scale for pallets and large loads. Diamond steel deck with epoxy coating, 4 IP67 load cells, TX indicator with 4 m cable. 1500 kg capacity, 200 g readability, 80+ h Ni-MH battery, tare, accumulation and piece counting.
1500 kg floor scale with a 1200 × 1000 mm platform: a whole euro pallet fits on it, with room to spare.
The measurement that decides is the platform, not the capacity. A euro pallet is 1200 × 800 mm, so on these 1200 × 1000 it goes on whole and with clearance at the sides. The 1500 kg are five 300 kg honey drums or a loaded pallet of supers: capacity runs out well after space does.
01 · WHAT IT IS BUILT FOR

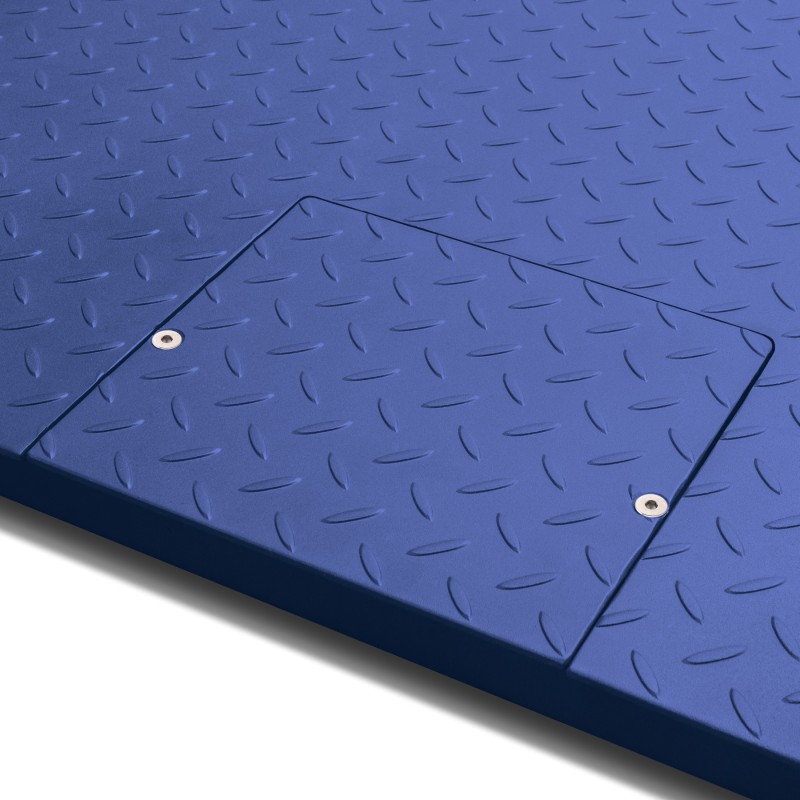

The platform is anti-slip diamond-plate steel with baked epoxy paint and sandwich construction, which is what keeps it rigid when a pallet truck comes in from one side. The four load cells are class C to OIML R-60, in nickel-plated steel with IP67 protection: they take the damp and the dust of a real warehouse.
The indicator is ABS with IP65 protection and a 4 metre cable, so it goes wherever it is least in the way. It gives a stable weight in under two seconds, which is what lets you move pallets on and off without waiting in front of the screen.
02 · EIGHTY HOURS OFF THE MAINS
It carries a Ni-MH battery with over 80 hours of autonomy, and it recharges while it works connected to the mains. In practice that means you can take it out to the dock or the yard to weigh a delivery without hunting for a socket.
The functions are the ones actually used: weight accumulation with a running total, piece counting by sampling, tare to read net in boxes and pallets, and a digital filter that averages when the load moves.
03 · THE 200 GRAM RESOLUTION
With 1500 kg of full scale, the resolution is 200 grams. That is the normal ratio on a floor scale and it is worth keeping in mind: this is not for adjusting 250 g jars or weighing doses.
A bench balance does that. Here what you pay for is being able to put a pallet on it and have the number in two seconds, day after day.
04 · BEFORE YOU BUY
One measurement, one socket and one optional accessory.
| ✓ FITS | Euro pallets (1200 × 800) on a 1200 × 1000 mm platform, up to 1500 kg. Surface or recessed installation. |
| ⚠ RAMP SOLD SEPARATELY | For going up and down with a pallet truck there is the RM-10 ramp (reference 70190), bought separately. |
| ✕ NOT A PRECISION SCALE | 200 g resolution: no use for weighing jars or doses. A bench balance does that. |
| Model | TX Tiger 1210 - 1.5 T |
|---|---|
| Capacity | 1500 kg |
| Resolution | 200 g |
| Platform | 1200 × 1000 mm, diamond-plate steel with baked epoxy paint |
| Overall dimensions | 1210 × 1010 × 150 mm |
| Load cells | 4 × H8C, class C (OIML R-60), nickel-plated steel, IP67 |
| Indicator | ABS with IP65 protection and 4 m cable |
| Stable reading | In under 2 seconds |
| Battery | Integrated Ni-MH, over 80 hours of autonomy |
| Functions | Accumulation with memory, counting by sampling, tare and digital filter for moving loads |
| Supply | 220 V, 50 Hz |
| Working temperature | 0 °C to +40 °C |
| Weight | 64 kg the platform (76 kg packed) |
| Installation | Surface or recessed |
| Reference | TXTIGER-1210-15T |
Heavy-duty floor scale for pallets and large loads. Diamond steel deck with epoxy coating, 4 IP67 load cells, TX indicator with 4 m cable. 1500 kg capacity, 200 g readability, 80+ h Ni-MH battery, tare, accumulation and piece counting.
