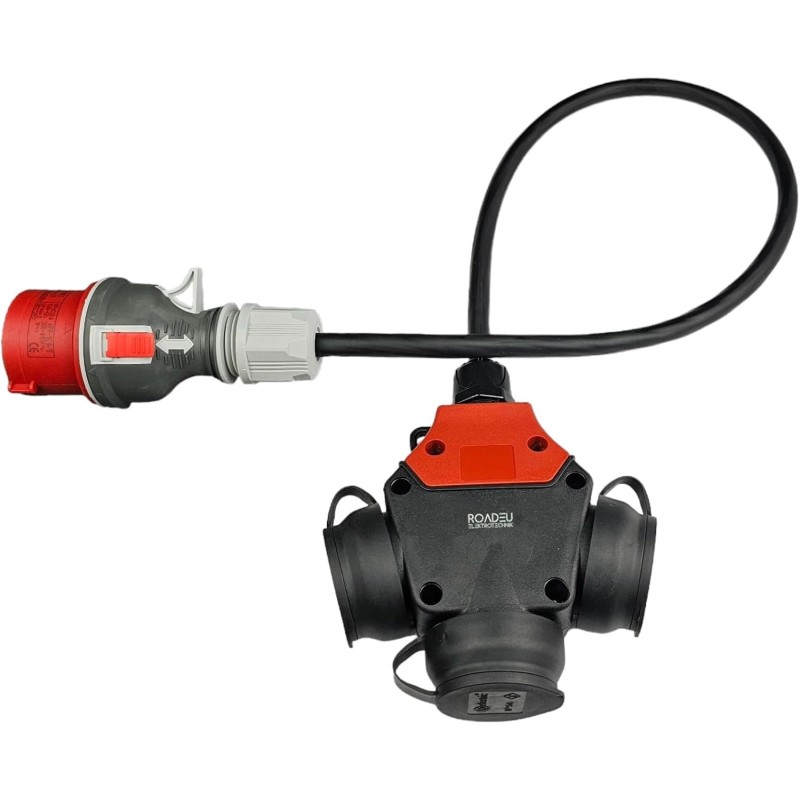

Three-Phase Triple Schuko Adapter 16 A (400 V → 3× 230 V)

Share in WhatsApp

85 .95 €

Tax included

Last items in stock

Adapter with a 16 A, 400 V CEE plug that splits a three-phase line into three 230 V Schuko sockets, each on an independent phase. It lets you run both heating elements and the pump of a wax melter, frame washer or pasteuriser at once from a single three-phase socket. 3 m copper cable with grease- and oil-resistant rubber, and IP44 protection.

85 .95 €

Tax included

Last items in stock

Quantity

Select options Options

Express Shipping

Return Guarantee

Safe payment

Details of Three-Phase Triple Schuko Adapter 16 A (400 V → 3× 230 V)

SCHUKO OUTPUTS

16 A

PER SOCKET, AT 230 V

3 m

OF CABLE

IP44

DUST AND SPLASHES

Adapter with a 16 A, 400 V CEE plug that splits a three-phase line into three 230 V Schuko sockets, each on its own phase.

It is what lets you run both heating elements and the pump at once from a single three-phase socket, without overloading one phase or resorting to extension leads.

01 · ONE PHASE PER SOCKET

It is not a multi-way plug: it spreads the load across the three phases

The difference from an ordinary power strip is in how it is wired inside. Here each Schuko goes to an independent phase (L1, L2 and L3), so three heavy loads working at once end up spread rather than piled onto the same conductor. That is exactly what honey house machines with several heating elements and a pump ask for: if everything hangs off one phase, it trips.

02 · WHERE IT IS USED

Wax melters, frame washers and pasteurisers

The typical setting is a honey house with a three-phase supply and single-phase equipment: wax melters, frame washers and honey pasteurisers. With this adapter you can run both heating elements and the pump at the same time from a standard 16 A three-phase socket. The 3 metres of cable is usually enough to reach the machine without chaining extension leads, which is where voltage drop starts.

03 · BEFORE YOU BUY

You need a three-phase 16 A, 5-pole CEE socket in the workshop: it does not turn single-phase into three-phase, it distributes what you already have. The cable is copper with a rubber jacket resistant to grease and oils, and the IP44 sealing makes it suitable for the damp of a honey house.

✓ FITS	Workshops with a three-phase 16 A CEE socket and several single-phase 230 V machines.
✕ DOESN'T FIT	Single-phase-only installations, and equipment that needs three-phase at the machine itself.

PRECAUTIONS

16 A per socket is the ceiling, not the total. Each Schuko takes up to 16 A at 230 V; spread the equipment across sockets and do not chain power strips behind them to hang more load on the same phase.

The installation has to be up to it. Check that the three-phase line and its protective devices suit the load you are about to connect. If there is any doubt about the workshop's wiring, have a qualified electrician look at it.

TECHNICAL DATA

Reference	BR-64374
Input	CEE plug 16 A, 400 V, 5-pole (L1, L2, L3, N, PE)
Outputs	3 Schuko sockets at 230 V, each on a different phase
Maximum per socket	16 A at 230 V
Cable	Copper with rubber resistant to grease and oils · 3 m
Protection	IP44, against dust and splashes
Made in and weight	Europe, certified materials · 600 g
