Electronic system for electric harps against the Asian hornet. Powers up to 10 harps with 2200 VDC, includes 12V battery, 20W solar panel, timer, and IP55 weatherproof box.
Buy it now and receive it between Tuesday, 24 November and Thursday, 26 November with Ontime
An electric harp with no power is a frame full of wires. What decides whether it is still working in September is not the harp: it is what feeds it.

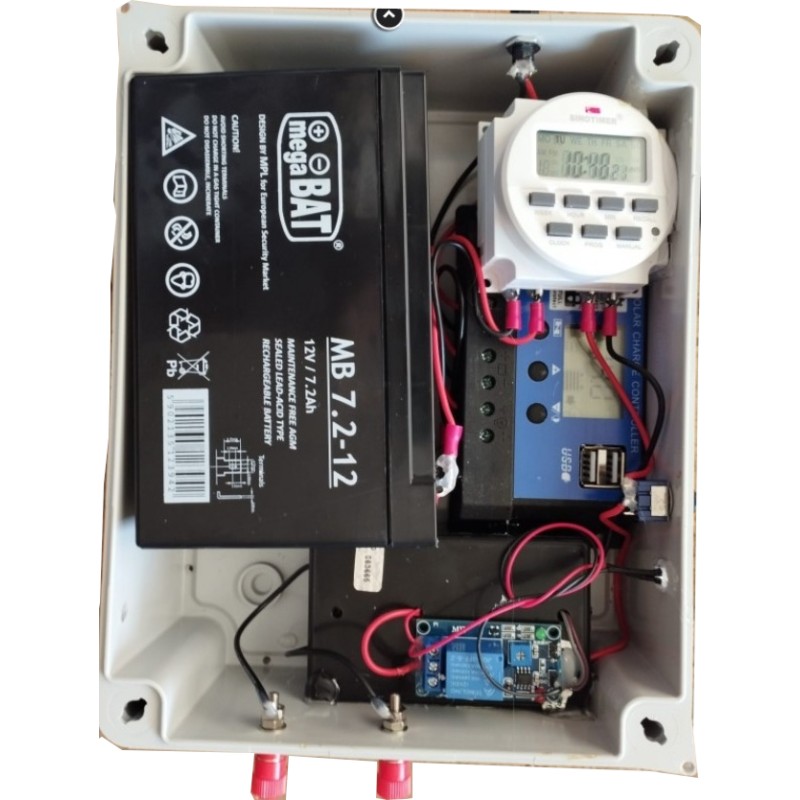

2,200 Vdc control unit with a 12 V 7 Ah battery, a 20 W solar panel and a time switch. It powers up to ten harps at once and switches them on and off on a schedule. Check the charge, the rain sensor and the state of the connections during the season.
01 · THE HARPS GO SEPARATELY
This kit is the electronics and their power: control unit, battery, solar panel and weatherproof enclosure. No harp is included — harps are bought separately and wired to the output, up to ten of them.

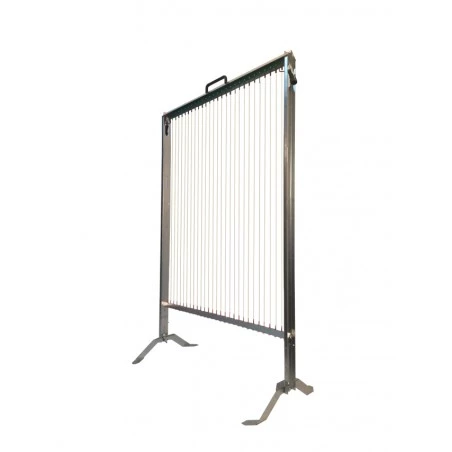

And a compatibility warning that costs money if missed: it does not fit the Tartago harp. It is not a question of voltage — it puts out the same 2,200 Vdc as the standalone board, which does fit — but of the connector. With a Tartago harp you want the standalone board or the 1,500 V modules.
02 · WHAT HAPPENS TO THE HORNET
A hornet crossing the wires takes the shock and drops. Worth saying plainly: it does not always die outright, many fall stunned or dying, as with most harp systems.
That is why the practice that works is setting a container of water underneath: what falls, falls in and does not recover. Without one, a share of them lift off again after a while.
03 · THE SYSTEM
The manual gives a setting of 08:00 to 22:00 in spring/summer and 08:00 to 21:00 in autumn. Check the programme the unit arrives with and adapt it to the activity period you observe; it takes up to 16 on/off combinations. The electronics sit in an IP55 weatherproof enclosure and carry short-circuit protection: if a harp leaks, the unit shuts down and retries every 20 or 30 minutes, which also helps you find the faulty one.
That point deserves attention in practice, because it is where the real trouble shows up: in rain and damp a dirty harp leaks current and consumption climbs. If that runs into several overcast days, the battery has no reserve left, and a battery taken all the way down is a battery lost. Check the insulation, cleanliness and charge after every storm. The manual recommends fitting the rain sensor board. Turning the switch off does not by itself remove the residual charge in the capacitors: before working on the unit, follow the safety procedure in the manual or contact the technical service. Do not test the 2,200 Vdc with a multimeter that is not rated for that voltage.
There is a 12 V external input for a second battery in parallel or for charging from the mains. At the end of the season, the manual says to leave the switch at OFF and keep the panel connected, somewhere it can charge, so the battery does not run completely flat.
04 · BEFORE YOU BUY
It is the electrical half of a system, not the whole system:
| ✓ FITS | Apiaries with electric harps already in place, up to ten per unit. |
| ✕ DOES NOT FIT | Tartago harps: the output connector is not theirs. |
| ⚠ NOT INCLUDED | The harps, the collection container and the mounting post. |
| Output | 2,200 Vdc |
|---|---|
| Harps per unit | Up to 10 |
| Battery | 12 V · 7 Ah, with 12 V external input |

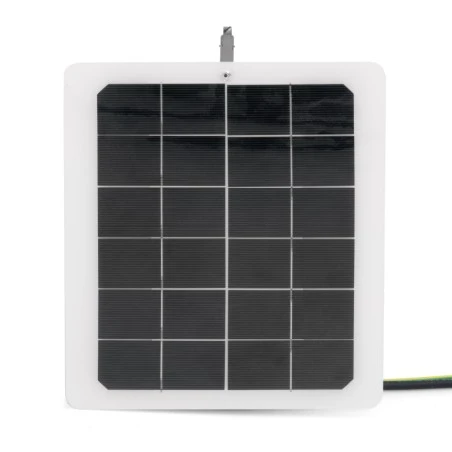

| Solar panel | 20 W polycrystalline, anodised aluminium frame |
| Time switch | Schedule: 08:00–22:00 spring/summer and 08:00–21:00 autumn per the manual; check on delivery · 16 combinations |
| Protections | Short-circuit with retry every 20-30 min · thermal control |
| Enclosure | IP55 weatherproof |
| Reference | KT121212 |
