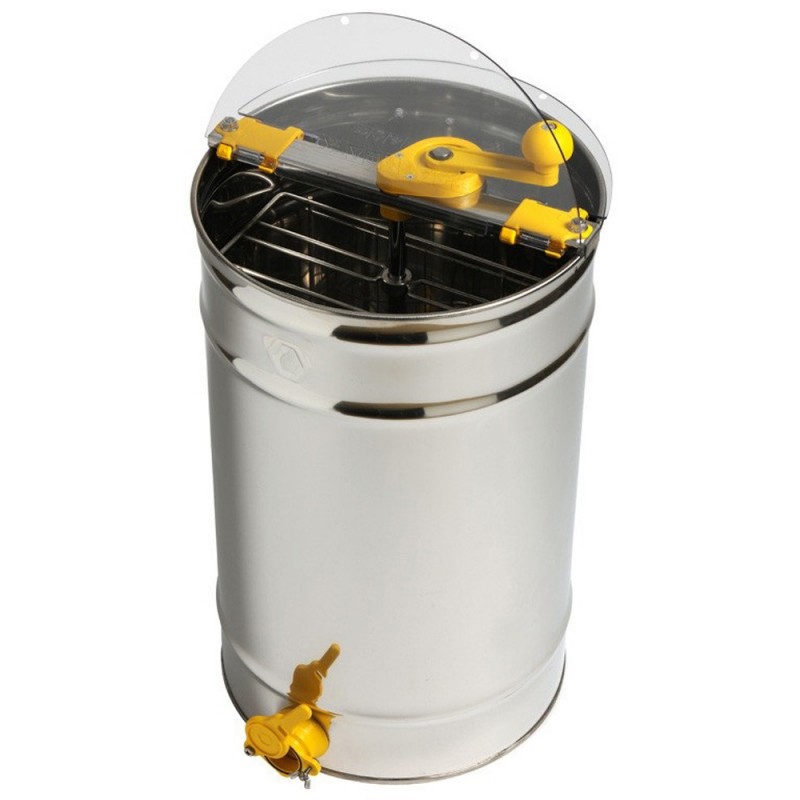

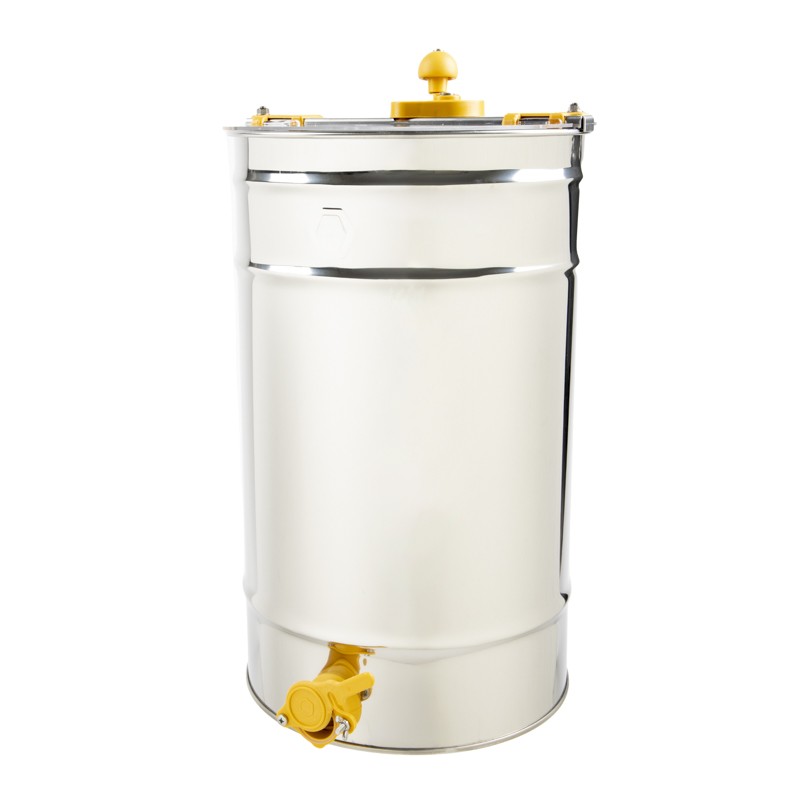

Quarti tabletop manual tangential honey extractor for two brood frames or four super frames.

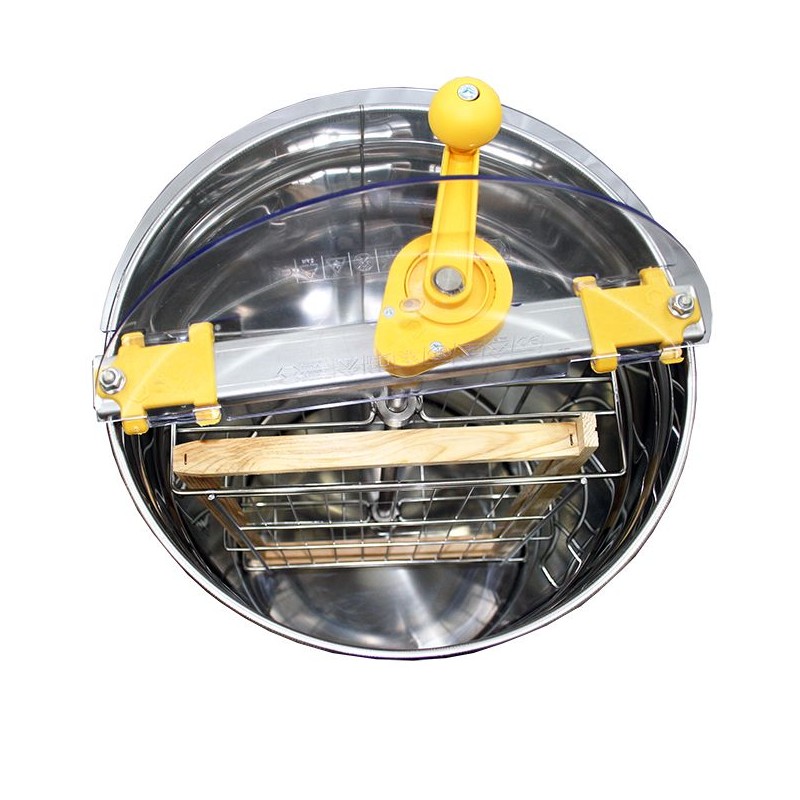

A compact solution for small harvests, with a 470 mm stainless steel honey tank and gear transmission operated from the upper crank.
01 · TANGENTIAL EXTRACTION
In a tangential basket, the face of the comb is oriented towards the wall of the honey tank. First extract one side with a moderate rotation, stop the basket completely, turn the frames over and continue on the other side. Balance the load with frames of similar weight to reduce vibrations and protect the combs.
02 · COMPACT FORMAT

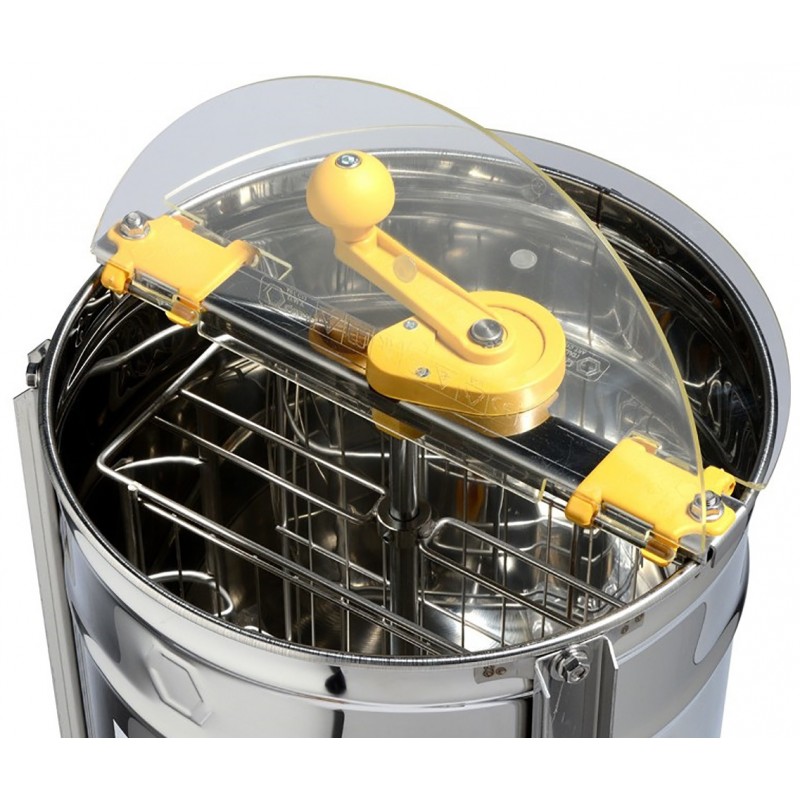

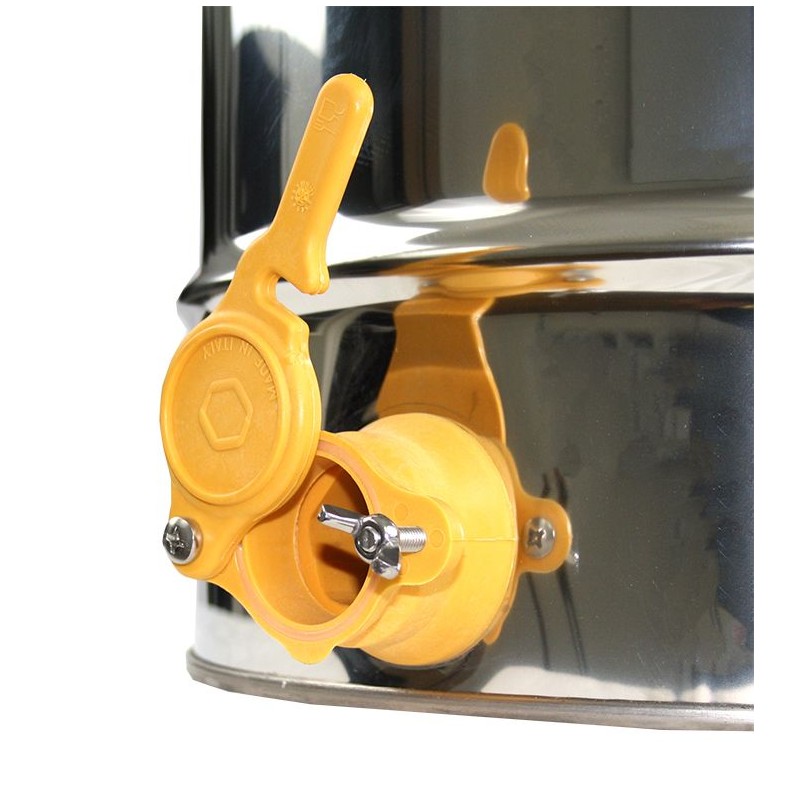

Legs are not included: operate it on a firm, level base that can withstand the force applied to the crank. The transparent lids let you monitor rotation, while the plastic tap makes draining easier once the honey reaches the outlet.
03 · BEFORE YOU BUY
The indicated capacity is two Layens, Dadant or Langstroth frames, or four supers. Check the actual measurements of your frames—including shoulders and spacers—if you use a non-standard format.
| Brand / reference | Quarti · S152 |
|---|---|
| System | Manual tangential |
| Capacity | 2 brood frames or 4 supers |
| Honey tank | Stainless steel · Ø 470 mm |
| Configuration | Without legs |
