5 FRAMES OF 48 CM OR LESS; NOT LAYENS | 2.5 kg IN PP WITH 15 % GLASS FIBRE |
562 × 243 × 440 MM; OVER 20 LITRES INSIDE | 2 LOUVRED VENTS AND A SLIDING ENTRANCE |
Swarm-catching box in polypropylene with 15 % glass fibre: 2.5 kg, 562 × 243 × 440 mm and over 20 litres inside, with adjustable rails for five Langstroth, Dadant or Dadant Blatt frames (top bar of 48 cm or less), two louvred vents, a sliding entrance and a stainless steel bracket with strap to hang it from a tree, a post or a wall. Layens does not fit.
A swarm is lost by arriving late or by a trap that overheats: this one hangs at 1.5-4 m, ventilates on both faces and stays up for weeks without a visit.
01 · THE BOX

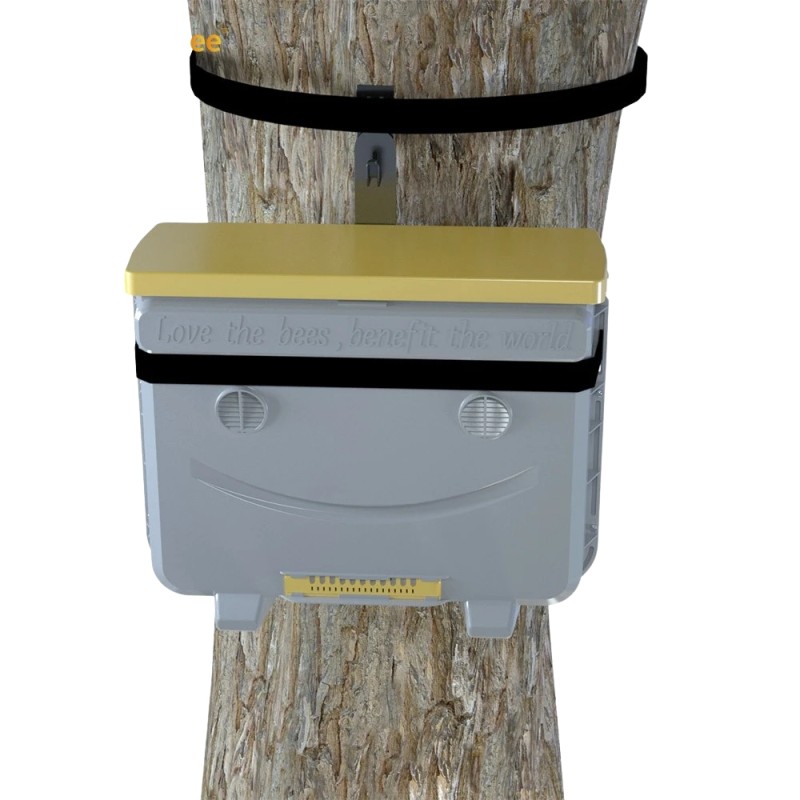

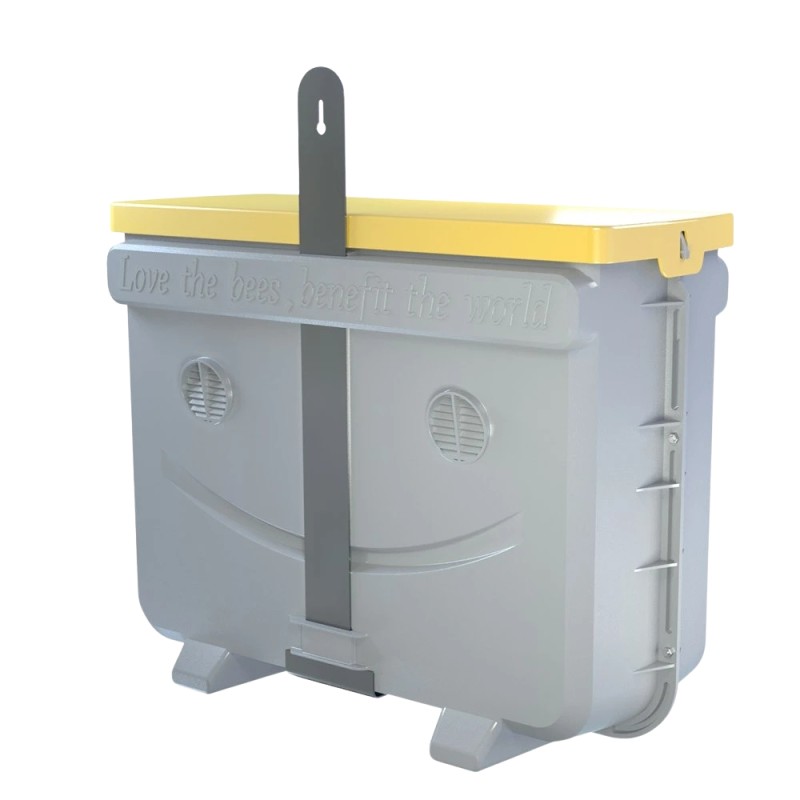

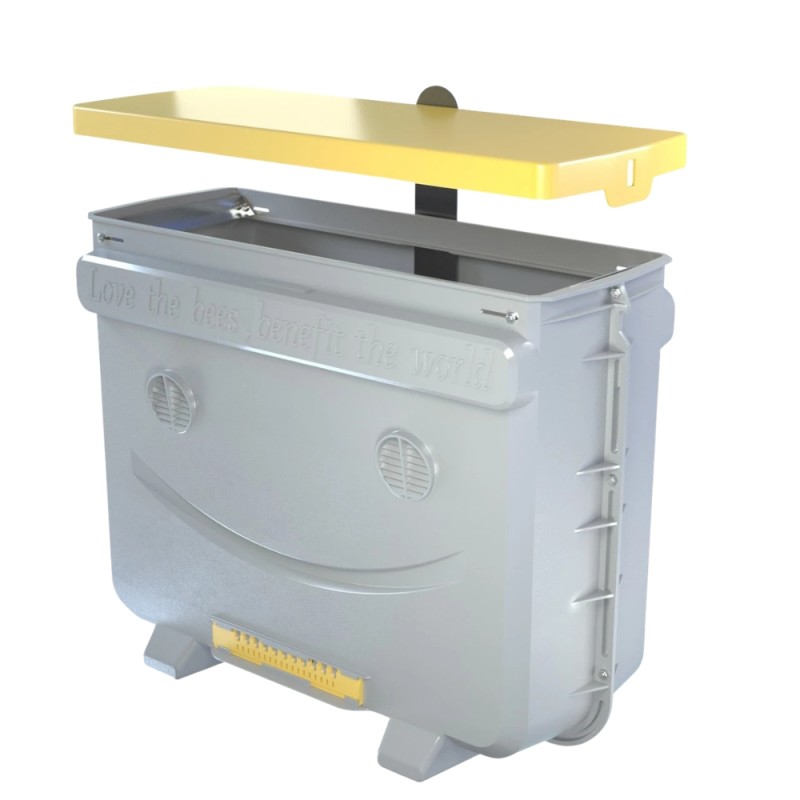

PP with 15 % glass fibre gives rigidity at 2.5 kg: three boxes go into the van without thinking about the load, and one hangs at four metres without help. Damp neither swells nor rots it, and the top bracket in 201 stainless steel stands the weather all season: a slot to hang from a nail or screw on a wall, or a strap to hug the trunk without harming the bark. No tools to assemble or take apart.
02 · WHICH FRAMES FIT

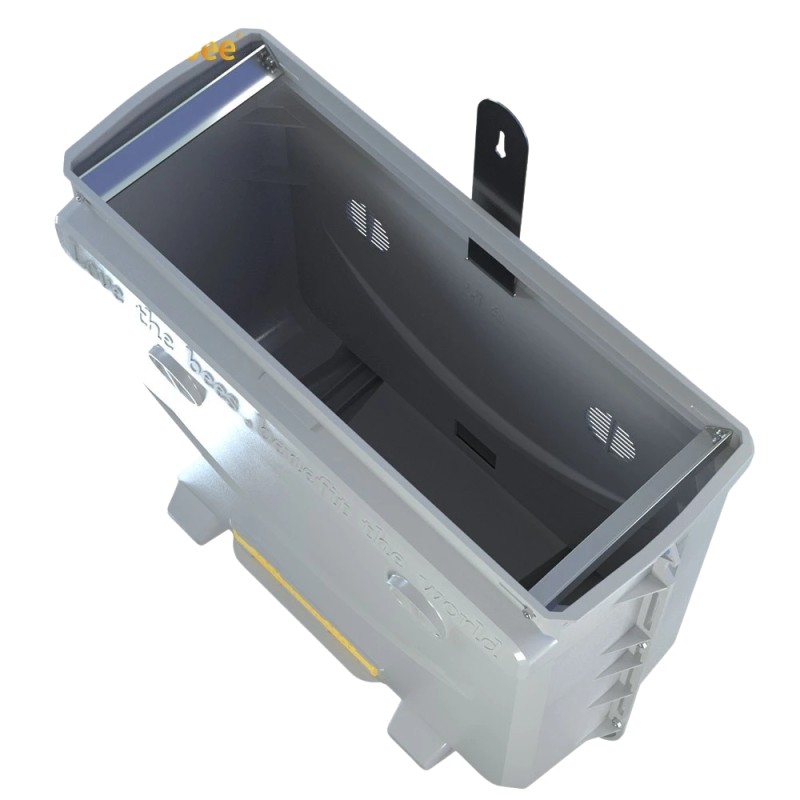

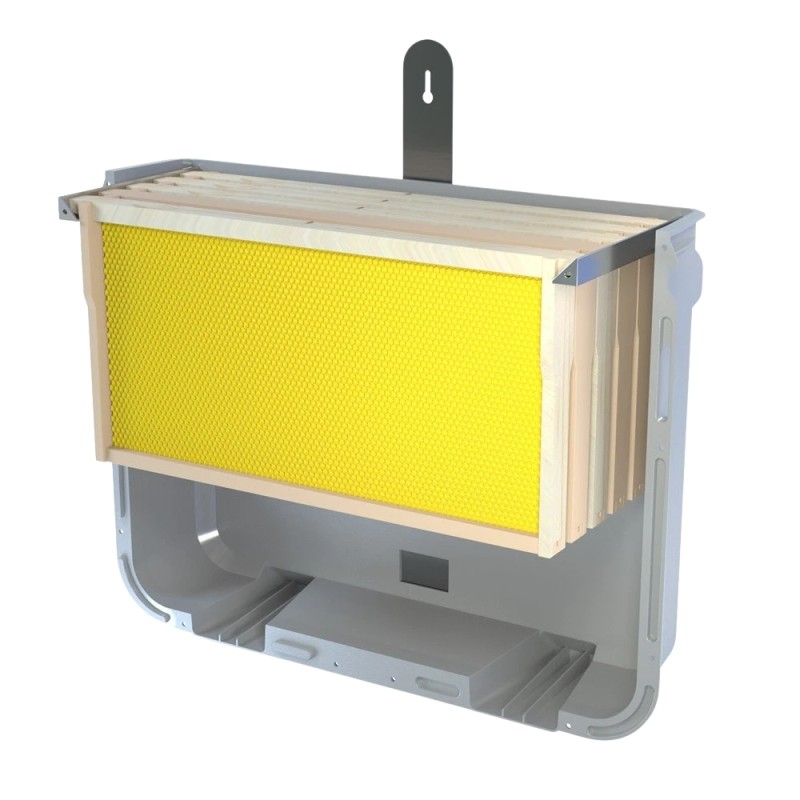

The sliding inner rails adjust to the top bar: at 48 cm Langstroth and Dadant US go in, and moved inwards, Dadant Blatt of 47 or less; in height a Dadant brood frame fits. Room for five frames, with over 20 litres free for the swarm to cluster before occupying comb. The one format that does not fit is Layens, with its horizontal frame.
03 · VENTILATION AND ENTRANCE
Two louvred vents, front and back, keep air moving and keep rain out: a badly ventilated box heats up and gets damp, and the swarm leaves or loses its first brood. The sliding entrance opens to catch, narrows when the colony is small and closes for transport; with it closed the box moves at dusk and the colony goes straight into its final equipment.
04 · HOW TO BAIT IT AND WHEN TO MOVE IT
Inside, a couple of frames with drawn or old comb and an attractant (Allure gel 3080, paste 72, spray 73): they help the scouts score it higher, they do not catch on their own. Hung at 1.5-4 m on a flight path or near apiaries that swarm, it is checked every week or two. Once the swarm is caught it can carry on as a field nuc with the entrance regulated until it suits you to move it; and it is the box firefighters and municipal services use to collect swarms from façades, being light and closable.
05 · BEFORE YOU BUY
The box is supplied with stainless bracket and strap; frames, foundation and attractant come separately.
| ✓ FITS | Anyone setting traps in trees or on posts every spring who wants a light box that hangs for weeks without maintenance. |
| ✕ DOESN’T FIT | Anyone working in Layens: the horizontal frame does not fit. |
| ⚠ NOT INCLUDED | Frames, foundation or attractant. |
| Reference | H28 |
|---|---|
| Material | PP with 15 % glass fibre; 201 stainless steel bracket |
| Dimensions | 562 × 243 × 440 mm |
| Weight | About 2.5 kg |
| Capacity | 5 frames, adjustable rails; over 20 litres inside |
| Frames | Langstroth, Dadant US and Dadant Blatt (top bar of 48 cm or less); not Layens |
| Ventilation | 2 louvred vents, front and back |
| Entrance | Sliding, adjustable and closable |
| Fixing | Slot for nail or screw and strap for trunk |
| Hanging height | 1.5 to 4 m |
| Compatible | Attractants 3080, 72, 73; transport bag 2943 |
