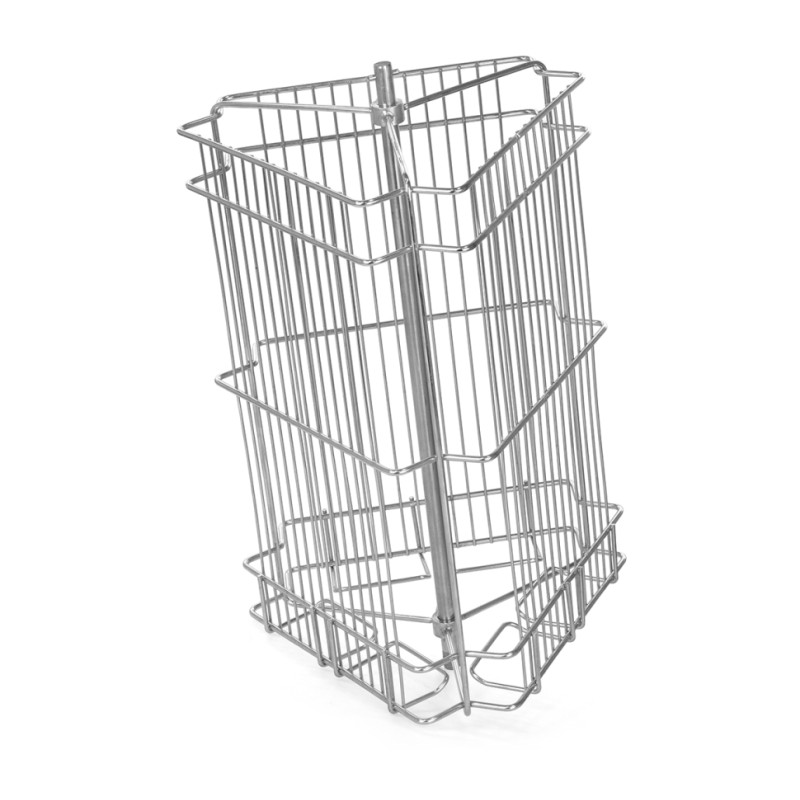

3-frame universal tangential basket – without shaft

01 · WHICH FRAME GOES IN

The figure, not the list of names

Each pocket takes a frame of up to 38 cm wide and 41 cm tall. That is the only compatibility you can check without seeing it: take your frame, measure it from lug to lug and compare.

If your frame is wider than 38 cm it will not go in the pocket, however well it fits the drum. The pocket's measurement is what decides, and tangentially the frame lies flat against the wall, so there is no way of turning it edgewise.

02 · WHICH DRUM IT FITS

Ø 600 mm and up

It is made for drums of Ø 600 mm or more, and even then it depends on the internal design of the particular drum. In a 520 mm extractor it does not fit: it is the question we get most, and the answer is no.

Before ordering it as a spare, measure the diameter and the usable height of your drum. On a 5 kg stainless steel part, a return costs.

03 · NO AXLE INCLUDED

Spare part or your own build

It comes without a shaft. That makes it useful in two cases: as a replacement for a broken basket, mounted on the shaft you already have, or as a starting part for someone building an extractor from scratch to suit the frame format of their own operation.

If you are mounting it on an existing shaft, tell us the diameter of yours before ordering and we will check it.

04 · BEFORE YOU BUY

This is the three-pocket basket:
