Bushing coupling motor shaft extractor cage axel

See 7 Customer Reviews

Share in WhatsApp

11 .95 €

Tax included

Stock

Stainless steel 304 coupling sleeve that joins the motor shaft to the extractor's cage shaft. Grub screw and notch for pin. Four sizes by diameter (motor 10/12 mm, cage 14/16 mm). Essential to motorise.

Size

10/14
12/14
12/16
10/16

11 .95 €

Tax included

Stock

Options

CERRAR

Quantity

Select options Options

Express Shipping

Return Guarantee

Safe payment

Details of Bushing coupling motor shaft extractor cage axel

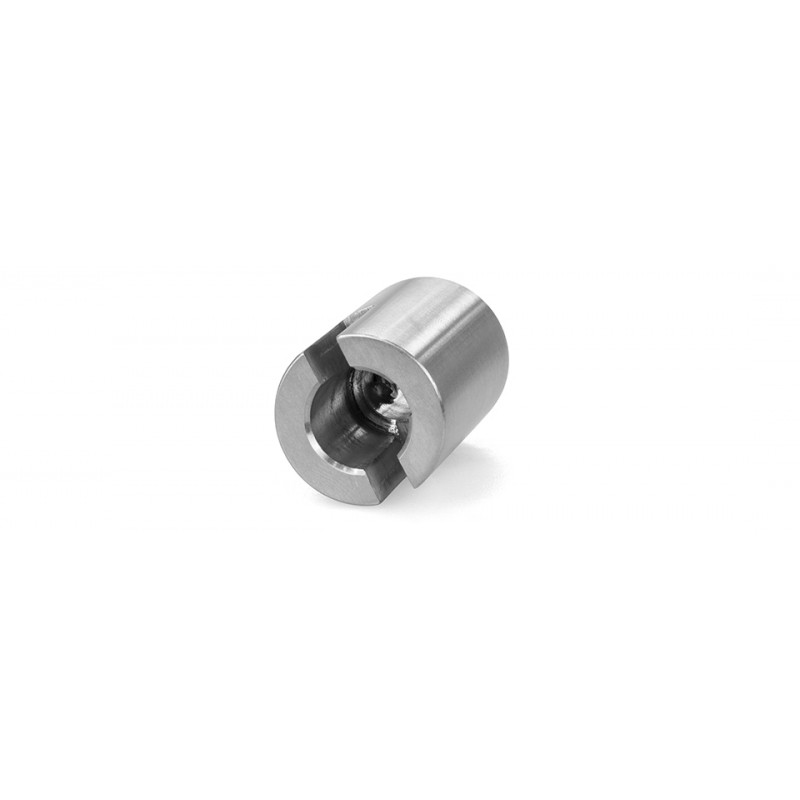

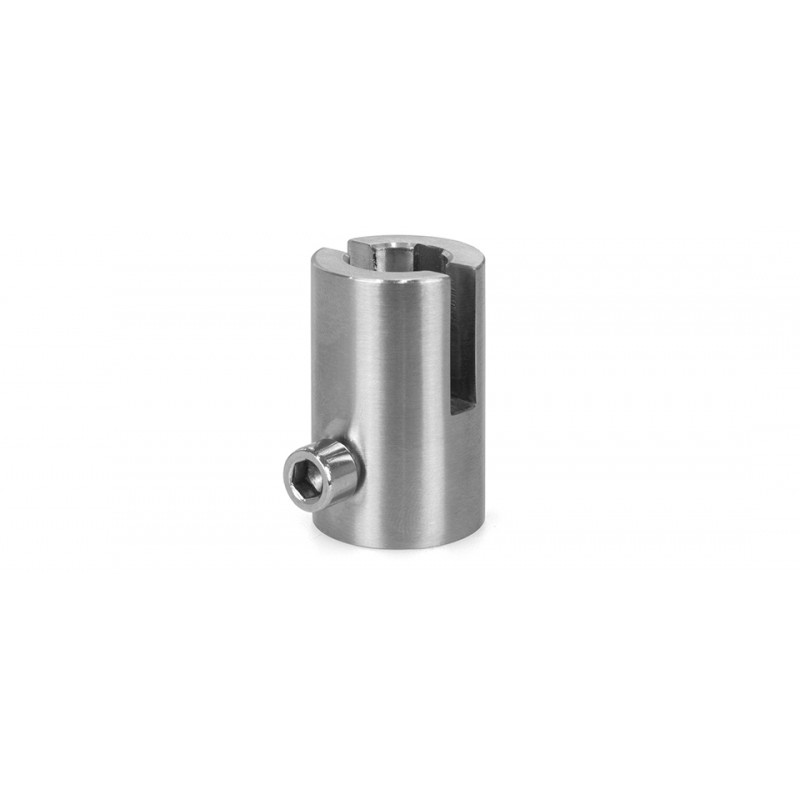

The coupling sleeve is the part that joins the motor shaft to the extractor's cage shaft: without it, the motor can't transmit the spin. It locks onto the motor shaft with a grub screw and engages the cage shaft with a pin, so both turn as one.

🔧 Firm coupling, no play or vibration

Made of 304 stainless steel, it shrugs off the damp and the cleaning of the honey house without rusting. The grub screw clamps the motor shaft and the notch takes the cage pin, so the assembly spins centred and free of play — exactly what keeps it from wobbling or rattling in use.

📐 How to choose your size

The sleeve is named by two diameters — motor shaft / cage shaft — in four combinations:

10/14 — motor shaft Ø10, cage shaft Ø14 mm
10/16 — motor shaft Ø10, cage shaft Ø16 mm
12/14 — motor shaft Ø12, cage shaft Ø14 mm
12/16 — motor shaft Ø12, cage shaft Ø16 mm

The first number comes from your motor (the 80 W has an Ø10 shaft; the 110 W, Ø12). The second from your extractor: measure your cage shaft diameter (14 or 16 mm) before ordering.

📋 Technical specifications

Material	304 stainless steel
Outer Ø	22 mm
Height	35-40 mm
Sizes (motor/cage)	10/14 · 10/16 · 12/14 · 12/16 mm
Fixing	Grub screw (motor) + notch for pin (cage)
