Solar Wax Melter. The old honeycombs, placed on the mesh of the certifier, release, by exposure to the sun, a wax of first quality. The liquid wax is poured directly into the moulds forming blocks of yellow beeswax.
A solar wax melter costs nothing to run and gives nothing below a certain temperature. That is the whole bargain.

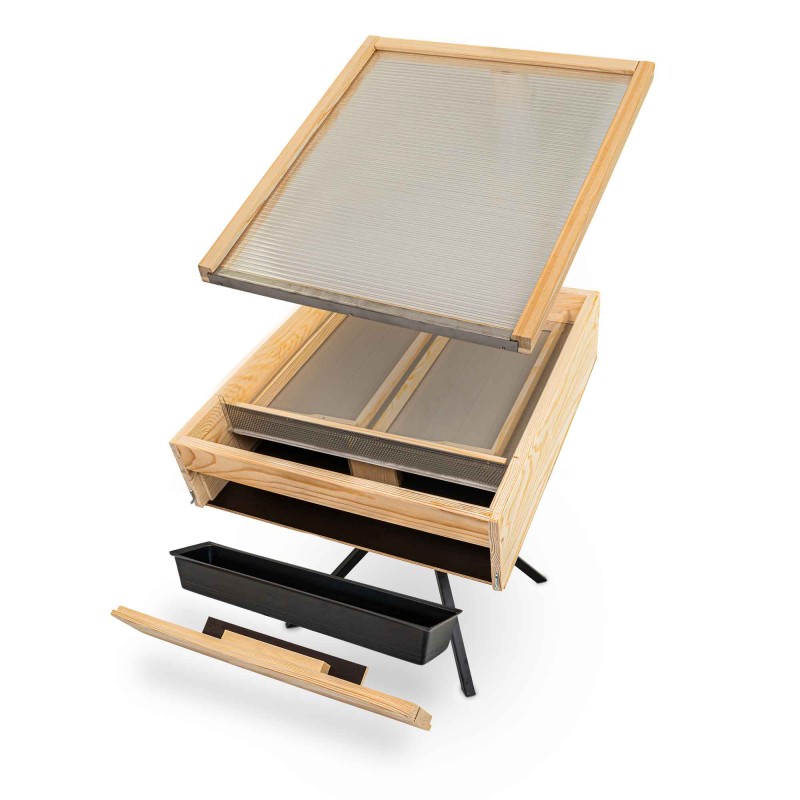

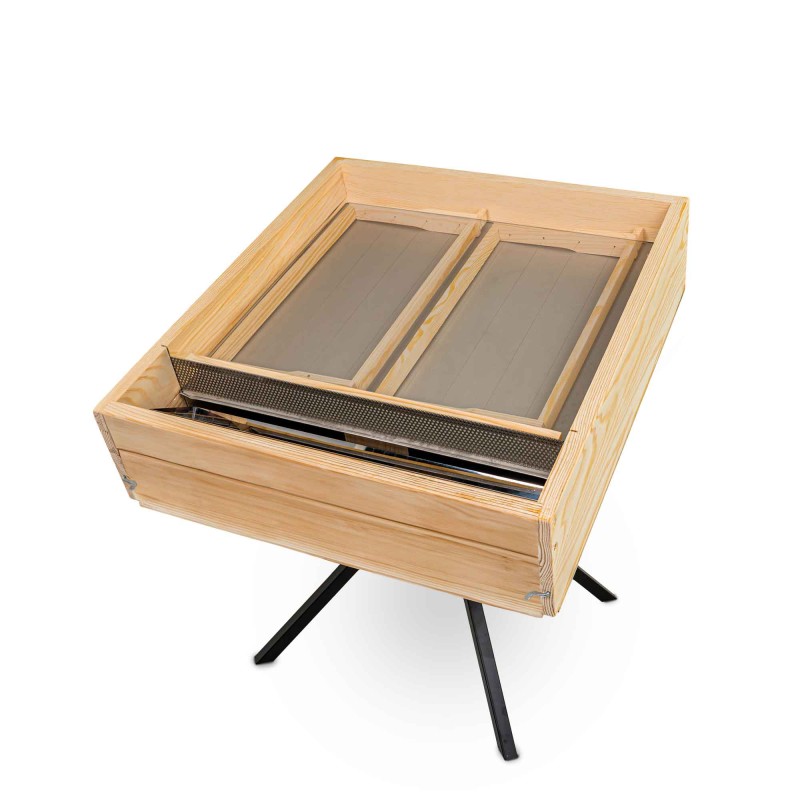

Wooden solar wax melter with a 4 mm twin-wall polycarbonate cover with UV protection, a stainless steel plate and a collecting tray. It sits on a legged stand that turns, so you can point it at wherever the sun is.
01 · HOW IT WORKS
Beeswax melts between 62 and 65 °C. Under the cover in full sun the inside goes well past that: the wax melts, runs down the stainless plate and drops into the tray, while what does not melt — cocoons, pollen residue, wood — stays behind. No electricity, no steam, no water.
The catch is in the small print, and it is worth knowing before you buy: the maker asks for 27 °C outside and strong radiation. On a cloudy day, or in March, no solar melter is worth anything.
02 · WHAT FITS
Frames go in lying flat on the plate, so what governs is the usable surface: 48 × 53 cm, 7.2 cm deep. A Layens or Dadant brood frame goes in easily lengthwise and eats up much of the depth, so count on two brood frames per batch — the maker puts the capacity at four, and with a large frame that sum does not add up.
If you need more volume there is the Jumbo extension: it hangs the frames vertically, takes frames up to 285 mm tall and raises the batch to twelve Dadant frames. It is bought separately.
03 · WHAT WAX TO PUT IN
The solar melter gives its best wax with cappings and light comb, which melt clean and yield well. Old brood comb is another story: much of what looks like wax is cocoons and residue, so it yields little and leaves a lot behind on the plate.
And the wax that reaches the tray is not ready for foundation: it comes out free of coarse debris, but it needs remelting and filtering before you use it.
04 · MAINTENANCE
The body is supplied unpainted and untreated. Before you leave it out in the weather it needs two or three coats on the outside of water-based hive paint or linseed oil; without that protection the maker itself does not vouch for how long it lasts.
And a warning from people already using it: the legs are light. On a windy site it pays to weight the stand down or set the melter on the ground, because tipped over it melts nothing.
05 · BEFORE YOU BUY
It is a summer machine, and only a summer machine:
| ✓ FITS | Direct sun, over 27 °C, and wax from cappings or light comb. |
| ✕ DOESN'T FIT | Anyone needing to render all year or by volume: that is a steam melter. |
| ⚠ NOT INCLUDED | The protective paint and the Jumbo extension. |
| Type | Wooden solar wax melter on a turning legged stand |
|---|---|
| Cover | 4 mm twin-wall polycarbonate with UV protection |
| Inside | Stainless steel plate and collecting tray |
| Usable surface | 48 × 53 cm · 7.2 cm deep |
| Outside size | About 69 × 71 cm |
| Working conditions | Direct sun and 27 °C or more outside |
| Finish | Bare: it has to be protected outside before use |
| Extension | Jumbo extension BR-64015: up to 12 Dadant frames, 285 mm tall maximum |
| Reference | BR-64009 |
Data sheet

Solar Wax Melter. The old honeycombs, placed on the mesh of the certifier, release, by exposure to the sun, a wax of first quality. The liquid wax is poured directly into the moulds forming blocks of yellow beeswax.
