DANA® api LIDFITTER automatic capping machine

33775 ,94 €

110808

DANA® api LIDFITTER automatic capping machine

New
To order

Share in WhatsApp

33775 ,94 €

Tax included

Automatic Swienty capping tower: places and screws on screw and twist-off lids at the programmed torque, up to 1,000 lids an hour, and stores every format. With its 110803 lid sorter it works from Ø42 to 90 mm. It goes in after a Swienty filling machine or station. Needs air at 6–8 bar. Guides for one format included; compressor, sorter and extra formats are bought separately.

33775 ,94 €

Tax included

Quantity

Select options Options

Express Shipping

Return Guarantee

Safe payment

Details of DANA® api LIDFITTER automatic capping machine

1,000

LIDS PER HOUR

Ø 40–120 mm

SCREW OR TWIST-OFF LID

6–8 bar

COMPRESSED AIR, COMPRESSOR EXTRA

300 kg

THE TOWER, WITHOUT TURNTABLES

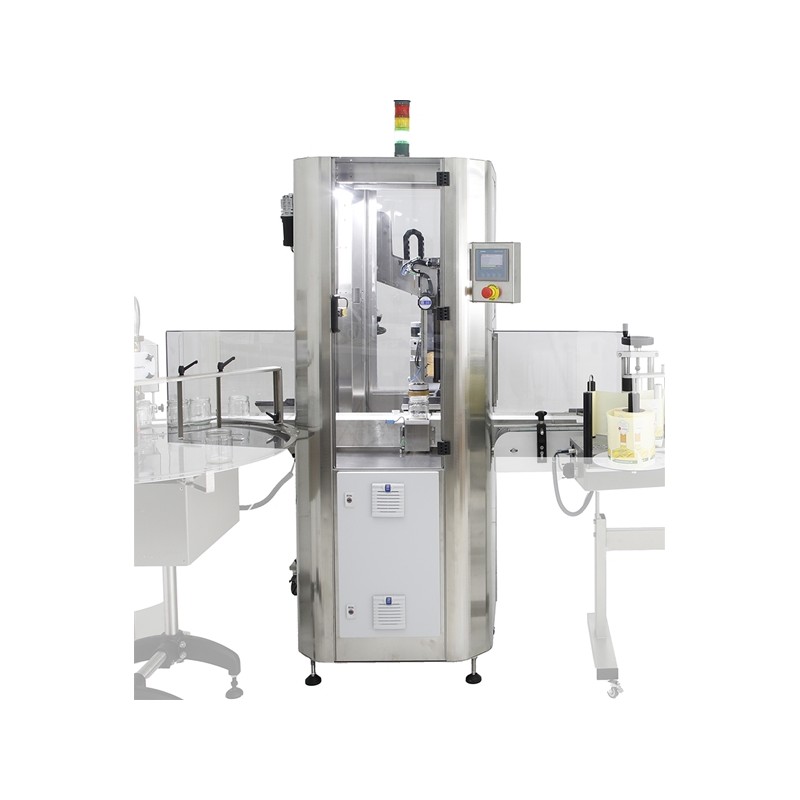

Automatic capping tower that places and screws on screw and twist-off lids at the torque you programme, at up to 1,000 lids an hour.

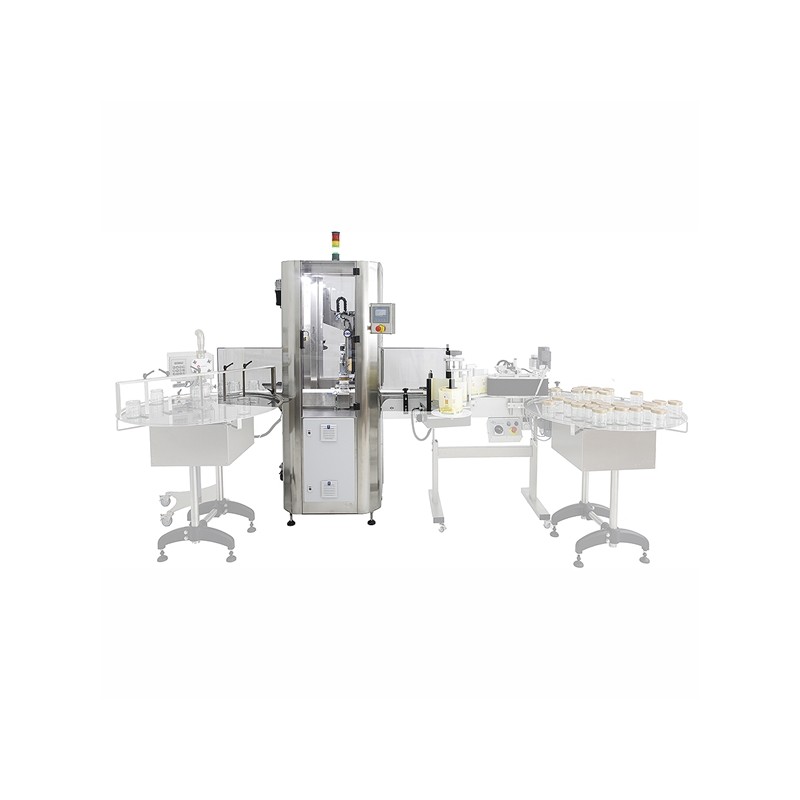

It is the module that turns a filling station into an automatic line: it stands after the filling machine, takes in the full jars on its own conveyor and hands them on capped to the labeller or the outfeed table.

01 · CAPPING

Set the torque once and every jar gets it

On the Siemens touch screen, 4″ and upgradeable to 7″, you enter the container size, the lid size and the tightening torque, and the machine stores them: the next run of that format starts by selecting its programme. It screws on screw and twist-off lids, metal or plastic, onto glass or plastic jars. It takes lids from Ø 40 to 120 mm and 7 to 30 mm tall — in our catalogue, TO43 to TO110 — and containers from Ø 40 to 150 mm and 25 to 350 mm tall.

02 · INTEGRATION

It goes in after the Swienty filler you already have

If you work with a Swienty filling machine or filling station, the tower goes in after it and the set-up then fills and caps without anyone touching the jar. Lids reach it from the Swienty 110803 lid sorter, which orders them and delivers every one the same way up. It is bought separately and handles screw and twist-off lids from Ø 42 to 90 mm and 9 to 22 mm tall: with it, that is the real range of the tower, and for larger lids you need to ask us. Its conveyor runs at 900 to 1,050 mm high: check it against the outfeed of your filler or turntable.

03 · INSTALLATION

Plan for a compressor and 2.2 metres of headroom

The tower runs on compressed air at 6–8 bar, with a flow of 220 litres a minute and a 50-litre receiver. The compressor is not included: plan for it, and for where it will go, before the machine arrives. It asks little of the mains: 100 to 240 V and 2.15 A at 240 V. It takes up 1,950 × 1,000 mm of floor space, stands 1,950 mm high and 2,200 mm with the light tower on top, and weighs 300 kg.

04 · BEFORE YOU BUY

The tower comes with the guides and the programme for one jar and lid format. Each extra format needs its own set, reference 110808I, which includes testing and programming the format; specially shaped containers also need a holding tool, sold separately. It ships on a 200 × 120 × 215 cm pallet weighing 300 kg, so plan for a forklift and a door to match. Send us samples of your jars and lids and we will confirm the fit and what your line needs.

✓ FITS	After Swienty filling machines and filling stations, with glass or plastic jars from Ø 40 to 150 mm and, with the 110803 sorter, lids from Ø 42 to 90 mm.
⚠ NOT INCLUDED	Compressor, lid sorter, guides for extra formats, turntables or filling machine.

See it working

SPECIFICATIONS

Type	Automatic capping tower
Capacity	Up to 1,000 lids/h
Lids	Screw and twist-off, metal or plastic · Ø 40–120 mm · 7 to 30 mm tall
Lid sorter (separate)	Swienty 110803 · screw and twist-off · Ø 42–90 mm · 9 to 22 mm tall
Containers	Glass or plastic · Ø 40–150 mm · 25 to 350 mm tall
Controls	4″ Siemens touch screen, upgradeable to 7″ · torque and formats stored
Compressed air	6–8 bar · 220 l/min · 50 l receiver · compressor not included
Power supply	100–240 V · 50/60 Hz · 5.3 A at 100 V · 2.15 A at 240 V
Conveyor height	900–1,050 mm
Tower dimensions	1,950 × 1,000 × 1,950 mm · 2,200 mm tall with the light tower
With turntables, sorter and filler	2,080 × 2,045 × 2,200 mm · 530 kg
Tower weight	300 kg
Shipping	1 pallet · 200 × 120 × 215 cm · 300 kg
Material	Stainless steel
Included	The capping tower · guides and programme for one jar and lid format · each extra format: set 110808I sold separately
Manufacturer	Swienty (Denmark)
Swienty reference	110808
