90° Pipe Elbow with Tap for FillOmat® Honey Filling machine Honey filling machines
90° Pipe Elbow with Tap for FillOmat® Honey Filling machine
79 .90 €
BR-31540-2

90° Pipe Elbow with Tap for FillOmat® Honey Filling machine

90° Pipe Elbow with Tap for FillOmat® Honey Filling machine Honey filling machines
  • 90° Pipe Elbow with Tap for FillOmat® Honey Filling machine Honey filling machines
  • 90° Pipe Elbow with Tap for FillOmat® Honey Filling machine Honey filling machines
  • 90° Pipe Elbow with Tap for FillOmat® Honey Filling machine Honey filling machines
  • 90° Pipe Elbow with Tap for FillOmat® Honey Filling machine Honey filling machines
  • 90° Pipe Elbow with Tap for FillOmat® Honey Filling machine Honey filling machines
whatsapp Share in WhatsApp
79 .90 €
Tax included

Last items in stock

The 90° pipe elbow with tap is a key component included with the FillOmat® filling machine, designed to ensure efficient and hassle-free operation from the very beginning. Made of high-quality stainless steel, this accessory stands out for its durability, resistance, and innovative design.

79 .90 €
Tax included

Last items in stock
Quantity
Select options Options

Express Shipping

Return Guarantee

Safe payment

Details of 90° Pipe Elbow with Tap for FillOmat® Honey Filling machine

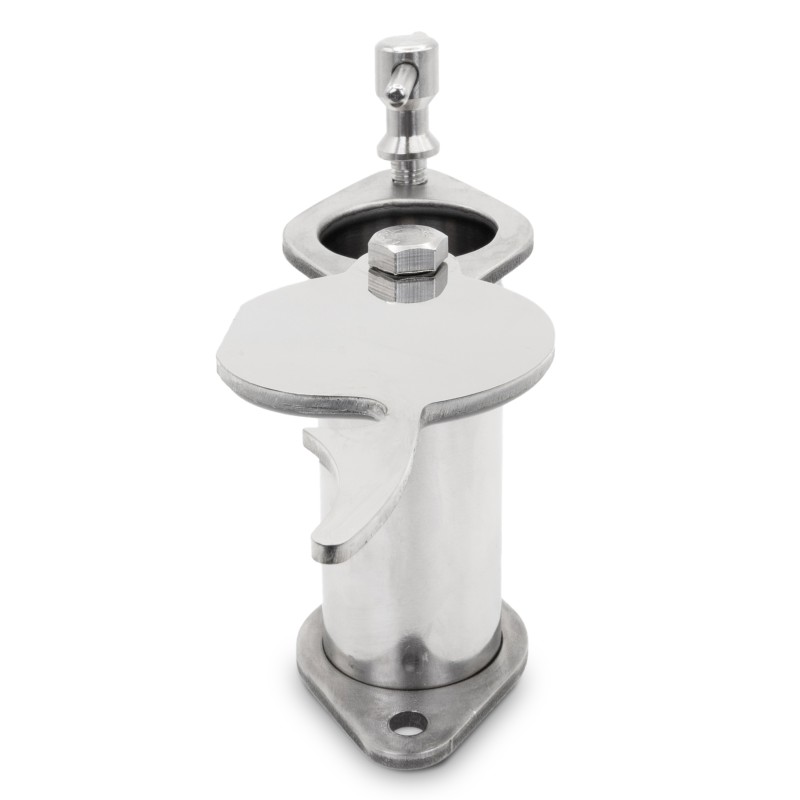

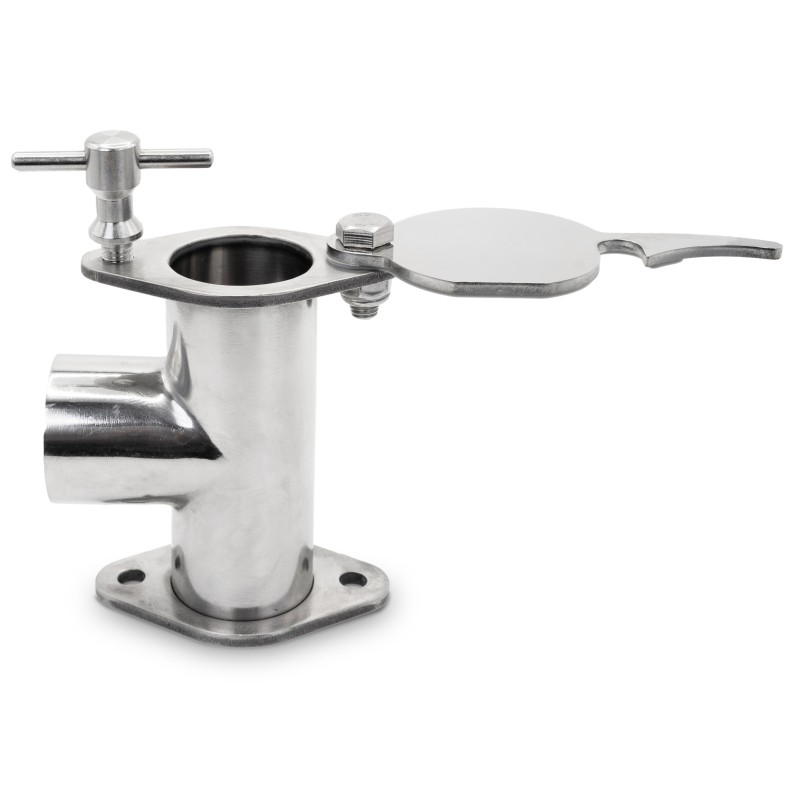

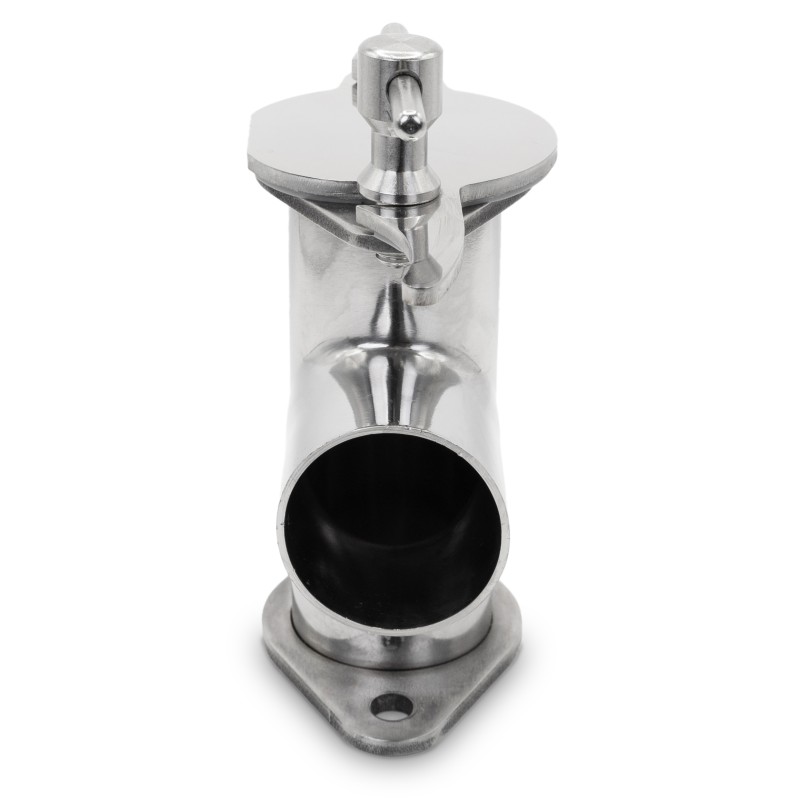

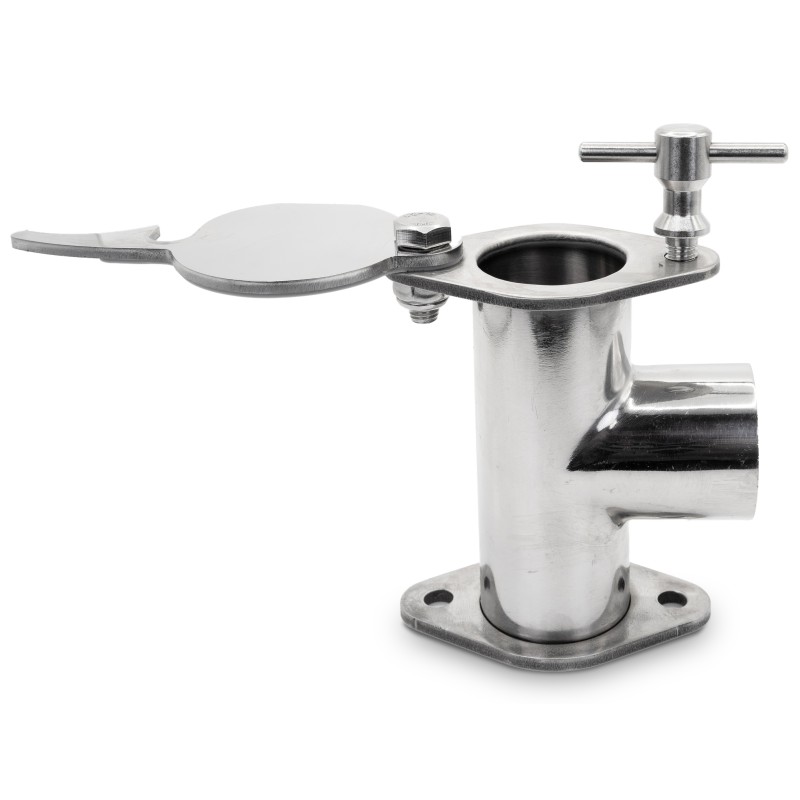

90° elbow with a top tap for the FillOmat® bottling machine: the part that solves priming, which is the awkward moment of any doser.

The tap is not for filling jars: it is for filling the machine. A volumetric pump does not dose until its head is full of honey, because air cannot be dosed. This elbow opens a second inlet on top: you open the tap, the honey drops straight into the head, the gears fill and the machine is primed in seconds.

01 · PRIMING IS THE BOTTLENECK

The pump will not start against air

Without this part, priming means waiting for the honey to climb the suction hose on its own, and with dense or cold honey that takes a while every time you start a batch, change drum or empty the circuit. With the tap on top the filling is by gravity and direct.

02 · NOT THE PLAIN ELBOW

This is the 31540-2; the transverse one is the 31541

These are the two parts of the FillOmat® catalogue that get mixed up most. This is the 90° one with the priming tap; the 31541 is the plain transverse elbow, with no tap, and only changes the direction of the line. Both are food-safe stainless steel and work on the same 38 mm circuit.

03 · BEFORE YOU BUY

This corrects something that had been published here for a while.

✓ FITSFillOmat® bottling machine, on its 38 mm circuit.

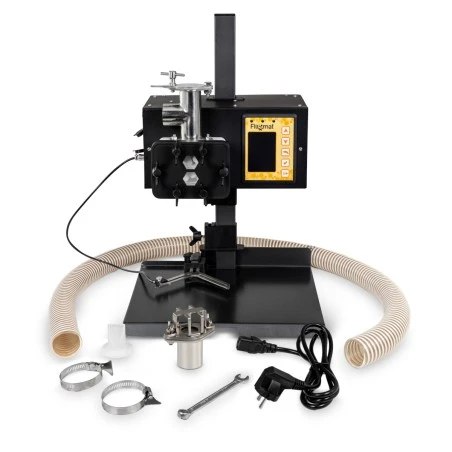

⚠ NOT STANDARD KITThe maker lists it as an accessory, not within the machine's delivery: the FillOmat® comes with a suction hose, check valve, two nozzles and two clamps.
✕ NOT THE PLAIN ONEIf all you need is the change of direction, with no tap, that is the transverse elbow 31541.

TECHNICAL DATA

Maker's reference31540-2 (Rohrbogen 90° inkl. Quetschhahn)
FunctionPriming the head by gravity and turning the line through 90°
TapYes, on top, for priming
MaterialFood-safe stainless steel
Connection diameter38 mm
Angle90°
MachineFillOmat® bottling machine
ReferenceBR-31540-2
