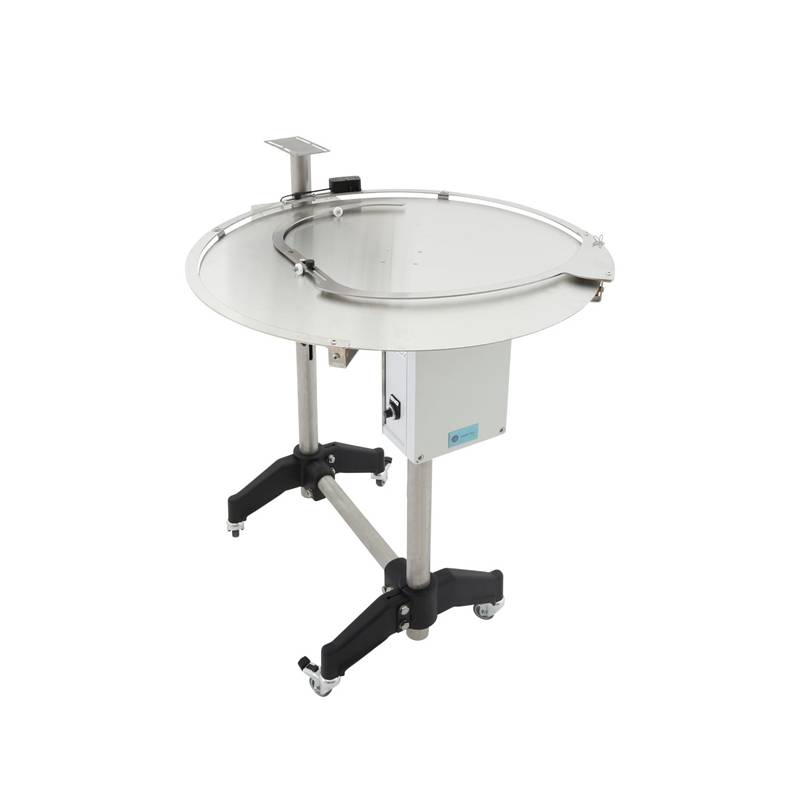

Turntable Ø70 for DANA 1000 and 2000+

Name: Turntable Ø70 for DANA 1000 and 2000+
Brand: Swienty
SKU: 110895
Price: 4279 EUR
Availability: BackOrder

Share in WhatsApp

4279 ,00 €

Tax included

Swienty 110895 Ø70 cm rotary table for upgrading an existing DANA api MATIC 1000. Adjustable guide, wire-switch stop and central collection of filled jars. A DANA 2000+ needs the 110898 long mounting plate. Filling machine and plate are not included.

4279 ,00 €

Tax included

Quantity

Select options Options

Express Shipping

Return Guarantee

Safe payment

Details of Turntable Ø70 for DANA 1000 and 2000+

Ø70 cm

ROTARY TABLE

110895

SWIENTY ITEM

Filling station with a Ø70 cm rotary table that automates jar presentation to a DANA api MATIC 1000 you already own, or to a 2000+ fitted with its long plate.

Item 110895 is the table with its guide and stop system; it does not include the filling machine. That scope distinction matters when comparing it with the Ø100 tables in the catalogue.

01 · FILLING CYCLE

The jar reaches the nozzle without manual repositioning

Place empty jars on the rotary table. The guide carries each jar to a mechanical wire switch: when the jar touches it, the table stops and the DANA delivers its dose. Once filling ends, the table rotates again until the next jar reaches the switch. Filled jars collect in the centre for removal. The table sequences the movement; dose accuracy still depends on DANA calibration.

02 · ADJUSTMENT

Set both guide and filler for the jar format

The guide adjusts to carry different jar diameters. The filler support allows horizontal and vertical positioning to centre the nozzle. After every format change, run a dry test: check that the jar travels freely, operates the wire switch and remains stable during the dose.

03 · Ø70 OR Ø100

The difference is more than twenty centimetres of table

The Ø70 is the upgrade for an existing DANA 1000, or for a 2000+ with the long plate. In Ø100 there are three options: the complete station with the DANA 2000+ (item 110885); the same table with console and no filler, for those who already own a 2000+ (item 110884); and the table without console (item 110755), which goes with the DANA 3000 or with a 2000+ on a floor stand. The difference is not limited to table diameter.

Ø70 cm · item 110895	Ø100 cm · items 110885 and 110884
Table and guide system for a DANA 1000, or for a 2000+ with the 110898 plate; filler not included.	Complete station with DANA 2000+ (110885), or its table with console and no filler (110884).

04 · BEFORE YOU BUY

Check which DANA you own and which plate is required

With a DANA 1000, the unit is intended as a direct upgrade. A DANA 2000+ requires the manufacturer's longer mounting plate, item 110898, sold separately; the DANA 2000+ with Ø70 table set already includes it. Before introducing honey, complete several dry cycles with the intended jar format. On every pass, observe where the jar touches the wire switch, whether it stops beneath the nozzle and whether it advances again without rubbing. This separates mechanical guide setup from the subsequent dose calibration.

✓ FITS	DANA api MATIC 1000 already available in your workshop, or DANA 2000+ with the 110898 plate.
✕ DOES NOT FIT	DANA 2000+ without the 110898 long mounting plate.
⚠ NOT INCLUDED	DANA api MATIC filler or the 110898 long plate for DANA 2000+.

TECHNICAL DATA

Reference	110895
Table diameter	Ø70 cm
Jar detection	Mechanical wire switch
Guiding	Guide adjustable to jar format
Direct compatibility	DANA api MATIC 1000
Conditional compatibility	DANA api MATIC 2000+ with the 110898 long plate
Filling machine	Not included

Data sheet

Packaging equipment type: Jar tables and conveying

Documentation for Turntable Ø70 for DANA 1000 and 2000+

1 file available

Manual mesa rotativa 70 (711.74KB)
