Safety Lock for 6-Frame Reversible Electric Extractor MALAGA SAF

Out of stock

Share in WhatsApp

190 .00 €

Tax included

Out of stock

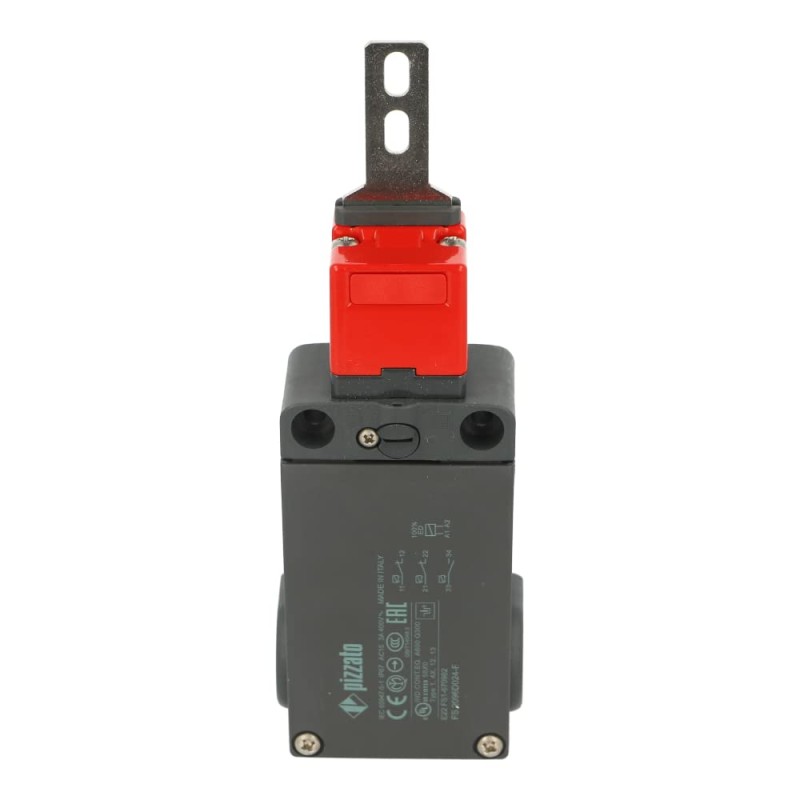

Original safety switch with wiring. Prevents start-up if lid is open. Compatible with SAF NATURA MALAGA extractor.

190 .00 €

Tax included

Out of stock

Quantity

Select options Options

Express Shipping

Return Guarantee

Safe payment

Details of Safety Lock for 6-Frame Reversible Electric Extractor MALAGA SAF

Original safety closure with limit switch and interlock for the 6-frame reversible MÁLAGA extractor by SAF NATURA, pre-2024 models.

It stops the machine starting with the lid open. It does not brake what is already turning. Worth saying that plainly, because it decides how you work with the extractor. This device cuts the start signal to the controller if the lid is not properly closed; what it does not do is stop a loaded drum, which keeps spinning on its own inertia after the motor is cut.

01 · WHAT A LIMIT SWITCH IS

And why it is called an interlock

It is a switch tripped by closing the lid. Until it is, the HE-01V controller gets no signal and the extractor does not start: that is the interlock, and it is the same principle as on any machine with accessible moving parts.

It earns its keep above all when several people are working in the honey house and not all of them are watching the same drum. You still have to wait for the drum to stop before opening; the device covers the start, not the stop.

02 · ONLY MÁLAGA BEFORE 2024

And that date is a real cut, not an approximation

It is compatible exclusively with the SAF NATURA 6-frame reversible MÁLAGA built before 2024. The model changed that year and the parts are not interchangeable between the two.

It is not the only part in that family: our range also has the bottom bush (€41.28), the Ø 70 mm metal gear (€82.44) and the control-panel circuit board (€247.11), all for the MÁLAGA up to 2024. If you are ordering several, check your machine's year once and order them together.

03 · €157 ON A €2,000 MACHINE

Which puts it in proportion

The 6-frame MÁLAGA extractor is in our range at €2,061.98, so this spare is 7.6 % of the machine. Put that way, replacing a closure that has stopped making contact is not a decision to agonise over.

It comes with the button, the housing and the wiring with a connector ready for the control panel, so it is a direct replacement: there is nothing for you to splice.

04 · BEFORE YOU BUY

Check the year of your MÁLAGA: the cut-off is 2024.

✓ A GOOD FIT	Replacing the closure on a 6-frame MÁLAGA built before 2024: original part with the connector ready.
⚠ IT IS NOT A BRAKE	It cuts the start signal. A loaded drum keeps turning on inertia: you have to wait for it to stop.
✕ IT DOES NOT FIT THE NEW MODEL	The MÁLAGA changed in 2024 and the parts are not interchangeable between the two versions.

TECHNICAL DATA

Type	Safety closure with limit switch and interlock
Function	Interrupts the start signal while the lid is not closed
Controller	Sends the signal to the HE-01V control panel
Compatibility	SAF NATURA MÁLAGA 6-frame reversible extractor, pre-2024 only
Included	Device with button and housing, and wiring with connector
Part type	Original replacement
Weight	0.2 kg
Manufacturer	SAF Natura
Reference	SEC-MALAGA
