TO 77 MOUTH / GPI 2040 | 16 CAPS PER PACK |

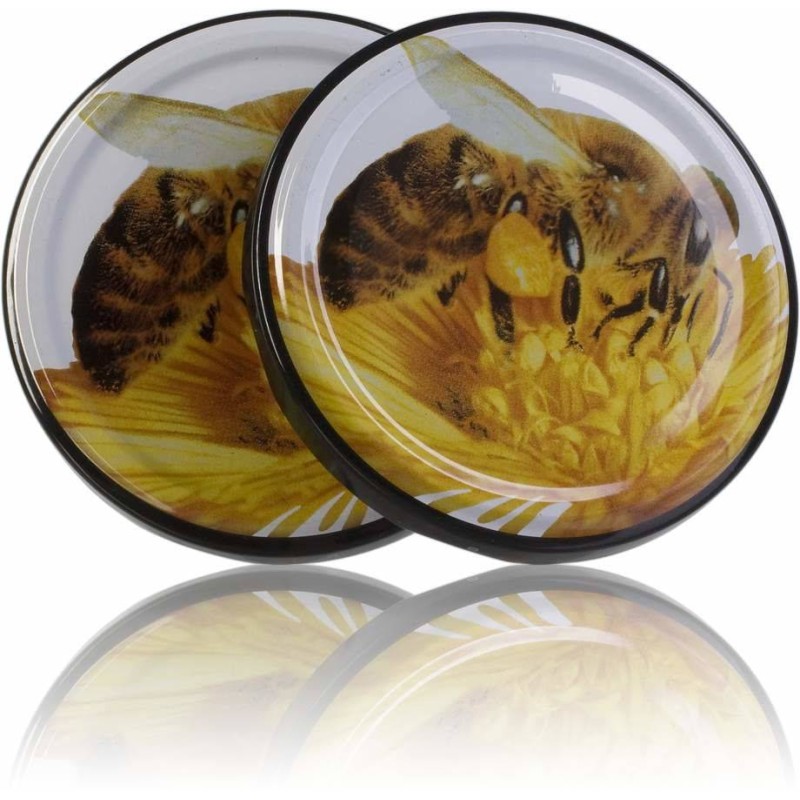

Pack of 16 Twist-Off TO 77 caps with a bee-on-flower litho print, for wide-mouth jars.
They match the GPI 2040 glass finish and carry six lugs: diameter alone is not enough — the jar has to be TO 77 and the lug count has to match for the cap to grip all the way round.
01 · COMPATIBILITY
It closes the TO 77 jars in the catalogue: V370 (0,5 kg), V720 (1 kg), V580, 12REF y 16REF. It will not do for TO 63, the other common honey-jar mouth, which takes four lugs instead of six. If you keep both types in the store, measure the mouth before ordering: the difference is hard to judge by eye, and a cap of the wrong size will not seal however hard you turn it.
02 · THERMAL LIMIT
Tecnocap states pasteurisation up to 100 °C for 60 min, and sterilisation up to 125 °C by prior agreement. That figure describes what the cap withstands, not a treatment honey needs: sustained heat raises HMF and lowers diastase, so for honey the cap goes on cold and the thermal limit only matters if you are processing something else. Nor does it replace validating the food, the jar, the headspace, the closing torque and each packer's actual cycle.
03 · HANDLING
The inner compound is what seals, and it spoils without showing it: keep the caps in their packaging until use and avoid damp, dust or any weight that deforms the skirt. A cap with a knocked rim seats badly and lets air through however hard you turn it. Before filling, check that both the jar rim and the cap are clean and undented. Declared storage: +5 to +35 °C at a maximum relative humidity of 70 %, for up to two years.
FROM THE APIARY
A Twist-Off does not screw on like a bottle cap: the six lugs ride up a short ramp and the whole closure is a quarter turn. Sit it flat until you feel it settle, turn to the stop and leave it there: carrying on does not seal better, it bends the lug and leaves the jar impossible to open. If it grates or feels like the thread has stripped, lift it off and set it down again — there is no thread to strip, a lug has ridden over its ramp.
04 · BEFORE YOU BUY
| ✓ FITS | TO 77 mouth jars: V370, V720, V580, 12REF and 16REF. |
| ✕ DOES NOT FIT | TO 63 mouths, which take four lugs instead of six. |
| System | Twist-Off TO 77, GPI 2040 |
|---|---|
| Contents | 16 caps |
| Decoration | Bee-on-flower litho print |
| Configuration | Six lugs |
| Material | Tinplate, 0,17 mm minimum, with food-grade sealing compound |
| Pasteurisation | Up to 100 °C for 60 min |
| Nominal unit weight | 11,60 g (±5 %) |
| Storage | +5 to +35 °C · max. 70 % relative humidity · up to 2 years |
