Compact yet pro-grade, the KUGA reversible extractor spins four brood or eight shallow frames automatically, thanks to its cassette baskets, 200 W ECO motor and SN_ALIM control box. An acid-proof Ø800 mm stainless drum with conical floor and 2″ gate delivers fast, splash-free harvests for growing apiaries.
2129 ,60 €
Tax included

Last items in stock
Quantity
Select options Options

Express Shipping

Return Guarantee

Safe payment

Buy it now and receive it between Friday, 20 November and Tuesday, 24 November with Ontime

Details of KUGA Honey Extractor Reversible 4/8-Frame Dadant/Langstroth

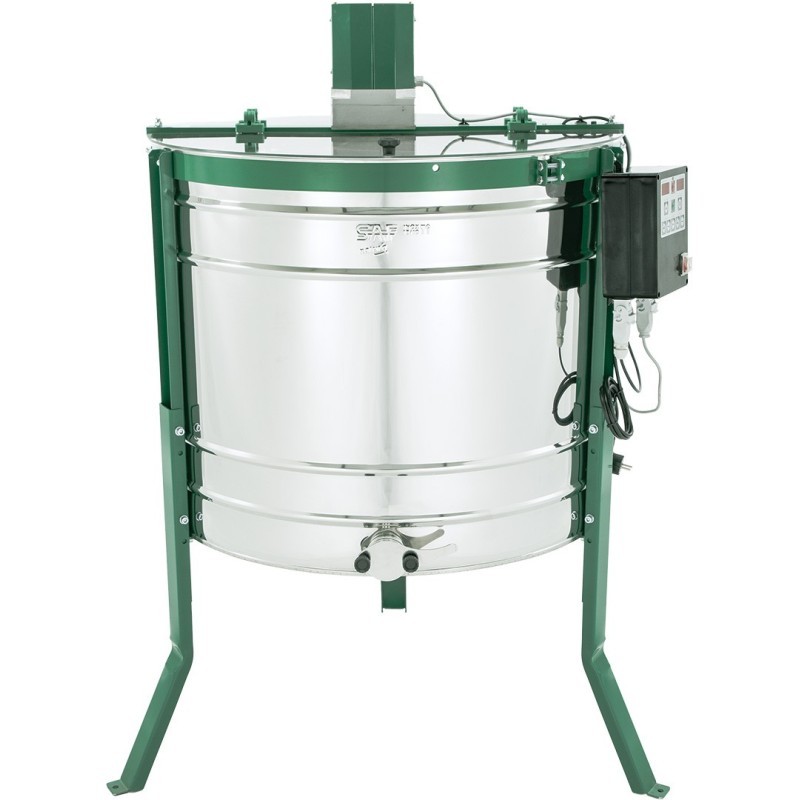

Automatic reversible extractor, Ø 800 mm with cassette baskets, a 200 W ECO motor and an SN_ALIM control box on 230 V, for 4 brood frames or 8 half supers.

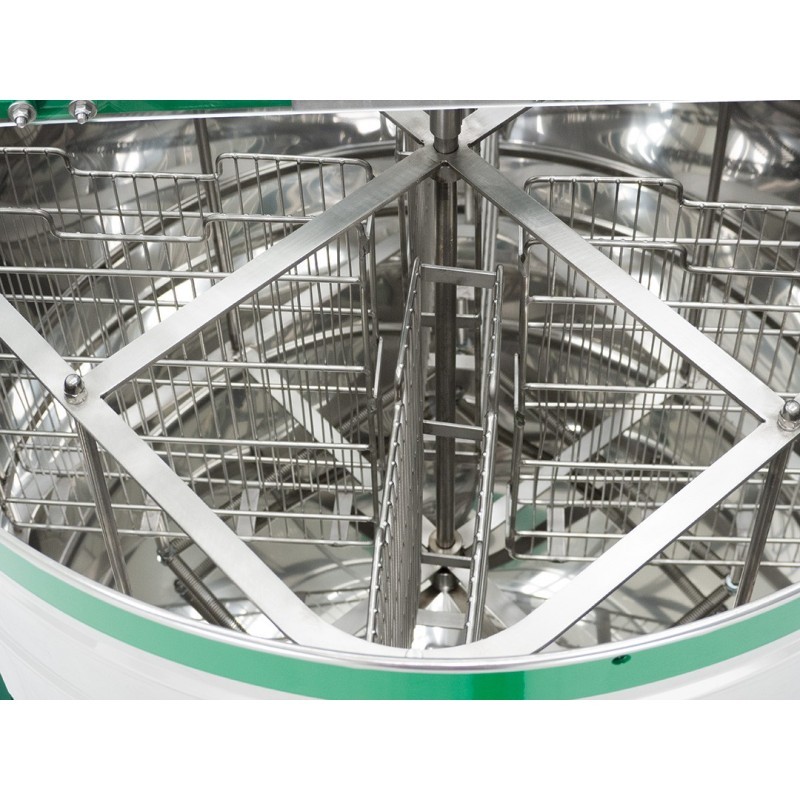

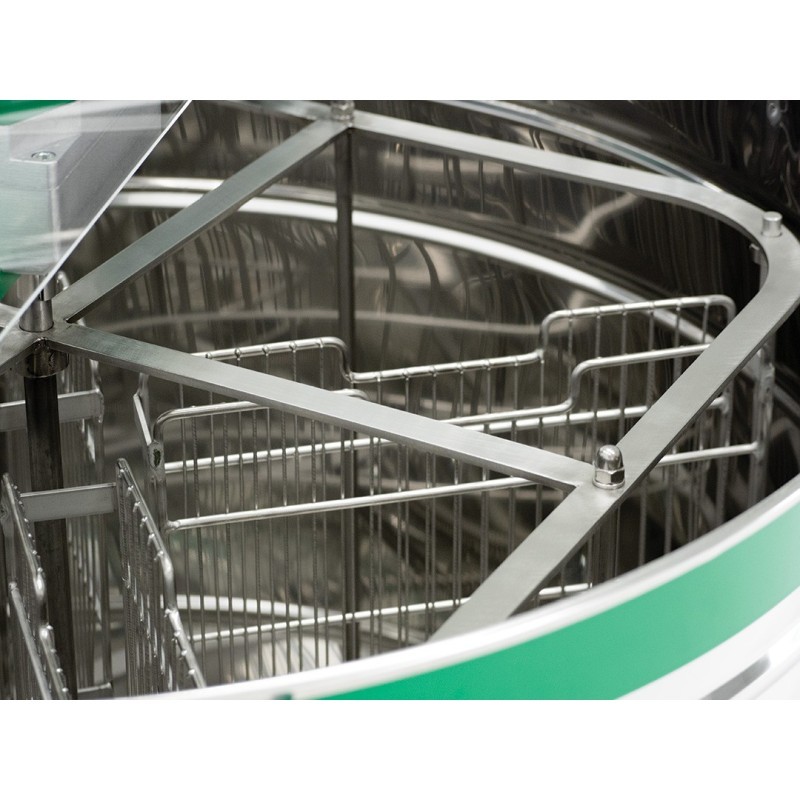

Four body frames, or eight half supers. Not the same as eight. The «4/8» in the name is not two capacities: it is the same machine loaded two ways. Each basket takes one brood frame or two half-super frames stacked. If you mostly extract supers, count eight; if you extract bodies, count four.

01 · IT DOES NOT TAKE LAYENS

And in Spain that is said before anything else

It is built for Dadant and Langstroth frames. The Layens frame does not fit: it would need adapters, or working only with standard half supers, which for a Layens outfit is not a solution.

The alternative is in our own range and the gap is smaller than it looks: the MÁLAGA universal 6-frame reversible is €2,061.98, barely €301.98 more, and it does take Layens as well as two more frames a load. If you work Layens, that is the comparison to make.

02 · HEATHER, AGAIN NO

Even if the old sheet used it as an example

Automatic reversing really pays on dense honeys: chestnut, eucalyptus, heavy rosemary. That is where emptying face by face, with the cells pointing at the drum wall, gets out what a radial leaves behind.

But Calluna heather honey is thixotropic: it gels inside the comb and no machine spins it out, however many programmes it has. It has to be stirred or pricked first. Worth knowing before buying with that flow in mind.

03 · THE LID STOPS THE CAGE

And here it is standard

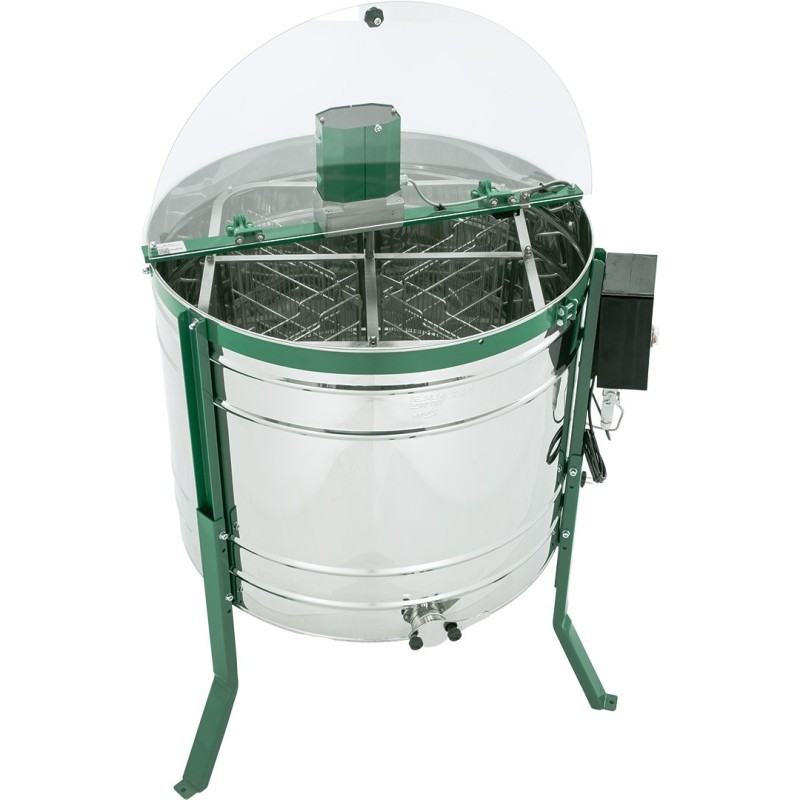

The lid is 4 mm plexiglass, so you can watch the cycle without opening, and opening it interrupts the drive. Worth pointing out, because it is not the norm in this range: on far more expensive honey-house machines, the stop-on-opening is a paid option.

One note no sheet usually makes: when you open the lid, the control box stops the cage, but a loaded Ø 800 drum does not stop dead. Hands only go in once the cage has stopped completely.

04 · IT PLUGS INTO 230 V

Which in this category is no small thing

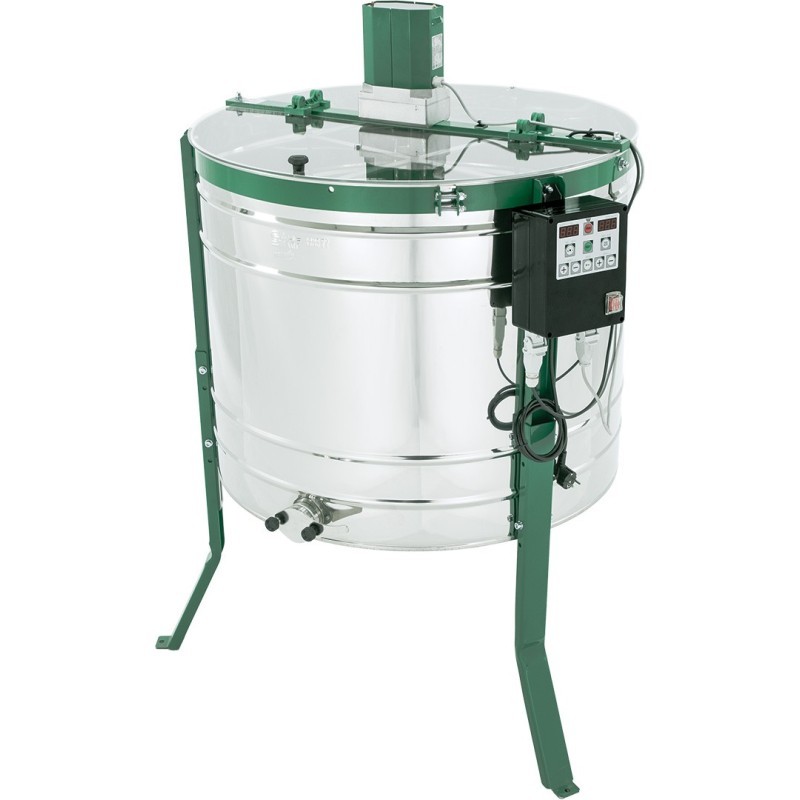

The motor is the 200 W ECO, running on 12 V DC, driven by the SN_ALIM control box, which plugs into single-phase 230 V: six factory automatic programmes, six more you programme yourself and two manual modes, one for each direction. In a honey house where the big machines call for three-phase, this one plugs in anywhere.

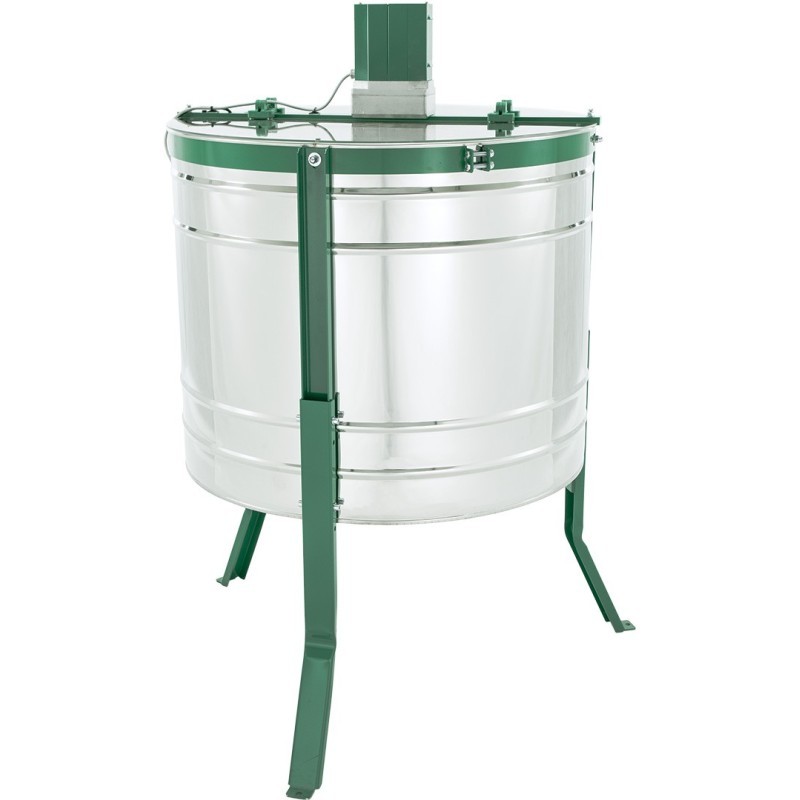

The drum is 304 stainless steel with a conical bottom, which stops honey standing when you drain it, and the outlet is a 2-inch valve. The adjustable legs give a total height of 1,350 to 1,390 mm: just enough for the valve to clear the settling bucket without decanting by hand.

05 · BEFORE YOU BUY

Dadant and Langstroth, single-phase, and no Layens.

✓ A GOOD FITStepping up from manual with Dadant or Langstroth: 4 body frames or 8 half supers, single-phase.
⚠ CALLUNA HEATHER WILL NOT COME OUTIt is thixotropic and gels in the comb: it must be stirred first, and no extractor fixes that.
✕ THERE IS NO LAYENS VERSIONDadant and Langstroth only. The universal 6-frame MÁLAGA is €301.98 more and does take it.

TECHNICAL DATA

TypeAutomatic reversible extractor with cassette baskets
Capacity4 Dadant or Langstroth brood frames, or 8 half supers
Drum diameterØ 800 mm, conical bottom
Material304 stainless steel, acid-resistant
MotorECO 200 W · 12 V DC
Supply230 V, single-phase
ControlSN_ALIM control box: 6 factory automatic programmes, 6 user programmes and 2 manual modes
Outlet2-inch valve
Lid4 mm plexiglass, cuts the drive when opened
Total height1,350 to 1,390 mm, adjustable legs
Formats not acceptedLayens
Weight58 kg
ManufacturerSAF Natura
ReferenceSN_74/K1
1 Item

Data sheet

Type
Dadant, Langstroth and supers
Functionality
Motorised
Basket type
Swing cage
