Original LYSON two-leaf hinge, with 2 inner plates and no screws, for the acrylic lids of CLASSIC, MINIMA and 720–900 mm BASIC extractors. Sold singly: most extractors take four. Not suitable for Ø500 and Ø600 BASIC with a moulded hinge, nor for PREMIUM.
Details of Hinge for LYSON extractor lids
Original LYSON two-leaf hinge for the acrylic lids of their CLASSIC, MINIMA and 720–900 mm BASIC extractors.
Most extractors take four, two per half lid, and the Ø1000 and Ø1200 mm CLASSIC take eight. Count the ones on your lid before ordering: they are sold singly.
01 · COMPATIBILITY
Check the hinge before the model

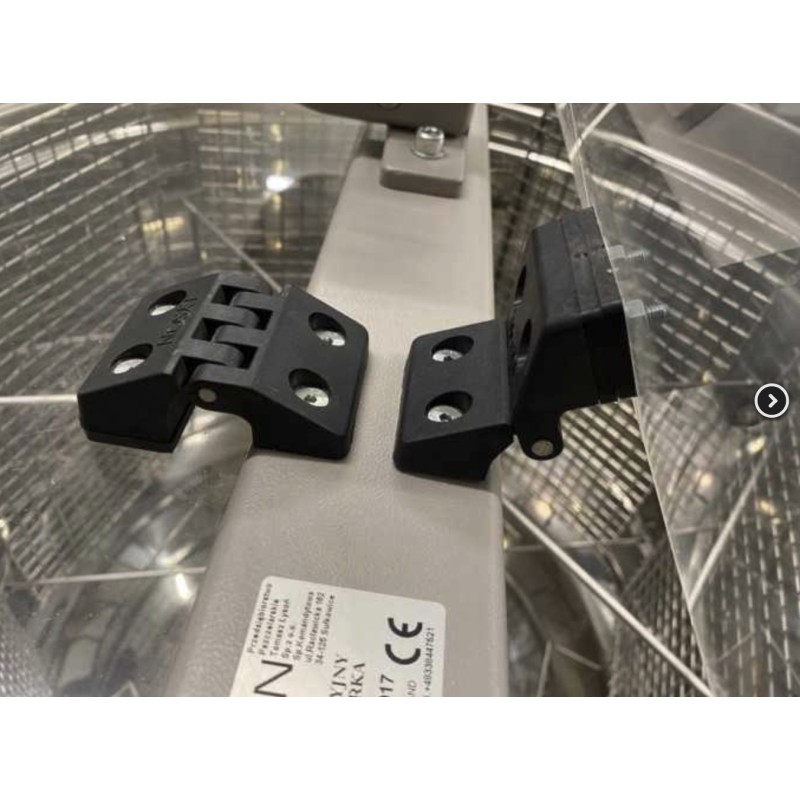

This is the two-leaf hinge: one leaf screws to the top bar and the other to the lid. If yours looks like this, it is the one. It is fitted to the CLASSIC, the MINIMA, the 720–900 mm BASIC and the Ø650 cassette BASIC (W223BBF_RL).
The Ø500 and Ø600 BASIC with a universal basket (W2027BB, W2029BB, W2030BB and W224BB) use a different one: a moulded hinge that sits astride the top bar, and this one does not fit them. Nor does it fit the PREMIUM, which use stainless steel hinges.
02 · ASSEMBLY
A sandwich, and don't overtighten
The hinge goes on the outside and the two inner plates inside: the screws pass through the acrylic and sandwich it, spreading the load across the whole plate instead of concentrating it at the hole.
The care that saves the lid: acrylic cracks if you overtighten. Tighten until the part is firm, and stop there. A star crack around the screw cannot be repaired, and the lid costs many times what the hinge does.
03 · BEFORE YOU BUY

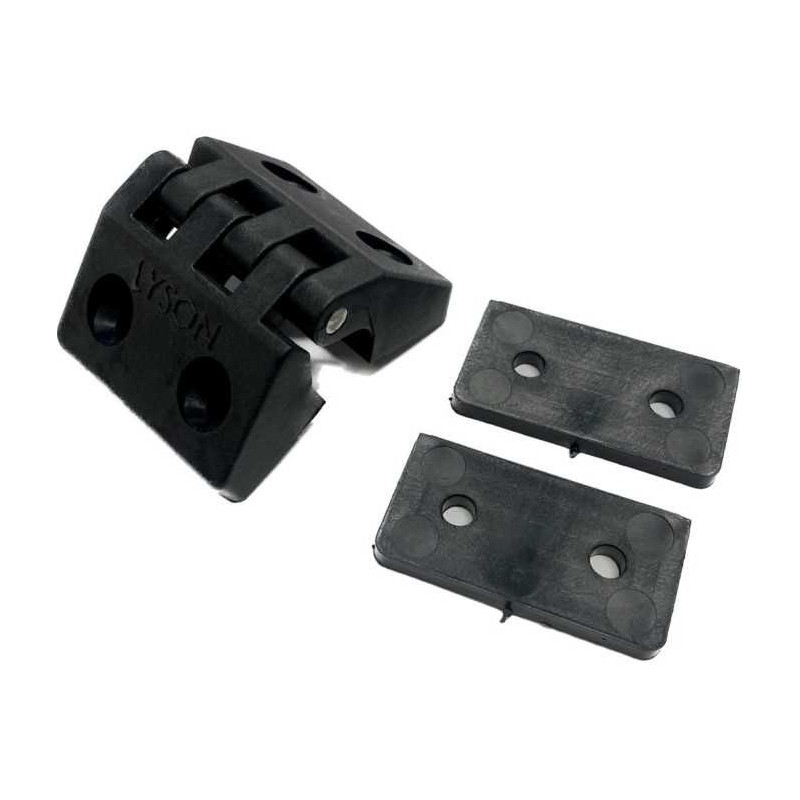

Each unit comes with the hinge and its two inner plates.
| ✓ FITS | Acrylic lids on LYSON CLASSIC, MINIMA and 720–900 mm BASIC extractors with a two-leaf hinge. |
| ✕ DOESN'T FIT | Ø500 and Ø600 BASIC with a moulded hinge (W2027BB, W2029BB, W2030BB, W224BB) and PREMIUM, with stainless steel hinges. |
| ⚠ NOT INCLUDED | The screws. |
SPECIFICATIONS
| Product | Replacement hinge for extractor lid |
|---|---|
| Brand | LYSON |
| Type | Two-leaf, screwed to the top bar and to the lid |
| Each unit | 1 hinge and 2 inner plates |
| Needed | 4 on most extractors (2 per half lid); 8 on the Ø1000 and Ø1200 mm CLASSIC |
| Material | Black plastic |
| Compatible with | LYSON CLASSIC, MINIMA, 720–900 mm BASIC and Ø650 cassette BASIC |
| Not compatible with | Ø500 and Ø600 BASIC with a moulded hinge; PREMIUM |
| Screws | Not included |
| Reference | 43110207 |
