Professional frame wax melter

To order

Share in WhatsApp

10990 ,00 €

Tax included

FUN112 stainless-steel centrifugal melter for 60 frames in 4 perforated baskets, with automated boiler and dry steam at 165 °C. SecarPolen gives 15 min start-up and 10–12 min melting as references; final installation and supply are fixed by quotation.

10990 ,00 €

Tax included

Quantity

Select options Options

Express Shipping

Return Guarantee

Safe payment

Details of Professional frame wax melter

FRAMES

BASKETS

15 min

START-UP

10–12 min

MELTING REFERENCE

Professional FUN112 centrifugal frame-and-wax melter for processing up to 60 frames in four perforated baskets, combining dry steam and centrifugation in one cycle.

SecarPolen publishes stainless-steel construction, an automated boiler with automatic water feed, speed control, timer and safety systems. The final installation configuration is set by quotation.

01 · LOADING

Four baskets for balanced batch processing

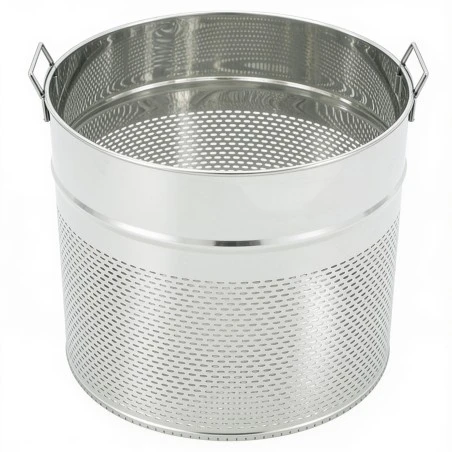

Frames are distributed between four removable perforated baskets. A balanced load reduces vibration and helps steam reach the material more evenly. Do not mix frames in one cycle when their construction, condition or components require incompatible treatment. Before loading, remove only the items specified in the manual for the supplied unit and ensure that no loose component can move within the chamber.

02 · CYCLE

Steam releases the wax and centrifugation completes separation

The manufacturer states dry steam at 165 °C, about 15 minutes to start the generator and 10 to 12 minutes to melt the frames. These are equipment references, not guaranteed throughput: load, starting temperature, amount of wax, frame condition and boiler setup all change the result. Speed control and timer adjust the centrifugal phase; the outlet requires a suitable vessel for collecting hot wax.

03 · SAFETY AND CLEANING

Hot steam and a rotating mass require a procedure

Operation requires training, protection from heat and steam, a stable floor and unobstructed access to controls. Do not open the chamber or handle the baskets until the cycle has ended and the machine reaches the safe condition defined in its manual. Afterwards, remove residue before it hardens, with the equipment isolated and without tools or products that could damage surfaces or safety devices.

04 · BEFORE YOU BUY

Define the installation before manufacture

The official page confirms operating principle, capacity and times but does not publish dimensions, weight, electrical power, diesel consumption or full installation requirements. The quotation must specify electrical supply, boiler and burner, water connection and quality, discharge, ventilation, dimensions, weight, accessories, commissioning and safety documentation. The old “50k” entry in this store has no complete unit and must not be used to size the installation.

✓ CONFIRMED	60 frames, 4 baskets and dry steam at 165 °C.
✕ NOT DEFINED	Power, dimensions or consumption inferred from the old “50k”.
⚠ BY QUOTE	Final installation, utilities, accessories and commissioning.

TECHNICAL DATA

Reference	FUN112
Manufacturer	Gabriel Sánchez · SecarPolen
Capacity	60 frames
Baskets	4, perforated and removable
Material	Stainless steel
Steam	Automated boiler · automatic feed · 165 °C
Controls	Speed control, timer and safety systems
Published times	15 min start-up · 10–12 min melting
Supply	Configuration and installation confirmed by quotation
