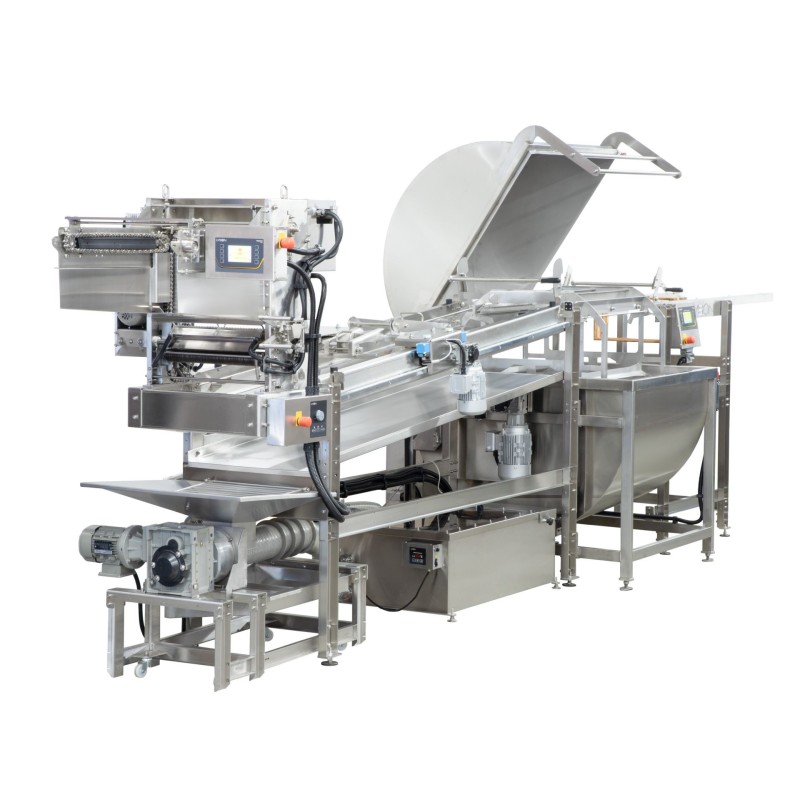

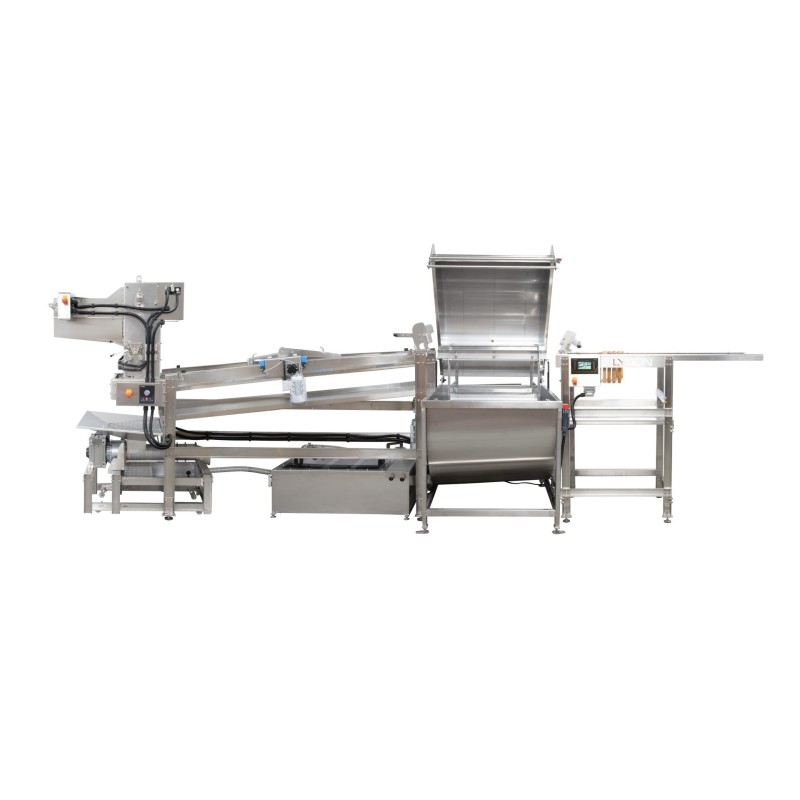

Honey Extraction Line 40 Frames LYSON PREMIUM

The Honey Extraction Line for 40 frames – PREMIUM version with uncapping machine represents a technological breakthrough in modern beekeeping, designed for professional operations seeking to maximize efficiency and guarantee the highest honey quality during harvest.

What need does it address in beekeeping?

In medium to large operations, manual uncapping, extracting and filtering limit productivity and increase labor costs. This line fully automates the processes of uncapping, honey and wax separation, extraction, filtering, and pumping, saving time, reducing effort, and significantly improving overall efficiency.

Main features

• Full automation: uncapping, extraction, filtering, and pumping handled automatically.
• High capacity: up to 240 frames per hour, ideal for professional-scale production.
• Exceptional honey quality: effective wax separation and thorough filtering ensure premium final product.
• Electronic temperature control: precise regulation of heating elements like uncapping knives and honey filters.
• Horizontal honey extractor (40 frames): advanced HE-03 controller with automatic programs.
• Ease of use: intuitive digital control panels across all modules.
• Robust construction: made from acid-resistant stainless steel.

Who is this line designed for?

This line is targeted at medium-sized apiaries, professional honey processing facilities, and cooperatives that value time, efficiency, and premium product quality. It is perfect for professionals seeking a reliable, high-output harvesting solution.

Innovative solutions

• Digital controllers: on the uncapping module, extractor, sump tank, and pump.

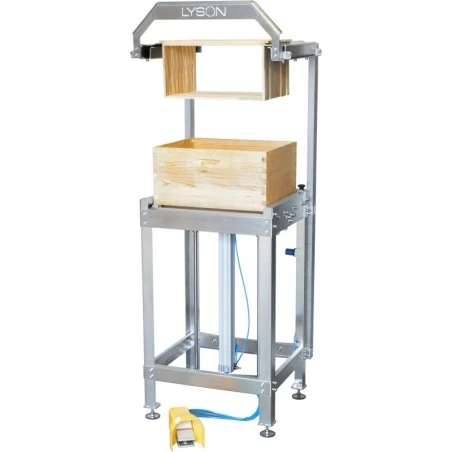

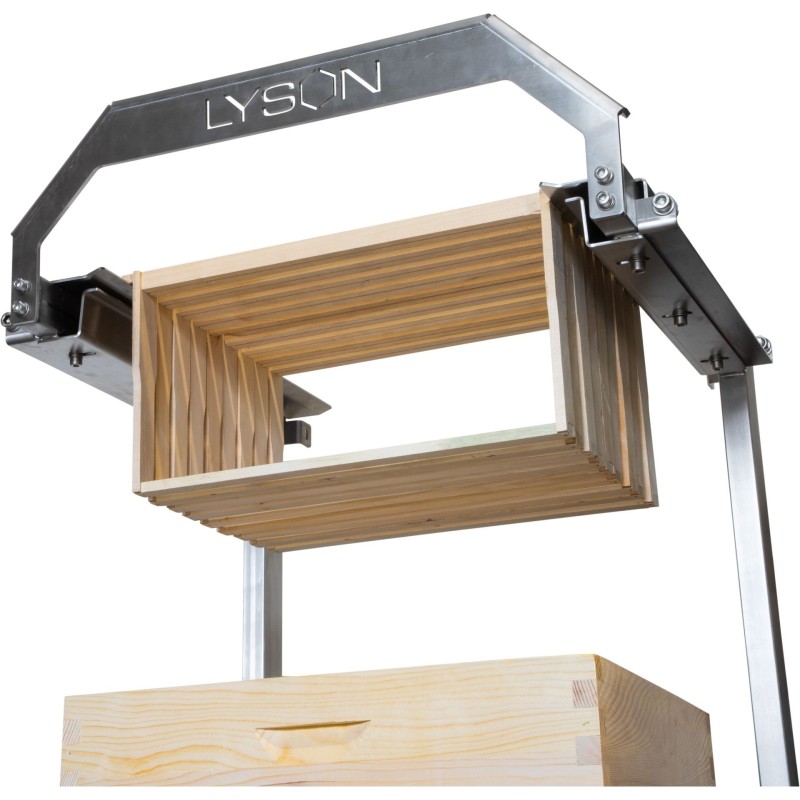

• Optional pneumatic frame ejector: enables automatic frame loading onto the uncapping module.
• Integrated heating systems: closed-circuit heated knives and insulated horizontal filter tanks.

Line components

• Automatic uncapping module with frame feeder.
• Electric frame feeder.
• Cappings extruder (wax press).
• Horizontal honey extractor for 40 frames with HE-03 controller.
• Frame receiver.
• Honey sump with filtration.
• Honey transfer pump.

Main technical data

• Uncapping capacity: 4–6 frames per minute.
• Extraction capacity: up to 240 frames per hour.
• Line dimensions (Length x Width x Height): 5547 x 1533 x 1799 mm.
• Minimum required room dimensions: 5547 x 2096 x 2136 mm (including working space).
• Electrical options: specify at order: 230V 32A or 400V 16A.
• Material: stainless steel.
• Options: pneumatic frame ejector system (adds 1000 mm to the line length).

Additional information

• Transported in wooden crates (cost not included).
• The line is delivered for self-installation.
• All modules feature intuitive digital controllers.
• Cutting-edge technology to maximize efficiency with minimal manual effort.

Important: This extraction line is designed for professional beekeepers who want to automate their honey harvest, ensuring high output, superior quality, and long-term profitability.
