Self-priming flexible vane pump. Adjustable flow up to 1,500 L/h. Ideal for honey transfer, recirculation and creamy honey. Made in Poland.

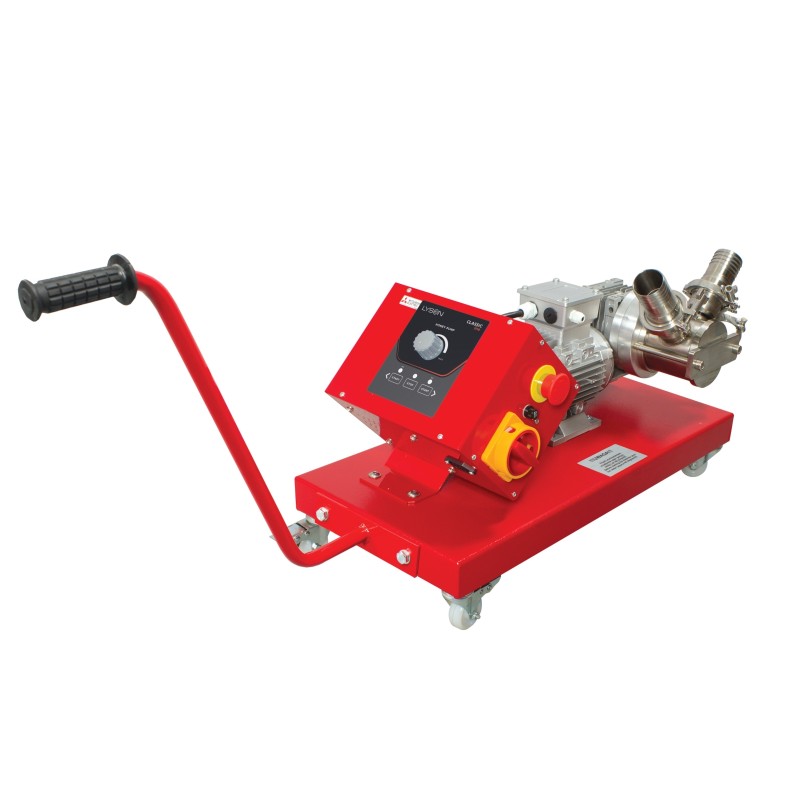

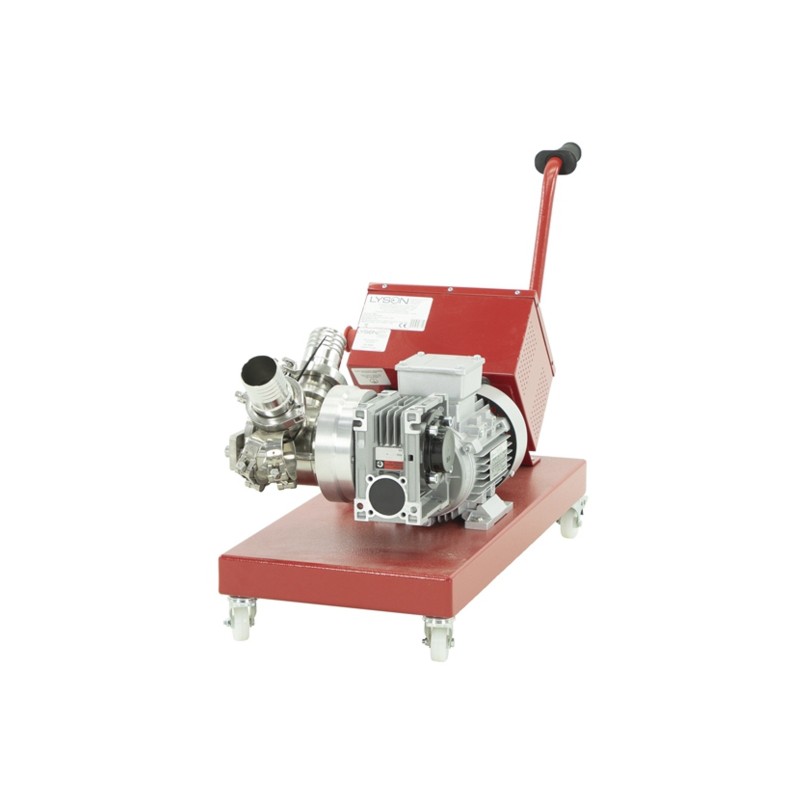

Self-priming 1.5 kW flexible-impeller pump with inverter and direction selector: up to 1,500 l/h, on a wheeled base.
The inverter is not an extra: it is what makes this pump usable on honey. An impeller pump at full tilt beats air into the honey and emulsifies it. With adjustable speed and a direction selector you work at the minimum needed, which is exactly how honey should be moved. Mitsubishi electronics.
01 · SLOWLY, OR IT BEATS IN AIR
The flexible-vane rotor moves honey steadily and gently as long as it goes slowly. Speed it up and it creates turbulence, draws in air and the honey comes out emulsified: the look in the jar changes and there is no fixing it afterwards.
That is why the inverter is the heart of the machine and not an ornament. Our range has impeller pumps at less than half what this one costs, but they run at a single speed. Here you pay to be able to go slow.
02 · RUN IT DRY AND IT BURNS
The flexible vanes are lubricated by the product itself. If the pump turns with no honey inside, friction destroys them in no time: never start it without checking the circuit is primed, and go over seals and hoses before every season.

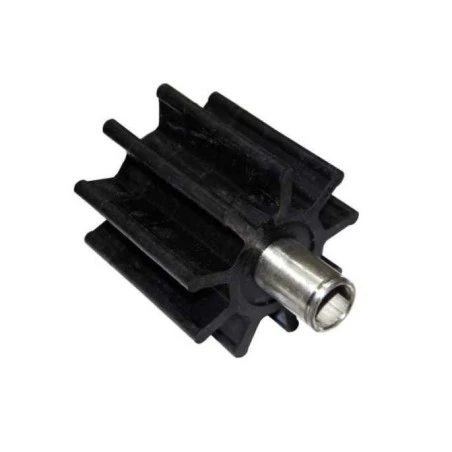

The impeller is also a consumable: it is replaced when flow drops or it starts to leak. Our range carries a spare flexible impeller, and it is worth having one before the harvest arrives, not after.
03 · IMPELLER OR PROGRESSIVE: CHOOSE
This one is flexible impeller: self-priming, reversible and made for clean honey, fluid or partly crystallised. It is the pump that goes between settling tank, maturer and filler.

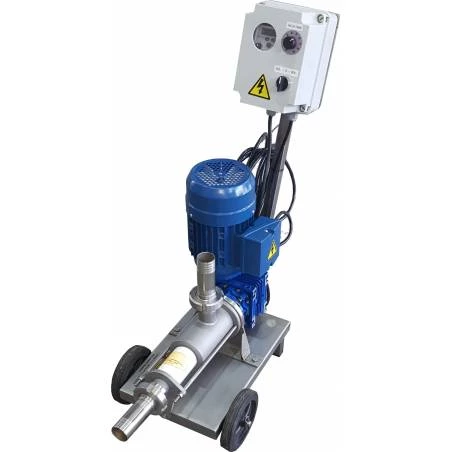

If what you are moving is honey-and-cappings slurry, the right one is a progressive cavity pump, which swallows solids without punishing itself. Our range has both and they do not compete: tell us what you will be pumping and we will tell you which.
04 · 1,500 L/H IS HONEY AT 30 °C
Maximum stated flow is 1,500 l/h, and that figure comes with a condition: fluid honey at 30 °C. With holm oak honey in October and the room at fifteen degrees, real flow falls a long way.
That is not a fault: it is how honey behaves. When sizing, count on the honey you will actually move and not on the catalogue's. The motor is 1.5 kW single-phase at 230 V, so the installation is not the problem.
05 · RECIRCULATING REFINES, NOT CREAMS
Circulating honey in a loop at 25-30 °C for 48-72 hours breaks down large crystals and the texture turns finer. It is a Central European technique, an alternative to the stirrer, and this pump does it well.
But that is refining the crystal, not a creamer's full cycle: the fine set still needs resting at a lower temperature. And note those 25-30 °C sit comfortably below the honey's ceiling: do not go above to speed things up.
06 · BEFORE YOU BUY
Think what you will be pumping: clean honey or cappings slurry.
| ✓ A GOOD FIT | Transfer and recirculation of clean honey: self-priming, reversible and speed-adjustable. |
| ⚠ NEVER RUN IT DRY | The vanes are lubricated by the honey. With no product inside they burn, and the impeller is a consumable. |
| ✕ NOT FOR CAPPINGS SLURRY | To move honey with cappings, the right pump is a progressive cavity one. |
| Type | Flexible impeller, self-priming |
|---|---|
| Motor | 1.5 kW, single-phase at 230 V |
| Control | Speed inverter and direction selector, Mitsubishi Electric |
| Maximum flow | Up to 1,500 l/h, with fluid honey at 30 °C |
| Reversible | Yes |
| Applications | Transfer, recirculation and crystal refining |
| Recirculation for texture | 25 to 30 °C for 48 to 72 hours |
| Mounting | Mobile base with wheels and handle |
| Impeller | Wear part, spare available in our range |
| Weight | 25 kg |
| Manufacturer | Lyson, Poland |
| Reference | W20210GNF |
Data sheet
1 file available
Self-priming flexible vane pump. Adjustable flow up to 1,500 L/h. Ideal for honey transfer, recirculation and creamy honey. Made in Poland.
