BroodMinder-W4 scale: two aluminium bars with four 100 kg load cells that go under the hive and stay all year, transport included. It weighs every hour, stores about 7,000 readings and sends them by Bluetooth to the app or the Cell Hub; 400 kg, ±100 g per 10 °C according to the maker, AA lithium cells for up to five years. Hub and sensors separately.
399 .00 €
Tax included

Stock
Quantity
Select options Options

Express Shipping

Return Guarantee

Safe payment

Details of BroodMinder-W4 Aluminium Hive Scale

400 kg

CAPACITY, FOUR 100 KG LOAD CELLS

±100 g

PER 10 °C, ACCORDING TO BROODMINDER

5

YEARS ON TWO AA LITHIUM CELLS, UP TO

7,000

READINGS IN MEMORY, ONE PER HOUR

BroodMinder-W4 full hive scale: two aluminium bars of 50 × 4.2 × 4 cm with four 100 kg load cells that slide under the hive, on a wooden or metal pallet, and stay in place all year, transport included. It logs weight every hour, stores about 7,000 readings and sends them by Bluetooth to the app or the BroodMinder-Cell Hub (2393); two AA lithium cells for up to five years. About 2.6 kg.

The weight curve tells what happens inside without opening: when the flow starts, whether they draw on stores or have swarmed, and which apiary is worth the trip.

01 · MADE FOR MIGRATION

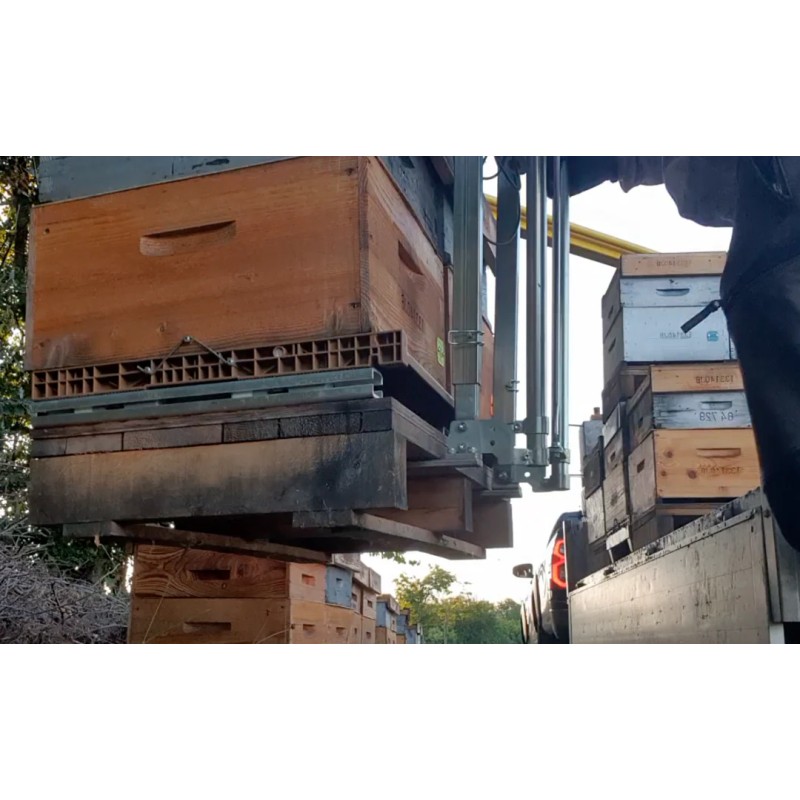

Stays under the hive, even on the truck

The two independent bars support the hive front and back, so nothing is dismantled between blooms: installed once, it travels in place. It works on a wooden or metal pallet and in any position, horizontal or vertical, with no levelling or centring; for Nicot bases there are optional centring pins. The grooved surface stops the hive sliding when loading, and folded it fits under the seat.

02 · THE DATA

One reading an hour; Bluetooth or Hub

It logs weight every hour (configurable to 15 minutes) and stores about 7,000 readings. When you pass by, the BroodMinder Bees app downloads the history by Bluetooth Low Energy, at 30 m or more; with a BroodMinder-Cell Hub (2393) at the apiary, the data go up by mobile network and the curve shows on phone or computer without travelling. Crossed with a brood sensor (2390, 2399), the app computes its Nectar Index and compares hives. It does not replace the visit: it tells you which apiary to go to and with what kit.

03 · WHAT YOU READ

Flow, stores, swarming and a lost colony

A rise of 1-2 kg a day is a strong flow and time for supers; a gradual drop in winter is store consumption and marks when to feed; a sudden drop in season is the signature of a swarm; and a flat weight following outside temperature warns of a dead colony. The accuracy of ±100 g per 10 °C, according to BroodMinder, follows these big movements with room to spare. With three hives per site, one strong, one average and one weak, the data represent the rest; the best one alone misleads by optimism.

04 · WHAT IT CARRIES

Maintenance-free aluminium, 400 kg, five-year cells

Aluminium structure that stands the weather without maintenance and carries up to 400 kg, room for a Dadant with two supers in full flow. Two AA lithium cells included, up to five years according to the maker. The K2 PRO kit (2396) pairs it with sensors and Hub; the anti-theft GPS (1031) is another thing: this scale does not locate.

05 · BEFORE YOU BUY

The scale is supplied with its two bars and cells; Hub, brood sensors and centring pins come separately.

✓ FITSMigratory beekeepers and anyone with apiaries far from home who wants to decide the trip on the weight curve and leave the scale in place all year.
✕ DOESN’T FITAnyone after anti-theft location (1031) or weighing without an app: this scale talks by Bluetooth.
⚠ NOT INCLUDEDHub, sensors or centring pins.

SPECIFICATIONS

ReferenceBRM_49-W4 (BroodMinder)
TypeFull hive scale, 2 bars, 4 load cells of 100 kg
Dimensions2 bars of 50 × 4.2 × 4 cm
Capacity400 kg
Accuracy±100 g per 10 °C (BroodMinder)
Cells2 × AA lithium, included; up to 5 years
MemoryAbout 7,000 readings; one per hour, adjustable to 15 min
ConnectivityBluetooth Low Energy, 30 m or more; BroodMinder-Cell Hub (2393)
AppBroodMinder Bees and MyBroodMinder.com
InstallationUnder the hive, no levelling; wooden or metal pallet; optional Nicot pins
WeightAbout 2.6 kg
CompatibleSensors 2390 and 2399; K2 PRO kit 2396
12 Items

Data sheet

Material
Metal
Here are some more products you may like
Lorenzo Pons
Lorenzo Pons
Aeronautical engineer. Dedicated to beekeeping innovation for 10 years.

I designed this scale with migratory beekeepers in Europe in mind. I wanted a product that is lightweight (2.5 kg), easy to handle (like carrying a baguette under your arm), and at the same time sturdy (supports up to 400 kg).

The best part about the W4 is that it does not depend on the hive’s leveling, meaning you can install it without worrying about the terrain’s inclination. And if you place it at two in the morning after hours of travel, you can do it literally with your eyes closed.
