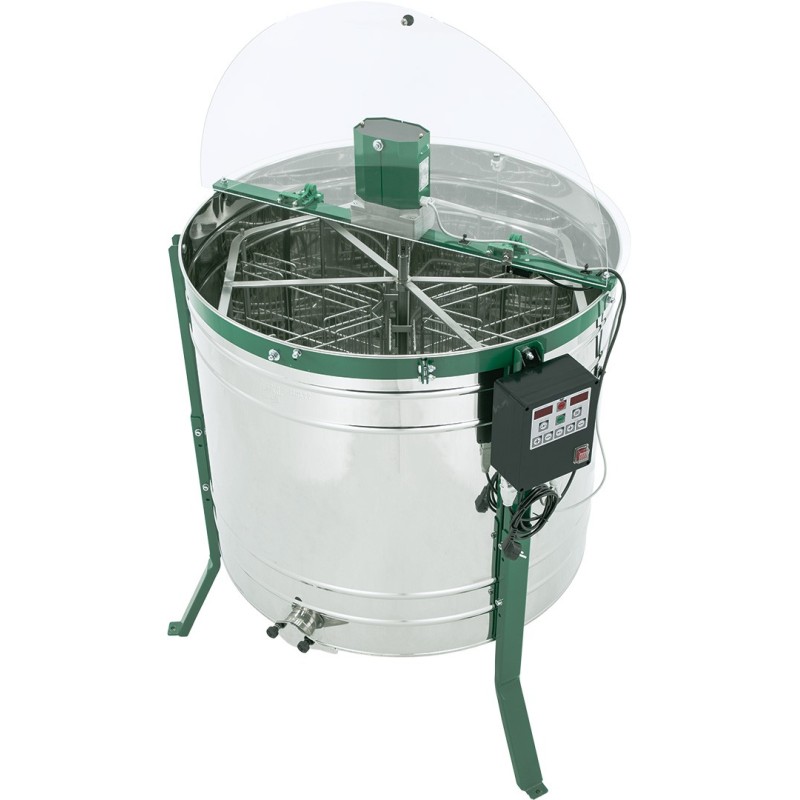

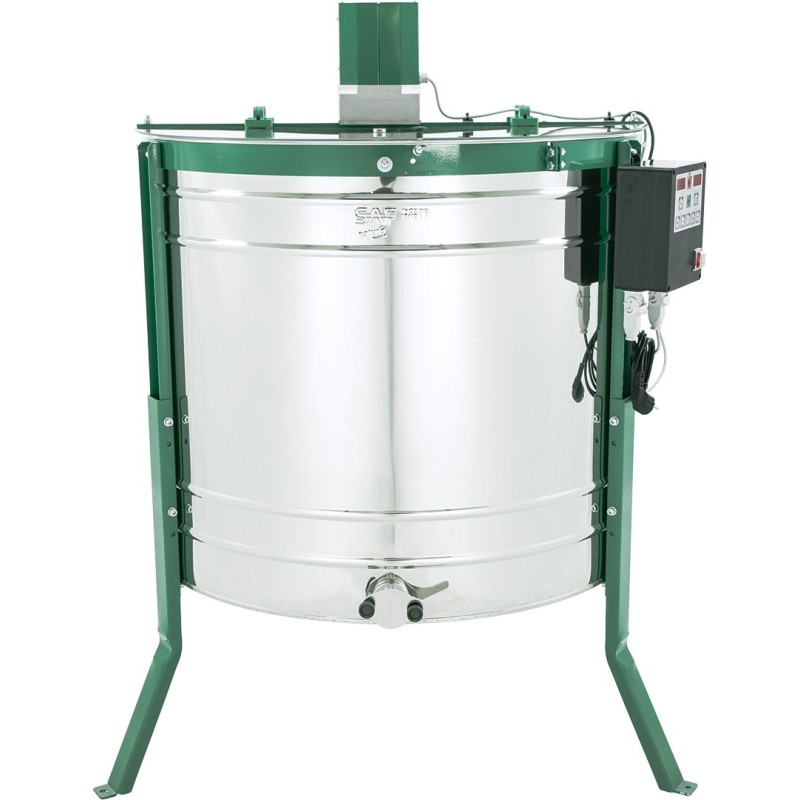

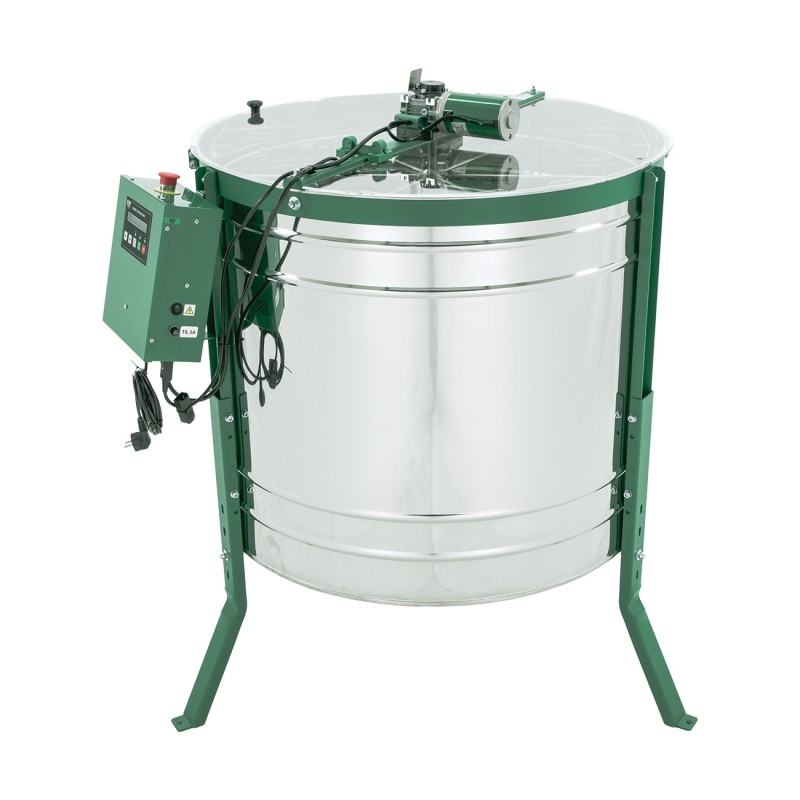

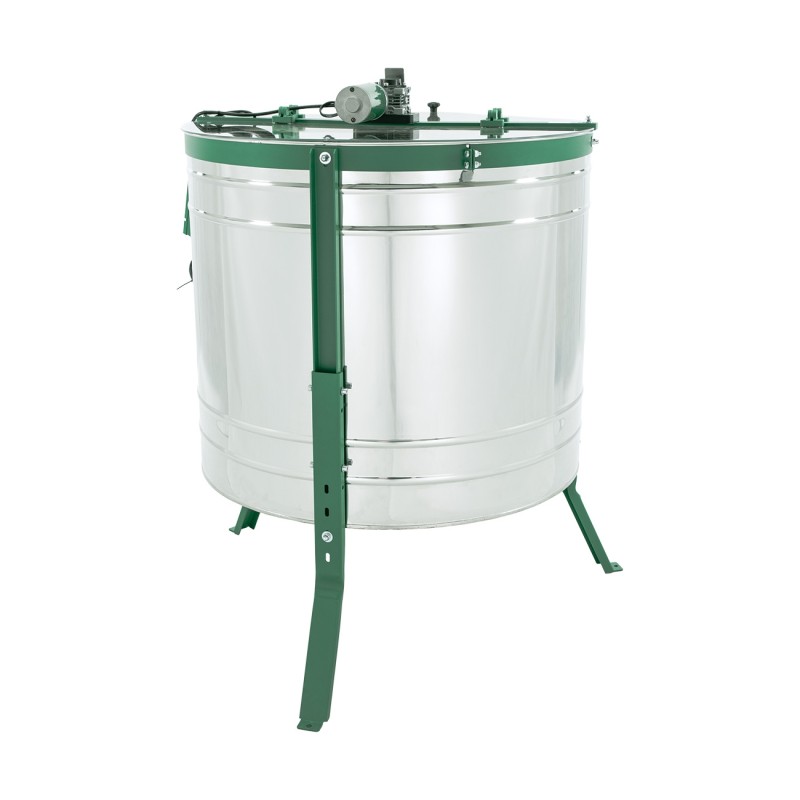

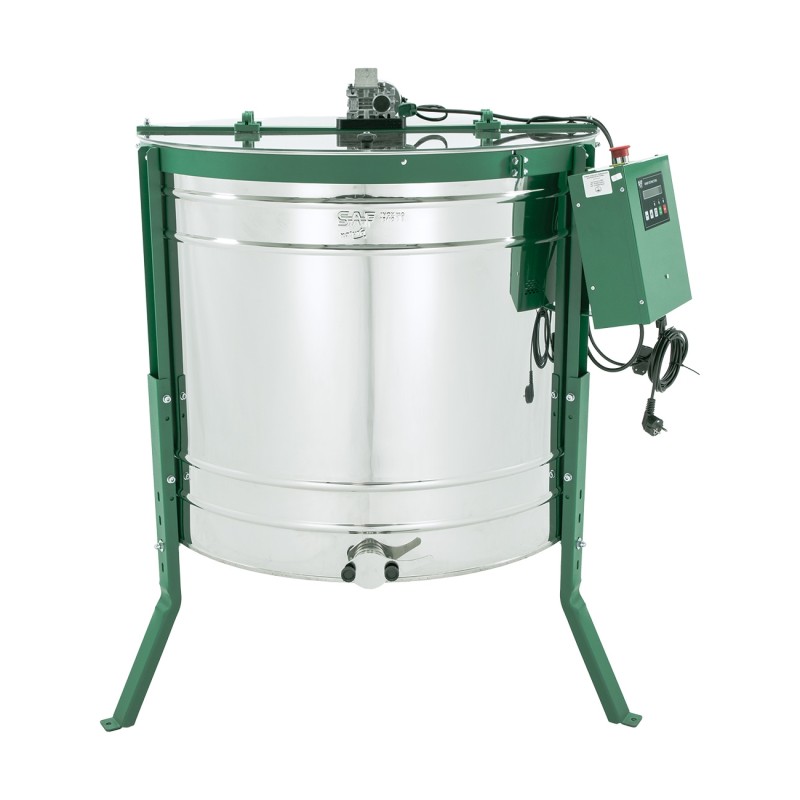

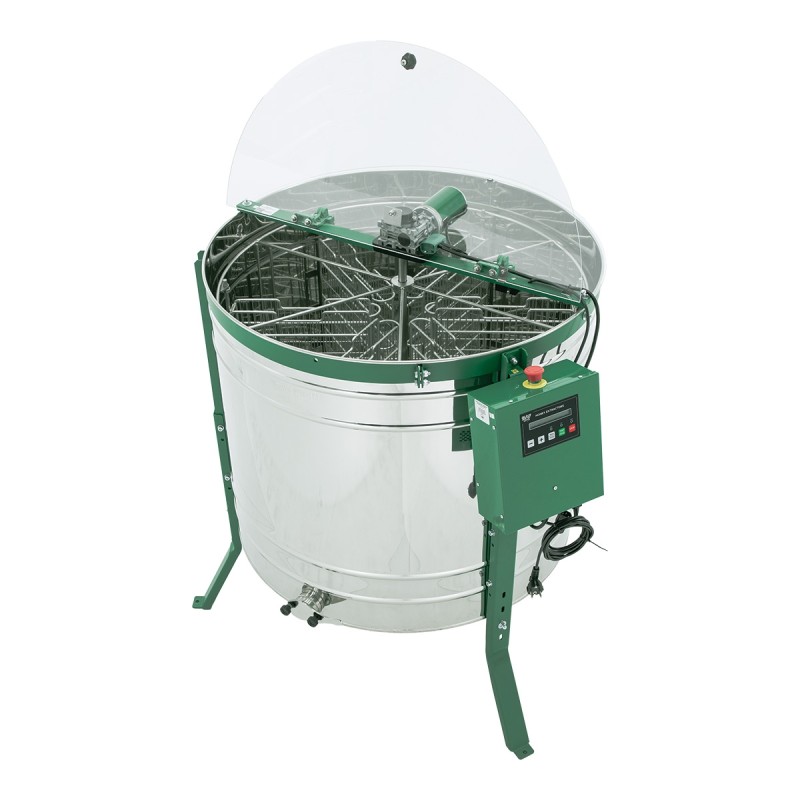

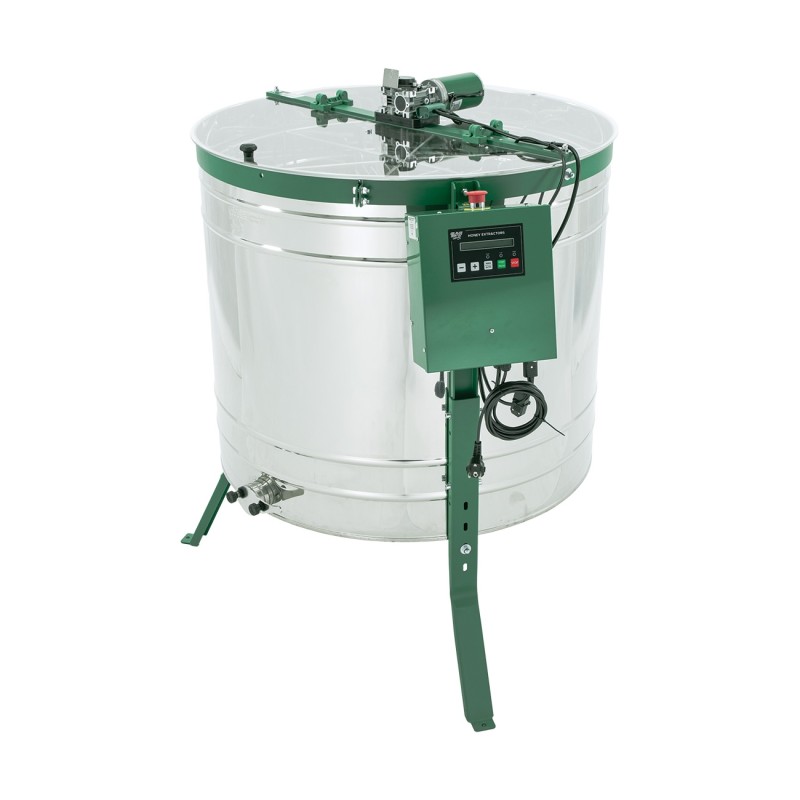

Honey Extractor Self turning MALAGA® 6F

Universal extractor with reversible tangential basket, designed for beekeepers working with multiple frame types. The MALAGA model is a proven classic: with over 20 years of presence in the Spanish market, it has now been upgraded and reinforced following the acquisition of SAF NATURA by LYSON.

Thanks to its reversible tangential cage system, this extractor can empty both sides of the comb without having to turn the frames manually. This not only saves time but also offers stronger extraction thanks to the greater centrifugal force of tangential systems.

Its reinforced basket is compatible with:

• 6 Layens frames
• 6 Dadant Blatt / US brood frames
• 12 medium-depth frames (48×16 cm)
• 6 Langstroth frames

Made of food-grade 18/10 stainless steel, with powder-coated legs and rim, 4 mm thick plexiglass lid with safety lock, and stainless steel Ø50 mm flap valve. The conical bottom ensures complete honey drainage and easy cleaning.

It runs on 230 V single-phase with a SAF Natura 150 W motor (upgraded version, previously 80 W) and SN_ALIM control panel with pre-programmed automatic cycles. Safety system includes a reinforced lid lock with microswitch.

This upgraded model includes:

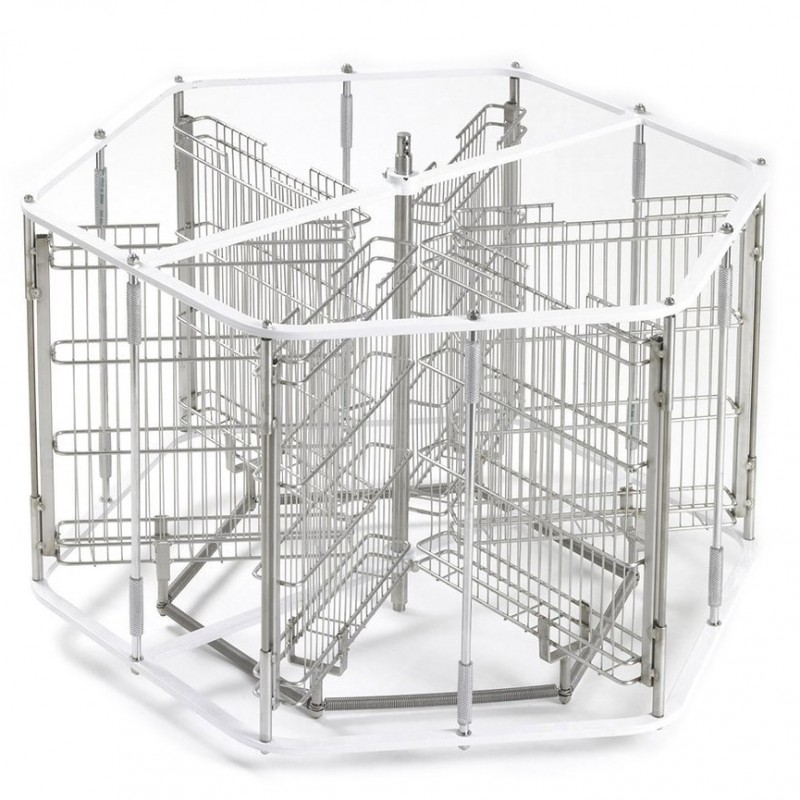

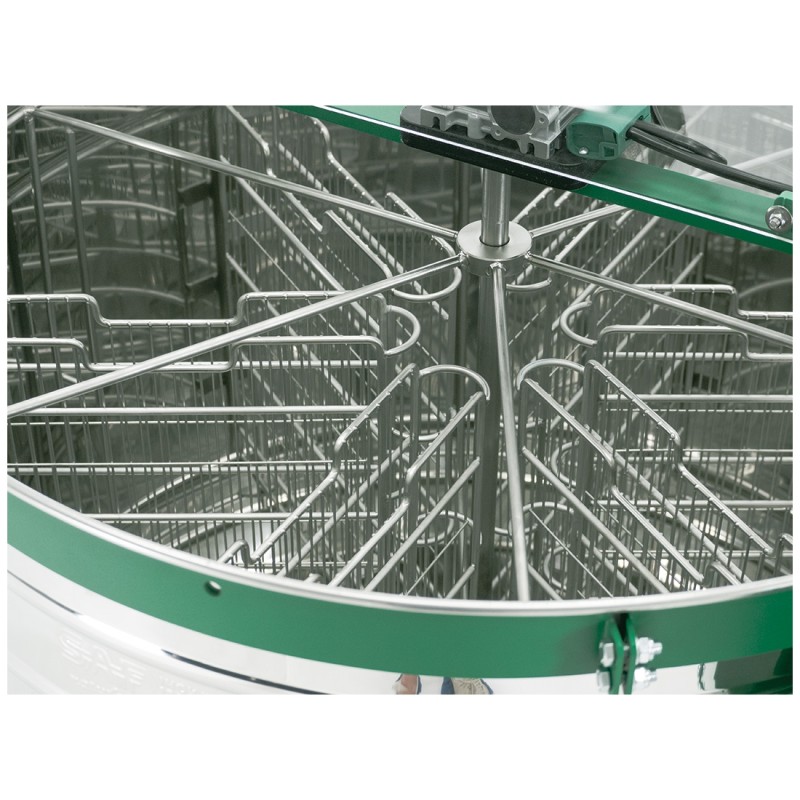

• Reinforced basket with flat 5.2 mm rods and 20×20 mm mesh
• Microswitch lid lock
• 150 W motor (previously 80 W)
• Reinforced legs
• Powder-coated steel top rim

Technical specifications:

• Capacity: 6 Layens, 6 Dadant Blatt / US, 12 medium-depth frames
• Basket type: Reversible tangential
• Drum diameter: Ø900 mm
• Drum height: 800 mm
• Drum material: 18/10 stainless steel
• Lid: 4 mm plexiglass with plastic hinges
• Valve: Stainless steel Ø50 mm flap valve
• Total height: 1350-1390 mm (depending on leg position)
• Valve height from ground: 460-500 mm
• Motor: 150 W, 230 V
• Controller: SN_ALIM
• Weight: 68 kg
• Manufacturing: Europe (Italian design, Polish production)
• Warranty: 2 years
