47 cm BLATT FRAME | 25 mm TIMBER THICKNESS |
The French-measure Dadant, complete and assembled: a 10-frame brood box, a 9-frame super, a metal roof and your choice of floor.
Galician pine dried to 12 % moisture, heat-treated and finished with linseed oil — no chemicals. First things first, check the measure: this is Blatt, not US.
01 · BLATT OR US
This is the mistake that causes the most returns. Dadant Blatt is the French and Italian standard and takes 47 cm top bars; Dadant US, common in Spain, is 48 cm and will not go in. One centimetre decides whether the kit you already own is any use. If you are in France, this is your hive without discussion; if you are in Spain and already have frames, measure a top bar before ordering. Foundation for this measure is 41 × 26 cm in the brood box, and the Dadant super size above.
02 · WHAT COMES ASSEMBLED

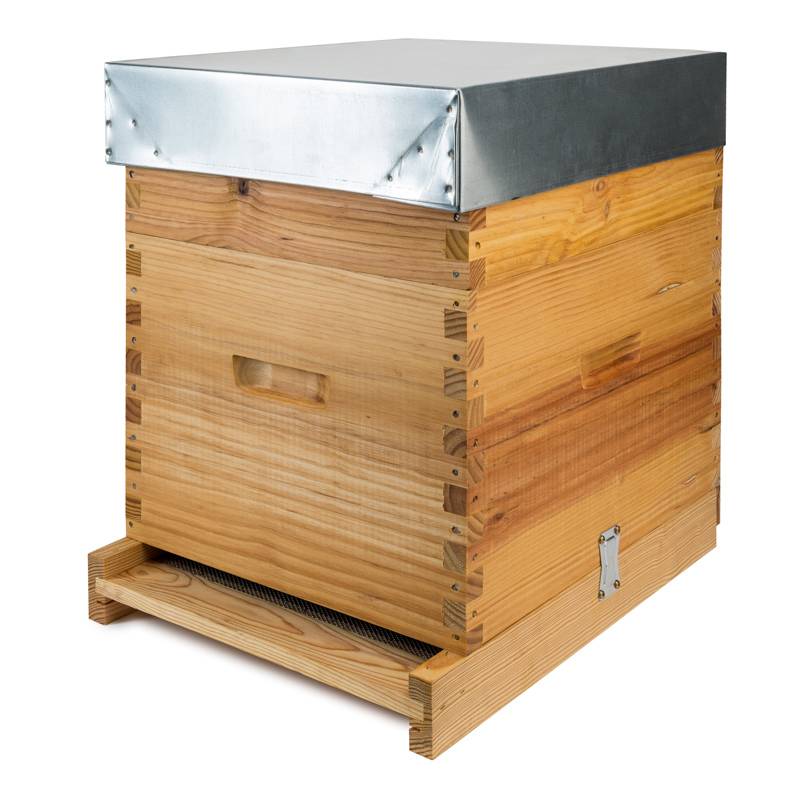

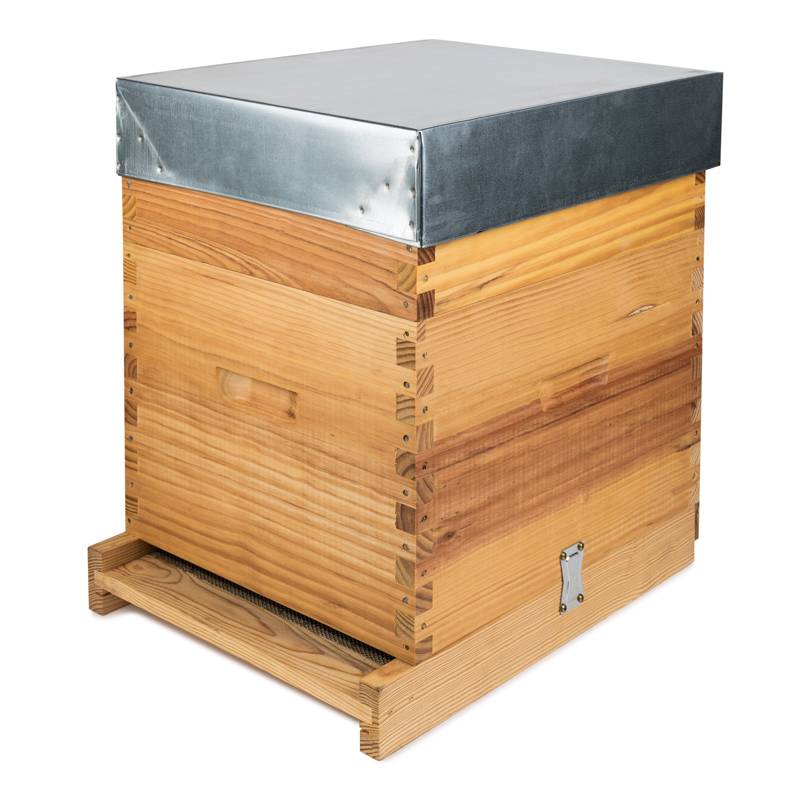

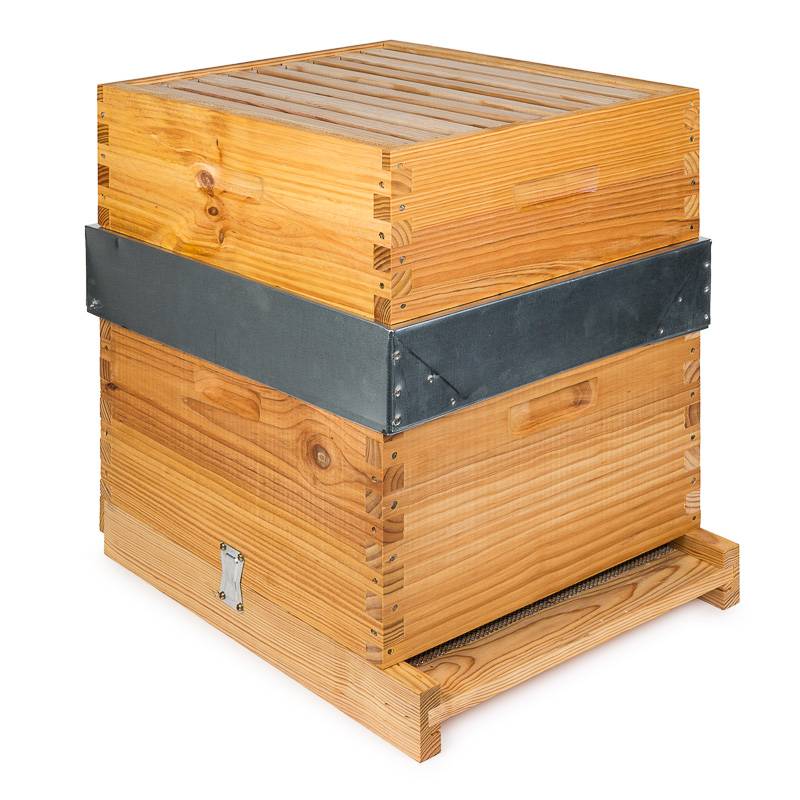

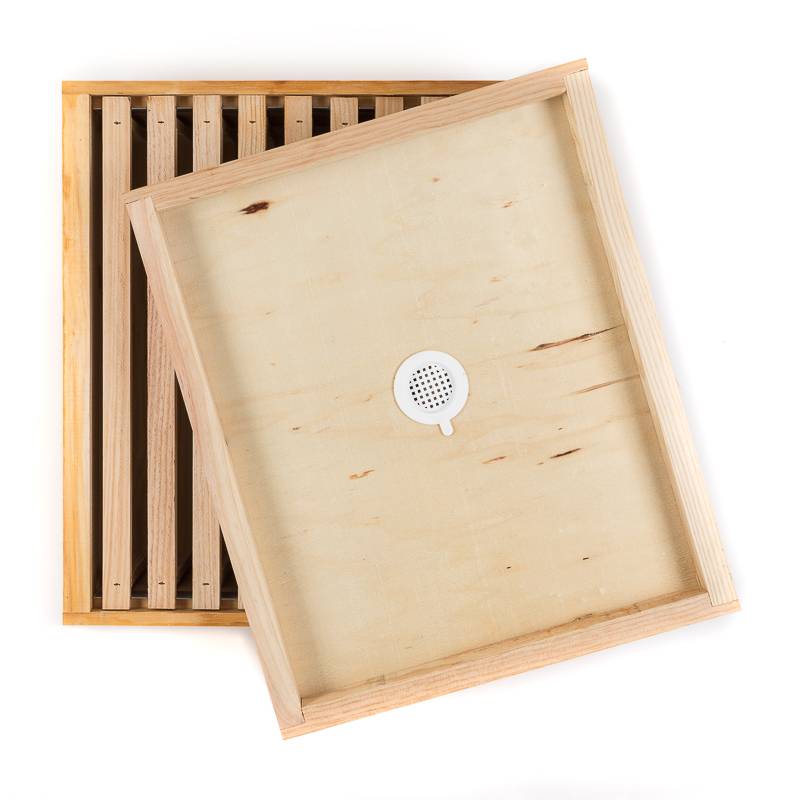

You get the brood box with 10 frames and the super with 9, the metal roof that takes the weather and the crown board that insulates. The frames come without foundation: sheets are bought separately and fitted at home. Brood box: 500 × 430 × 315 mm outside, 450 × 380 × 315 inside; the super is 170 mm deep. At 25 mm walls the box is heavy and insulates — which is what you want where day and night swing far apart.
03 · THE TWO CHOICES

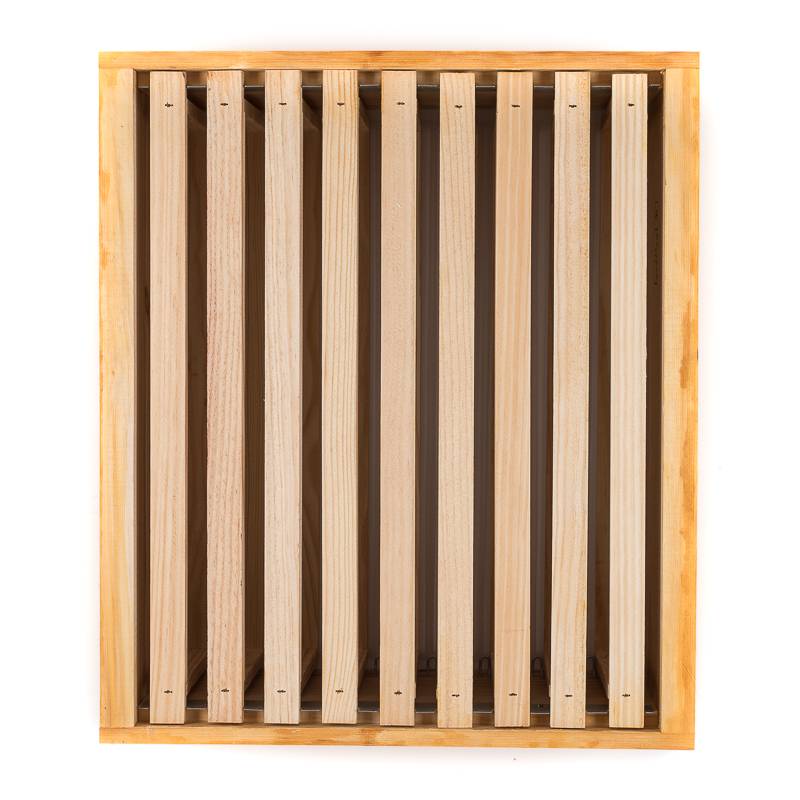

Hoffmann frames have the spacer built into the side bar: you push them together and the bee space appears by itself. A straight frame is plain, and then the spacing comes from the rack — the wooden or metal comb that sits in the rebate and fixes each frame's position. It ships with Hoffmann by default; ask for straight frames with a rack when ordering. As for the floor: the standard floor is solid wood, and the open-mesh floor has full ventilation — the one that lets you slide a greased tray underneath to count varroa drop.
04 · BEFORE YOU BUY
This is a hive for a serious start or an expansion: it arrives complete and assembled, and all it needs to be populated is foundation and bees. If your kit is Dadant US, this is not your measure. And if you want a full-ventilation Nicot floor from the factory, the Hybrid model carries it as standard.
| ✓ INCLUDES | Brood box with 10 frames, super with 9, metal roof and crown board. |
| ⚠ NOT INCLUDED | Foundation, feeder or bees. The floor is chosen when ordering. |
| Model | Dadant Blatt (French measure), 10 frames |
|---|---|
| Timber | Galician pine (Pinus pinaster), dried to 12 %, heat-treated |
| Finish | Linseed oil, no chemicals |
| Thickness | 25 mm |
| Brood box | Ext. 500 × 430 × 315 mm · int. 450 × 380 × 315 mm |
| Super | Ext. 500 × 430 × 170 mm · int. 450 × 380 × 170 mm |
| Floor | 550 × 430 × 50 mm — open mesh or solid |
| Roof | Metal, 520 × 445 mm |
| Frames | 10 brood + 9 super · Hoffmann or straight with a rack |
| Foundation | 41 × 26 cm brood · Dadant super size above |
