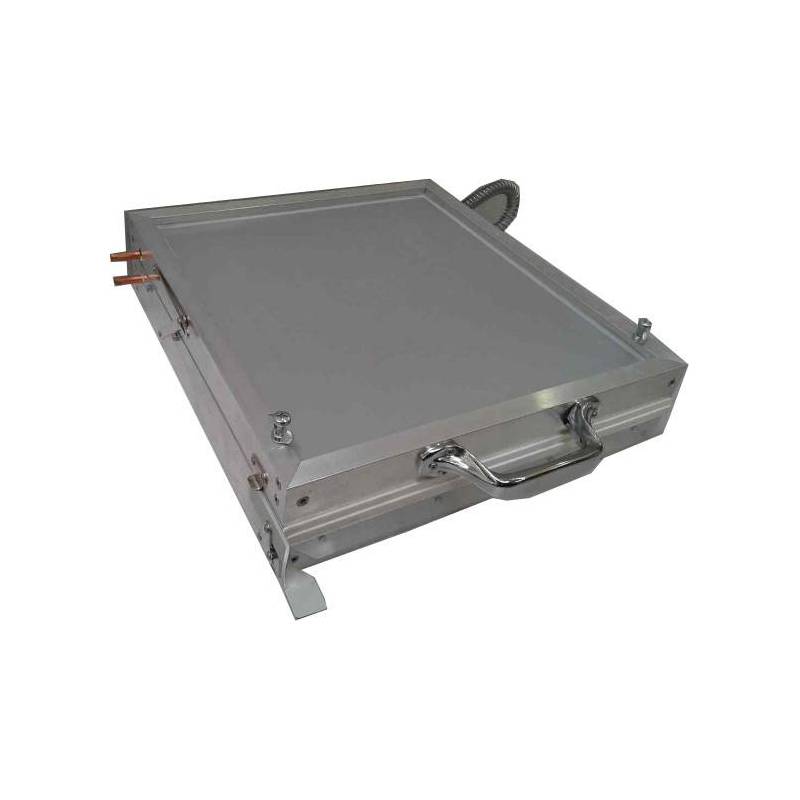

Portuguese size foundation machine

The body (structure) is made of aluminum, galvanized metal mesh of 1.5 mm over the entire surface on which the copper coil is held, flattened for a greater surface contact with the mesh and thus better temperature transmission. The mesh has two functions, to hold the elastosil to the structure preventing it from being detached by use and the vacuum created by pouring the hot wax and closing the stamping machine and at the same time transmitting the temperature of the coil increasing the cooling of the matrices. It's cooled by a copper coil. It has a system of sheet thickness regulation by means of adjustable hinges at the rear and adjustable depth stops at the front. This model has dimensions for the manufacture of Lusitanian sheets 33x26 cm with a size of cells 5.4mm. With practice you can work at a rate of 1 or 2 foundation sheets per minute.
