It is not a radial extractor with a trick to it: it is three baskets that reposition, and each position extracts in a different way.
Manual RITMO® hybrid extractor, 525 mm across and 1,130 mm tall on its legs, with a worm gear drive and acrylic lids. Nine half-frames radially or three body frames tangentially.
01 · RADIAL OR TANGENTIAL
The three steel baskets sit two ways. In radial the frames stand edge-on, like the spokes of a wheel, and both faces come out at once: nine half-frames a load, without touching them.
In tangential the frame lies flat against the wall: it extracts one face only, so you have to turn the frames by hand to get the other. Three frames a load, but it is the position that empties an old or very full comb that would resist radially.
02 · WHICH FRAME GOES IN
The basket takes half-frames up to 160 mm tall in the radial position — Langstroth and Dadant shallow supers — and body frames up to 300 mm tangentially.
Hoffman frames go in without trouble, side spacers and all. What will not fit under any arrangement is a body frame radially: that calls for an extractor of larger diameter.
03 · WHAT IT IS MADE OF

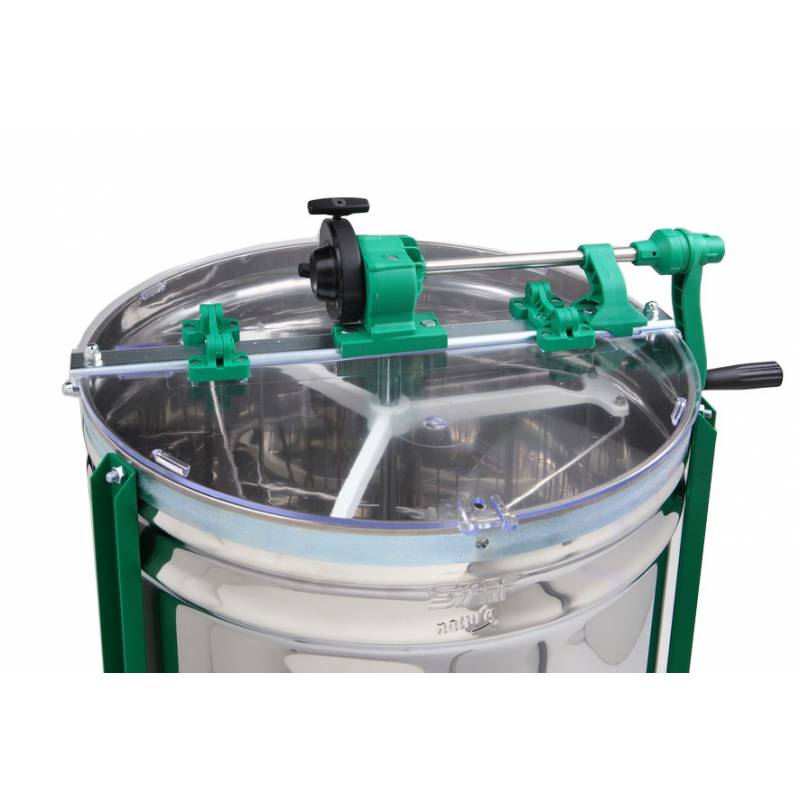

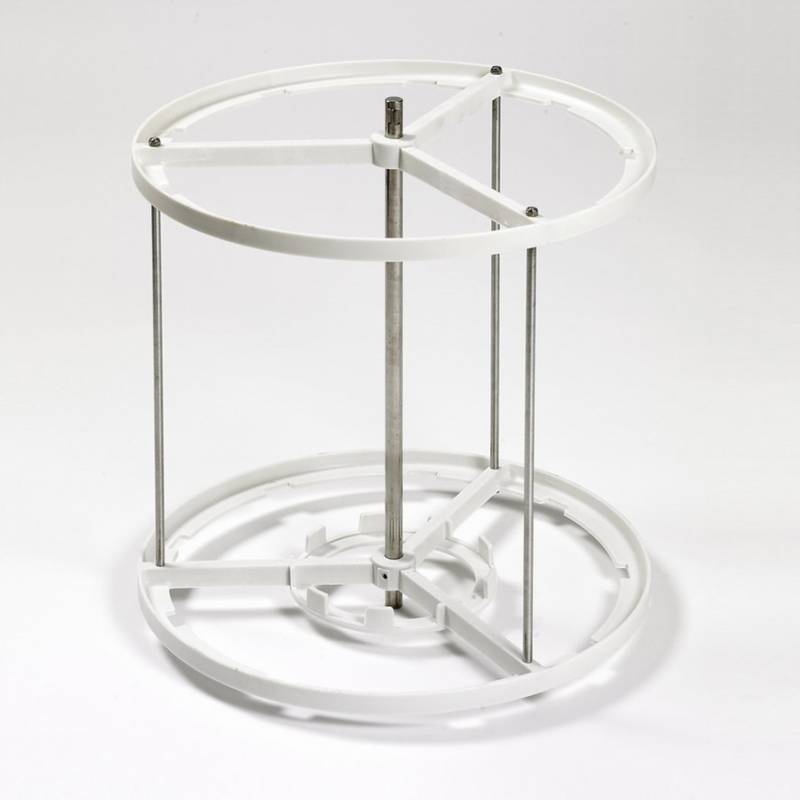

The drum is 525 mm across and 600 mm tall, in 0.6 mm sheet on the sides and 0.8 mm on the bottom; on its legs the extractor stands 1,130 mm tall. It weighs 15 kg. It comes with three detachable iron legs included, a food-grade plastic basket support, stainless rods and fasteners and acrylic lids — which are not decoration: they let you watch the load spin, which is how an unbalanced frame is spotted before it knocks.

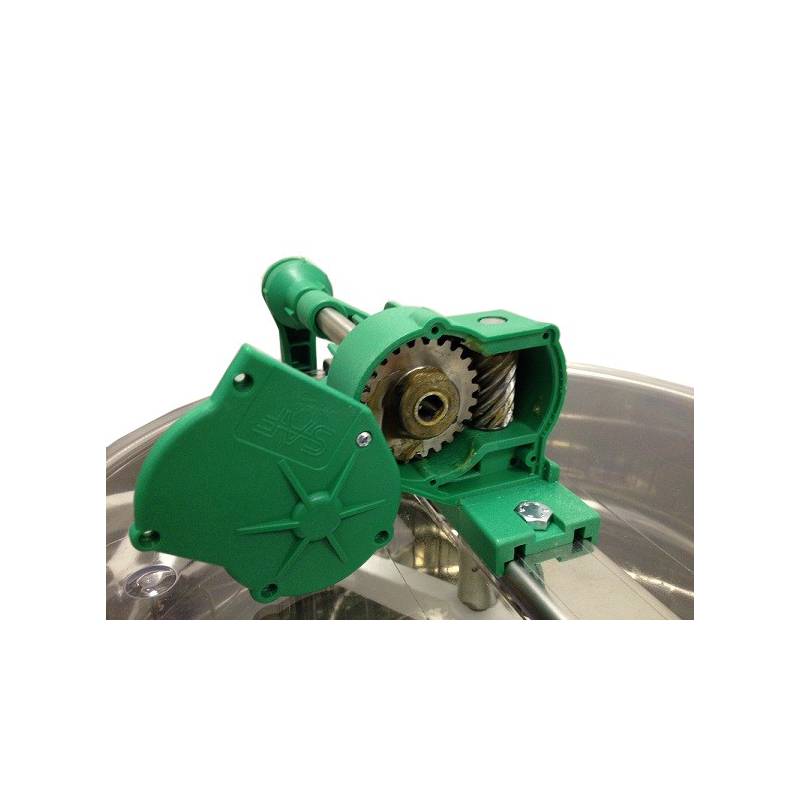

The drive is manual, through a metal worm gear, with a safety crank: always turn it clockwise, pressing it slightly towards the shaft so it engages; if you let go, it disengages and does not spin with the basket. There is no brake: the basket stops on its own, and braking it with the crank can break the gears.
04 · THE TAP, AND HONEY LEFT INSIDE
The tap fitted as standard is 40 mm plastic. That is the 1½″ size, so anyone wanting to move to stainless has the replacement in the same figures — 40 the bore, 49 the thread.
And the rule that saves trouble: an extractor is not a settling tank. Move the honey to the tank as soon as the load is done; leaving it in there doubles the cleaning and ties up the machine on the day you need to carry on.
05 · BEFORE YOU BUY
It is a manual extractor for a small to medium apiary:
| ✓ FITS | Langstroth and Dadant shallow supers radially, and body frames three at a time tangentially. |
| ✕ DOESN'T FIT | Body frames radially: they will not fit in 525 mm of diameter. |
| ⚠ NOT INCLUDED | A motor or a brake: the drive is manual and the basket stops on its own. |
| Model | RITMO® radial-tangential hybrid |
|---|---|
| Capacity | 9 half-frames radially · 3 body frames tangentially |
| Maximum frame | 160 mm radial · 300 mm tangential |
| Diameter | 525 mm |
| Height | 600 mm drum · 1,130 mm on legs |
| Drive | Manual, worm gear and safety crank · clockwise |
| Lids | Acrylic |
| Legs | Three, iron and detachable, included |
| Tap | 40 mm plastic (1½″) |
| Weight | 15 kg |
| Sheet thickness | 0.6 mm sides · 0.8 mm bottom |
| Reference | SN_74/F |
Data sheet
2 files available
No. According to the manufacturer’s manual, the crank is always turned clockwise; the drive is a worm gear. In the radial position there is no need to reverse, because both sides of the frame are extracted at once. In the tangential position, you get the second side by turning the frame round by hand.
It has no brake, and the crank does not keep turning: it is a safety crank. To drive the basket, you keep it pressed slightly towards the shaft as you turn; if you let go, it disengages and the basket coasts until it stops on its own. The manufacturer warns against braking with the crank, as it can break the gears.
They are included. This version of the RITMO (reference SN_74/F) comes with the three tangential supports as standard, so the same machine works radially, with nine half frames per load, or tangentially, with three frames up to 300 mm tall. In tangential mode one side is extracted at a time; you get the other side by turning the frame round by hand.
Yes, depending on the frame. In radial mode it takes nine Langstroth super frames up to 160 mm tall, and both sides are extracted at once. A Langstroth brood frame does not fit radially in a 525 mm drum: it is extracted tangentially, three at a time (up to 300 mm tall), turning the frame round by hand to do the second side.
