Strainer honey tank 25kg coarse/fine mesh

01 · FLOW PATH

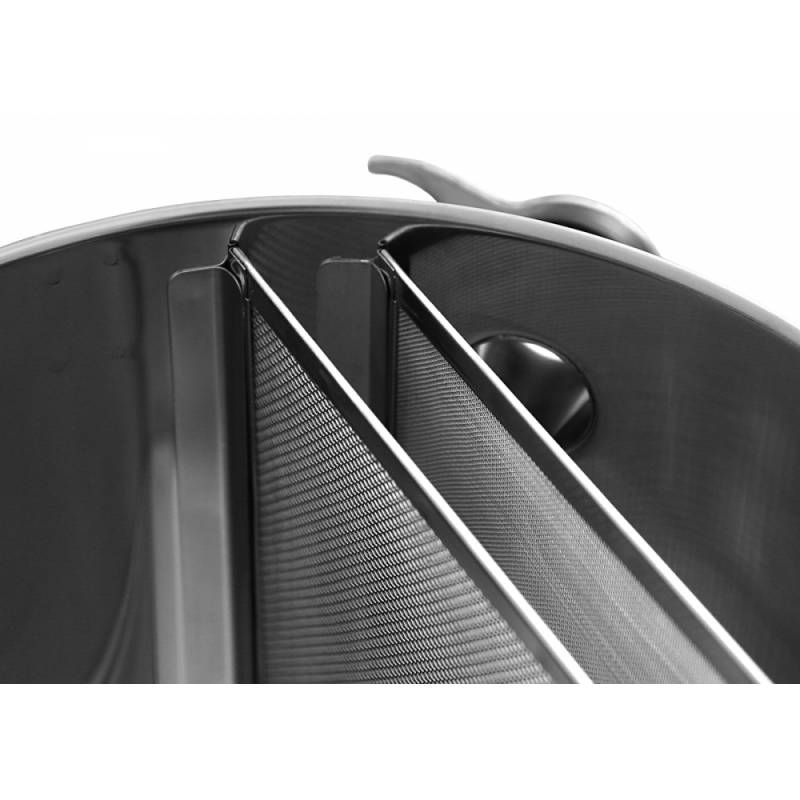

Honey passes through the coarse screen before the fine screen

Fill to the area of the upper outlet so the honey travels through both vertical screens. The first catches larger pieces of wax; the second reduces lighter visible particles before the honey reaches the outlet compartment.

The aperture of the two screens is not stated in the available specification. If your process requires a defined micron rating or a statement about pollen retention, confirm it before ordering.

02 · TWO OUTLETS

Keep the surface fraction apart from the filling flow

The upper outlet can draw off the wax-rich surface fraction, while the lower outlet is used to transfer or fill from the lower zone. Settling helps bubbles and particles separate, but the result depends on viscosity, temperature, time and prior cleaning.

03 · HANDLING

A 30 cm vessel that is manageable without lifting gear

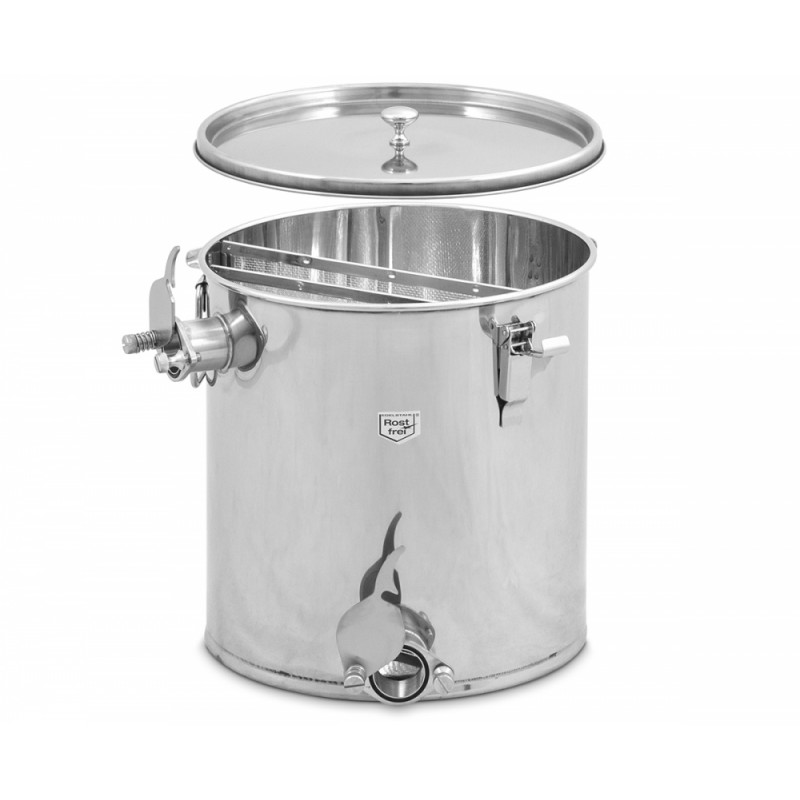

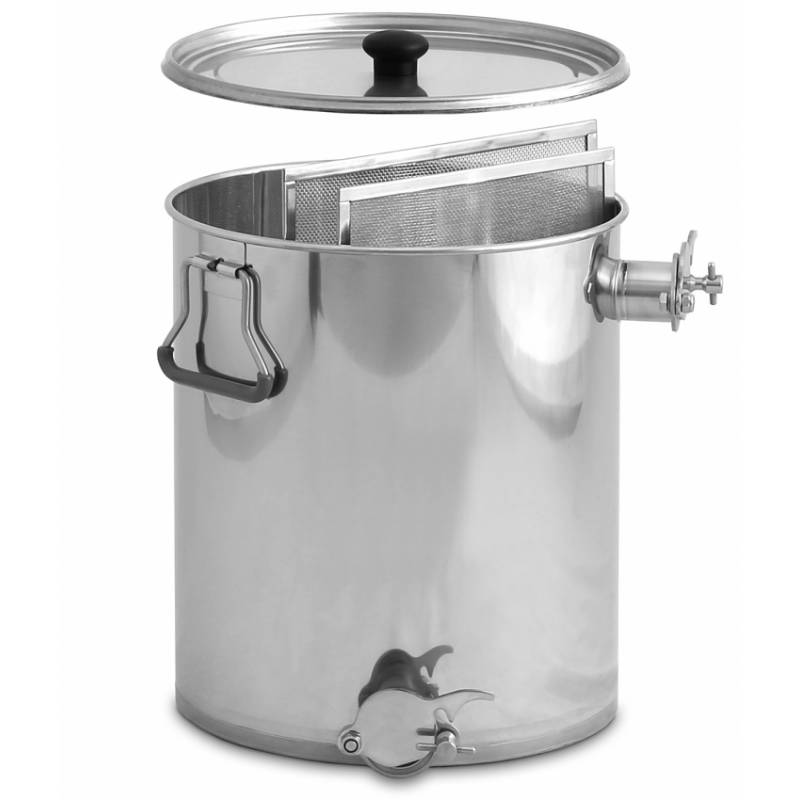

The body is 30 cm in diameter and 34 cm high, with capacity for up to 25 kg of honey. Handles assist movement when empty and the closure keeps the vessel covered. Remove and clean the screens after every batch so dried honey cannot block the mesh or outlets.

04 · BEFORE YOU BUY

For straining and settling, not batch validation

The vessel, lid, two vertical screens and two outlets are included. Neither screen aperture nor the exact height of the upper outlet is published; confirm both if they affect your installation. Also allow enough clearance below the lower outlet for the jar or transfer vessel.
