Universal Honey Tank Stand

29 .95 € - 52 .90 €

HAP10-310

Universal Honey Tank Stand

Share in WhatsApp

29 .95 € - 52 .90 € 29 .95 €

Tax included

Stock

Powder-coated iron lifting stand that raises the settling tank to 395 mm, with the gate at jar height: a triangular frame stable with the tank full, in five diameters (310, 380, 490, 535 and 640 mm). Chosen by measuring the tank’s outside diameter, not by its kilos.

Diameter

310mm
380mm
490mm
535mm
640mm

29 .95 € - 52 .90 € 29 .95 €

Tax included

Stock

Options

CERRAR

Quantity

Select options Options

Express Shipping

Return Guarantee

Safe payment

Details of Universal Honey Tank Stand

DIAMETERS: 310 TO 640 MM

395 mm

HIGH, GATE WITHIN REACH

Iron

POWDER-COATED

2.1-5.3 kg

BY SIZE

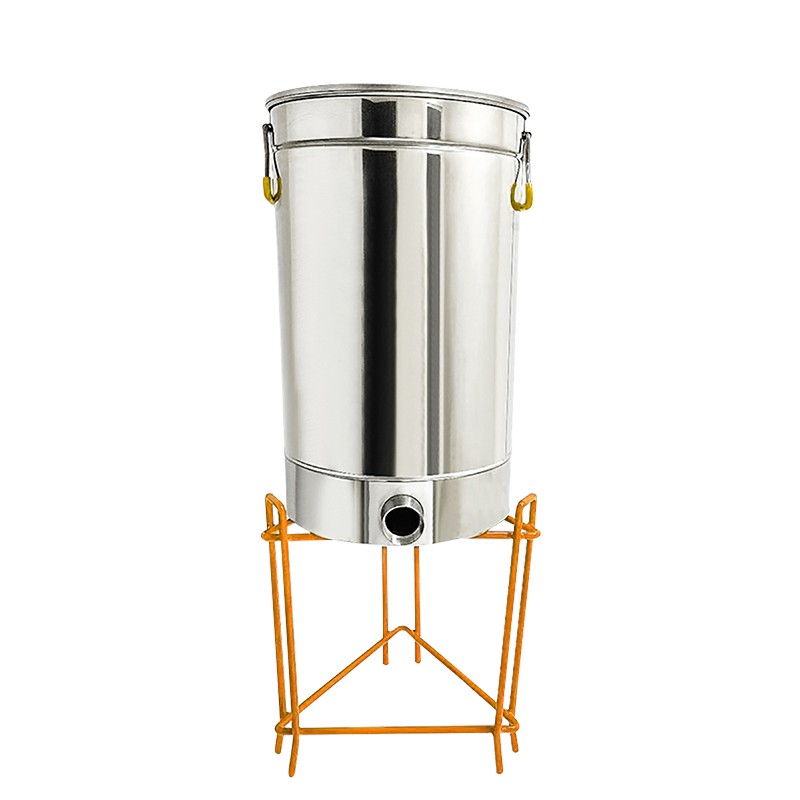

Powder-coated iron lifting stand that raises the settling tank 395 mm off the floor, with the gate at jar height and the tank stable even when full. Triangular V frame with side braces and a handle, in five diameters: 310, 380, 490, 535 and 640 mm. Chosen by the tank’s outside diameter, not by its kilos.

Bottling from a tank on the floor is an afternoon on your knees and back: at 395 mm the gate is at table height and the jar underneath.

01 · WHICH SIZE

Measure your tank’s outside diameter and choose

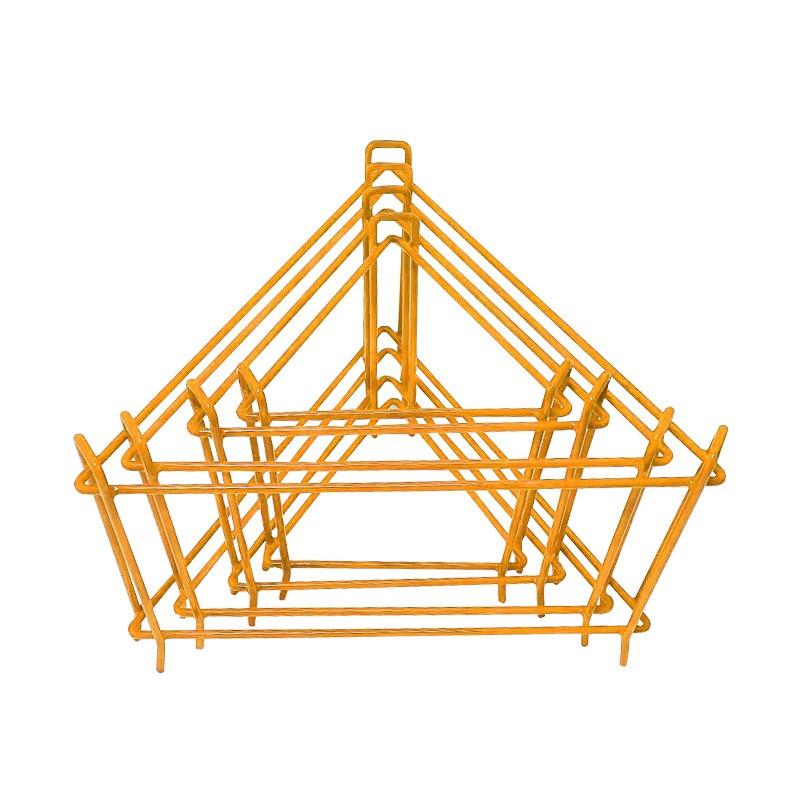

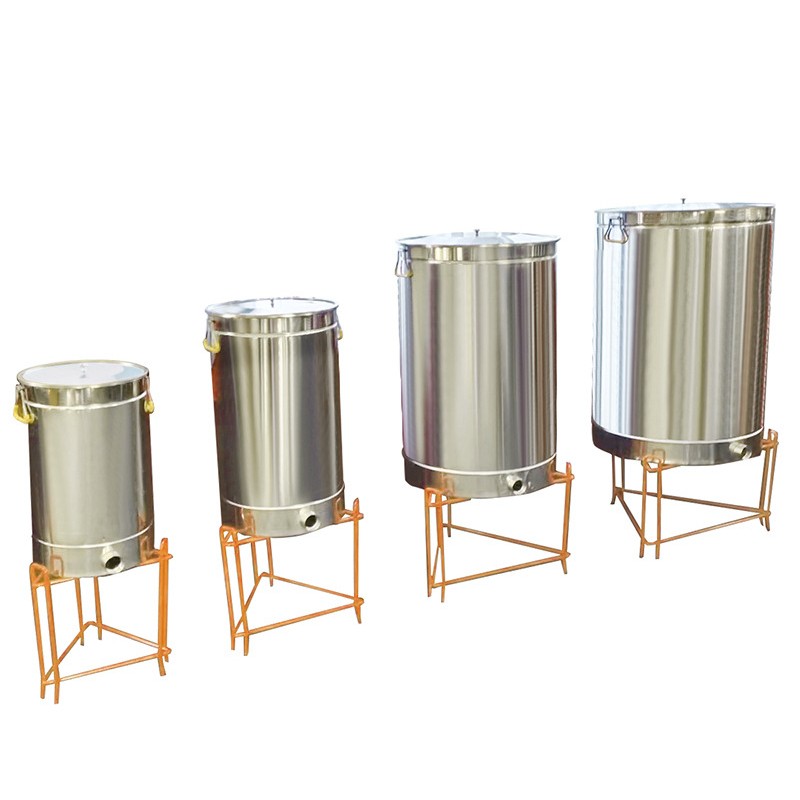

Five diameters: HAP10-310 (Ø 310, 342 × 286 mm, tanks of about 50 kg, 2.1 kg), HAP10-380 (Ø 380, 430 × 375, 50 to 100 kg, 3 kg), HAP10-490 (Ø 490, 484 × 430, 100 to 200 kg, 4.7 kg), HAP10-535 (Ø 535, 529 × 475, 200 to 400 kg, 5.3 kg) and HAP10-640 (Ø 640, 632 × 578, 400 kg and up). The kilos are a guide: the diameter rules. With the house tanks: the 50 kg Quarti (Ø 310) goes on the 310; the 65-80 kg plastic one (Ø 375) on the 380; the 200 Quarti (Ø 470) on the 490; the 300 (Ø 530) on the 535; the 400 SAF (Ø 630) on the 640.

02 · HOW IT WORKS

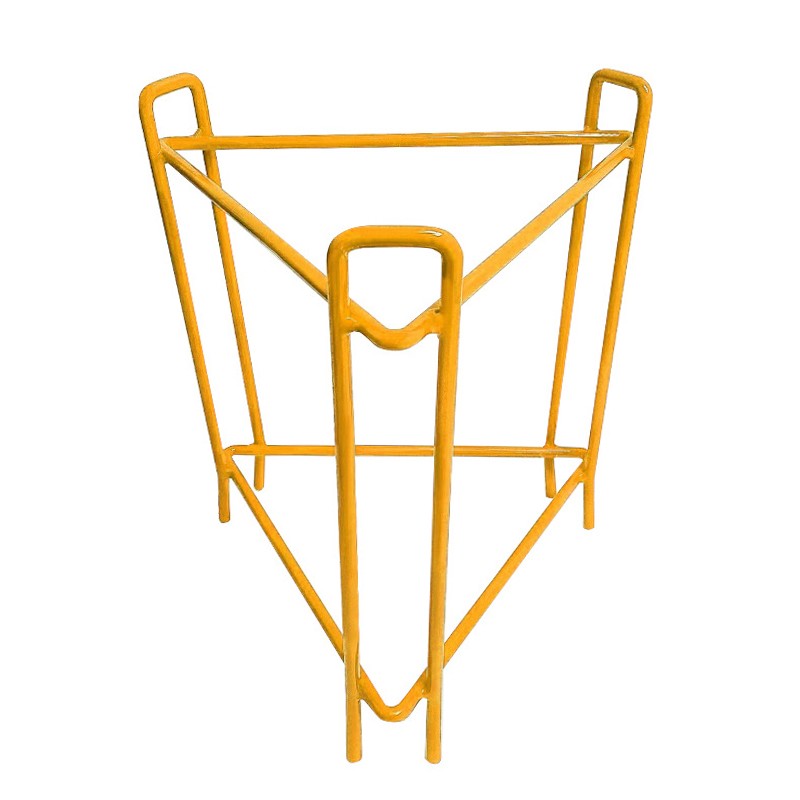

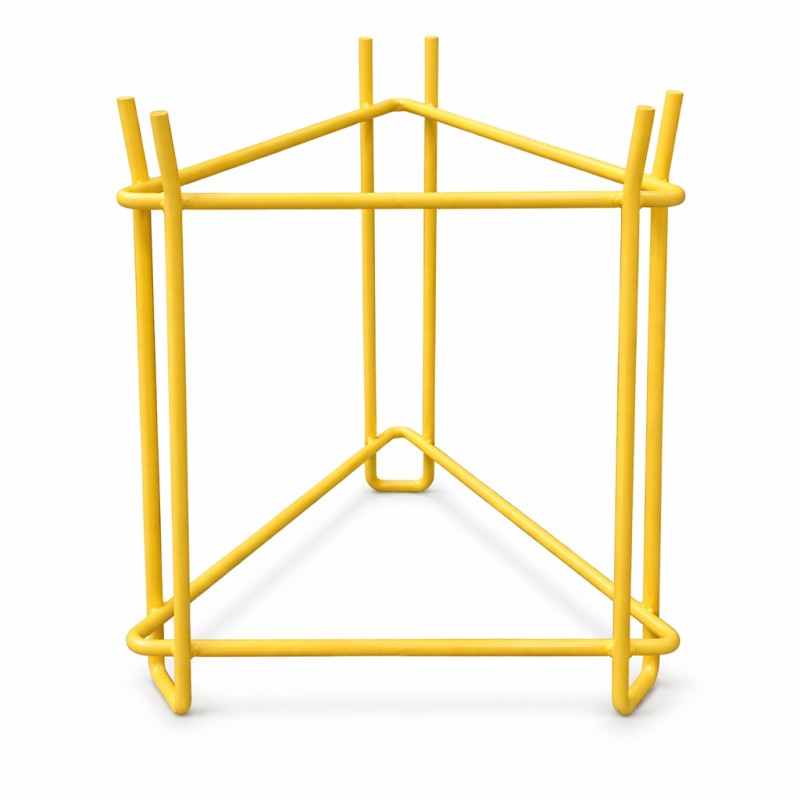

Inverted V, flat feet and 395 mm

The inverted-V design with side braces and a central handle spreads the tank’s weight, and the legs end in flat feet so they do not mark the room’s floor. All sizes share the same height, 395 mm: with a 100 cm tank on top the gate sits at low-table height and the jar fills without bending. Set the stand level first and then the empty tank; a full one is not moved.

03 · THE MATERIAL

Powder-coated iron, for a damp room

Iron with a powder coating that takes the damp of an extraction room without rusting; clean with soap and water. No maximum load is declared per size: the maker rates it for full tanks within each diameter’s range, and the side braces are there for that. No wheels: it is a fixed stand.

04 · BEFORE YOU BUY

One stand of the chosen size is supplied; the tank comes separately.

✓ FITS	Anyone bottling from a cylindrical 50-400 kg tank who wants the gate to hand without bending, whatever the brand.
✕ DOESN’T FIT	Square tanks or ones with their own legs, and anyone after a wheeled stand: it is fixed and for round tanks.
⚠ NOT INCLUDED	Tank.

SPECIFICATIONS

Reference	HAP10 (variants -310, -380, -490, -535, -640)
Material	Powder-coated iron
Height	395 mm in all sizes
Ø 310	342 × 286 mm; tanks of ~50 kg; 2.1 kg
Ø 380	430 × 375 mm; 50-100 kg; 3 kg
Ø 490	484 × 430 mm; 100-200 kg; 4.7 kg
Ø 535	529 × 475 mm; 200-400 kg; 5.3 kg
Ø 640	632 × 578 mm; 400 kg and up
Design	Triangular V with side braces and central handle; flat feet
Cleaning	Soap and water
