Honey settling tank for quick and efficient honey decanting and filtering. With our equipment, you can process large amounts of honey in a short time, thanks to its large filtering area that allows the honey to flow faster.

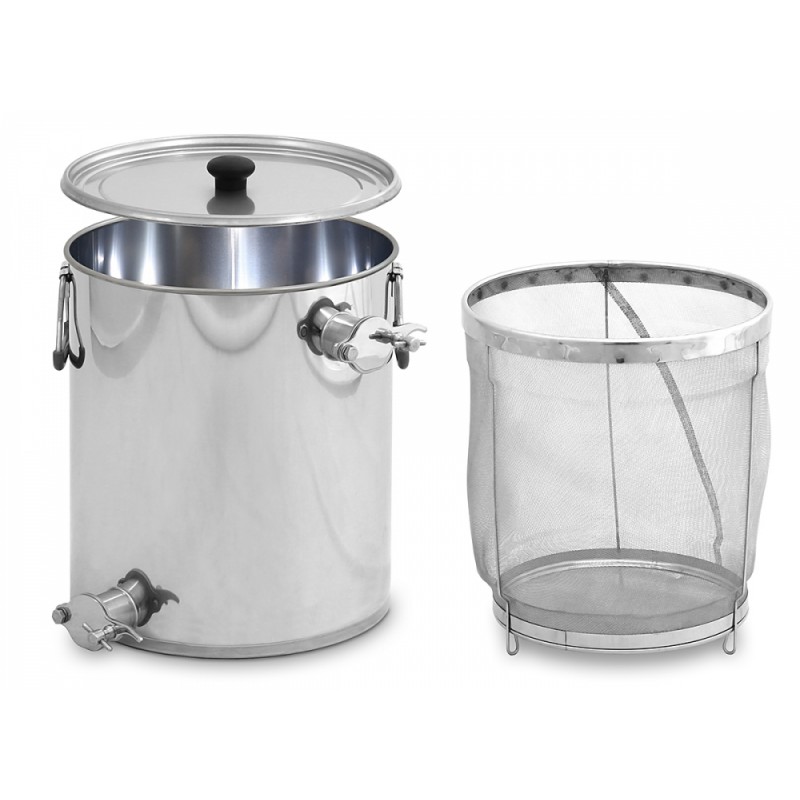

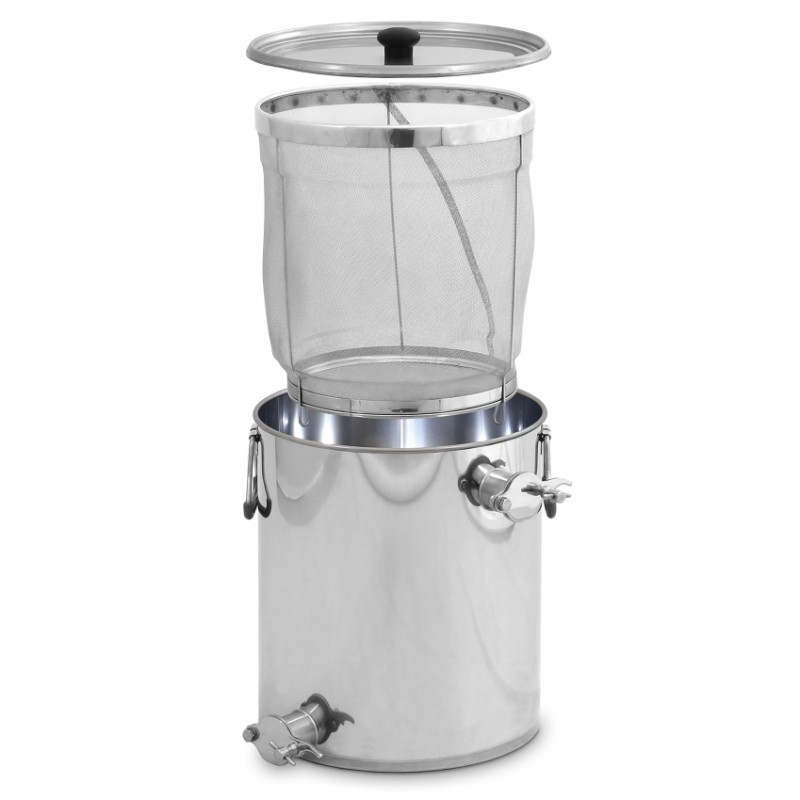

35 kg settling tank with a 1 mm mesh filter basket and two taps: the upper one draws off already-filtered honey, the lower one empties the tank.
Settling and filtering are not the same operation, even when one tank does both. The mesh takes out what you can see; the wait takes out what you cannot.
01 · THE TWO TAPS
The upper tap sits above the level where the impurities settle: it is there to fill buckets with honey that has already passed the mesh and had time to settle.
The lower tap is for emptying, to drain the tank at the end of the process. And with the basket removed, the same vessel works as a plain bottling tank.
02 · FILTERING AND SETTLING

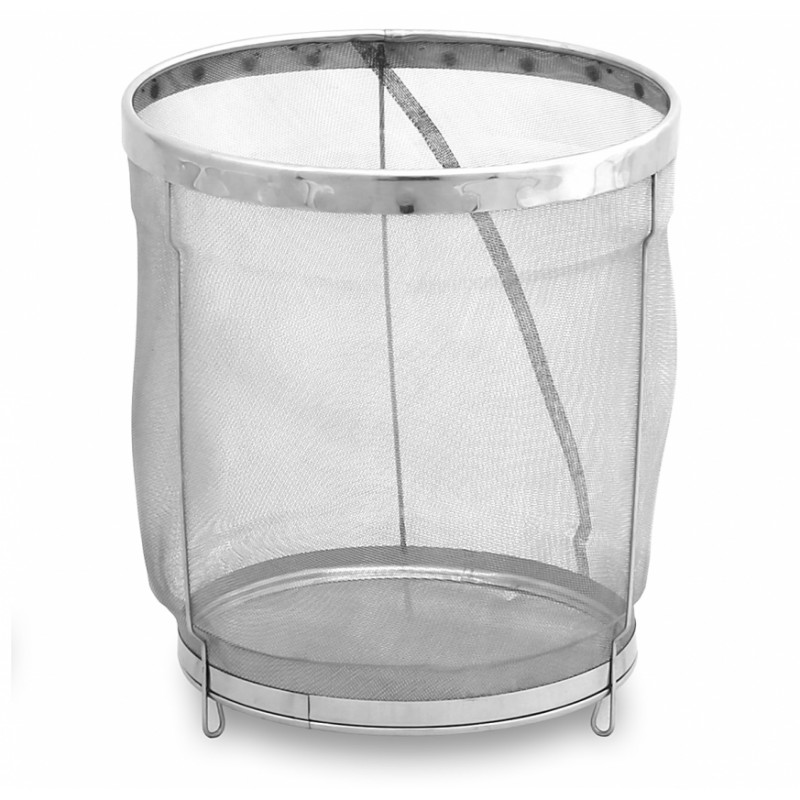

The 1 mm mesh holds back the coarse material: bits of wax, cappings, legs. It is what stops the jar reaching the customer with dark specks in it.
The rest only time can do. Freshly extracted honey carries air in it, and that air rises as a fine foam. After 24 to 48 hours standing, the foam gathers at the top and is lifted off with a skimmer; drawing the honey off earlier means bottling the foam.
03 · HEAT HAS A CEILING
Honey at 15 °C will not go through a 1 mm mesh in any reasonable time, and warming it a little is normal practice. But the limit is real: above 40 °C honey starts paying for the heat in HMF, and HMF is a legal parameter that gets measured.
As for capacity, 35 kg of honey is around 25 litres: honey weighs 1.4 kg per litre. And it is best not to fill to the brim, because the foam needs room to rise.
04 · BEFORE YOU BUY
This is a settling tank with a filter built in, not a fine filter: the 1 mm mesh removes the coarse stuff, it does not clarify.
| ✓ RIGHT FIT | Filtering and settling in one step before bottling, on medium harvests. |
| ✕ WRONG FIT | If you want fine or industrial filtration: 1 mm is a first pass. |
| ⚠ NOT INCLUDED | No heating element: it does not warm the honey by itself. |
| Capacity | 35 kg — around 25 litres of honey |
|---|---|
| Taps | Two: upper for filtered output, lower for emptying |
| Filter | Basket with 1 mm mesh, removable |
| Without the basket | Works as a bottling tank |
| Lid | Removable, light |
| Recommended settling | 24-48 h before bottling, to skim the foam |
| Working temperature | Below 40 °C — above that the HMF rises |
Honey settling tank for quick and efficient honey decanting and filtering. With our equipment, you can process large amounts of honey in a short time, thanks to its large filtering area that allows the honey to flow faster.
