Honey straining system THERMA 32ø

299 .95 €

109190

Honey straining system THERMA 32ø

Name: Honey straining system THERMA 32ø
Brand: Swienty
SKU: 109190
Price: 299.95 EUR
Availability: BackOrder
Rating: 5 (1 reviews)

See 1 Customer Reviews

Pack

Share in WhatsApp

299 .95 €

Tax included

Swienty DANA api THERMA heated honey-straining set: Ø 32 cm, 350 µm conical nylon strainer, stainless cone, stand and 550 W thermostatic heater. Supports stable 32-90 cm vessel rims; receiving tank not included.

299 .95 €

Tax included

Quantity

Select options Options

Express Shipping

Return Guarantee

Safe payment

This pack contains

Fine conical nylon honey strainer 300 micron Honey Strainers

Fine conical nylon honey strainer 300 micron Diameter-320mm

9 .95 €

x 1

Tripod stand for strainer Ø32

16 .95 €

x 1

Coil heater THERMA Diameter-320mm

225 .00 €

x 1

Cone Stainless for Therma straining system Honey Strainers

Cone Stainless for Therma straining system Diameter-320mm

39 .95 €

x 1

Details of Honey straining system THERMA 32ø

Ø 32 cm

STRAINER DIAMETER

350 µm

INCLUDED FINE MESH

550 W

HEATING POWER

230 V

POWER SUPPLY

A complete setup for straining cold, viscous or partly crystallised honey without turning every blocked filter into a full stop.

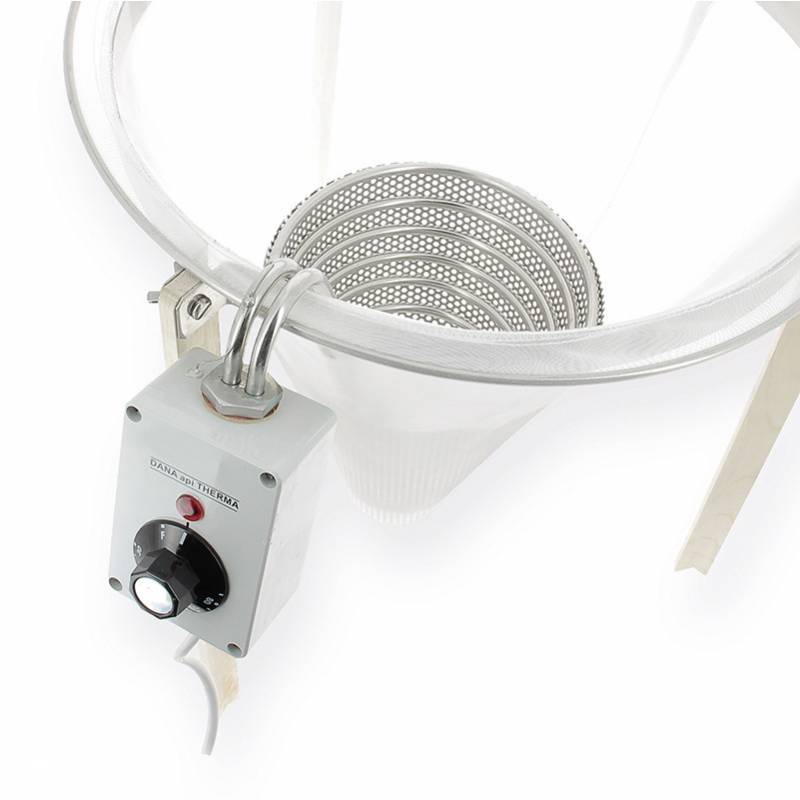

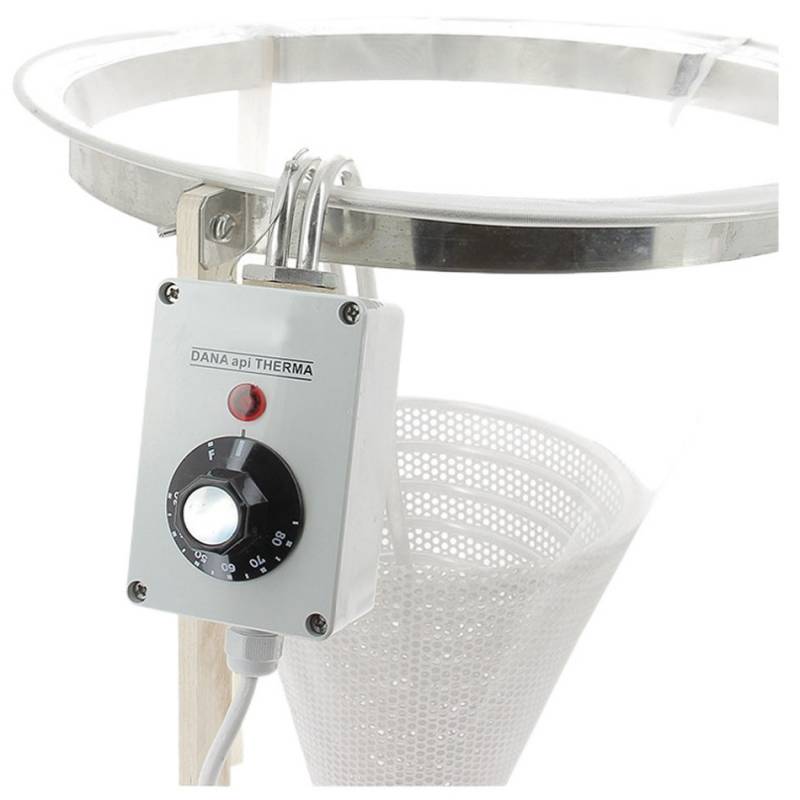

Swienty DANA api THERMA set 109190 combines a thermostatically controlled heater and sensor, a stainless-steel heat-distribution cone, a 32 cm conical nylon strainer and a wooden stand. It is neither a pump nor a tank: it sits above the receiving vessel and applies heat where the honey crosses the mesh.

01 · HOW IT WORKS

Local heat instead of a long hot hold

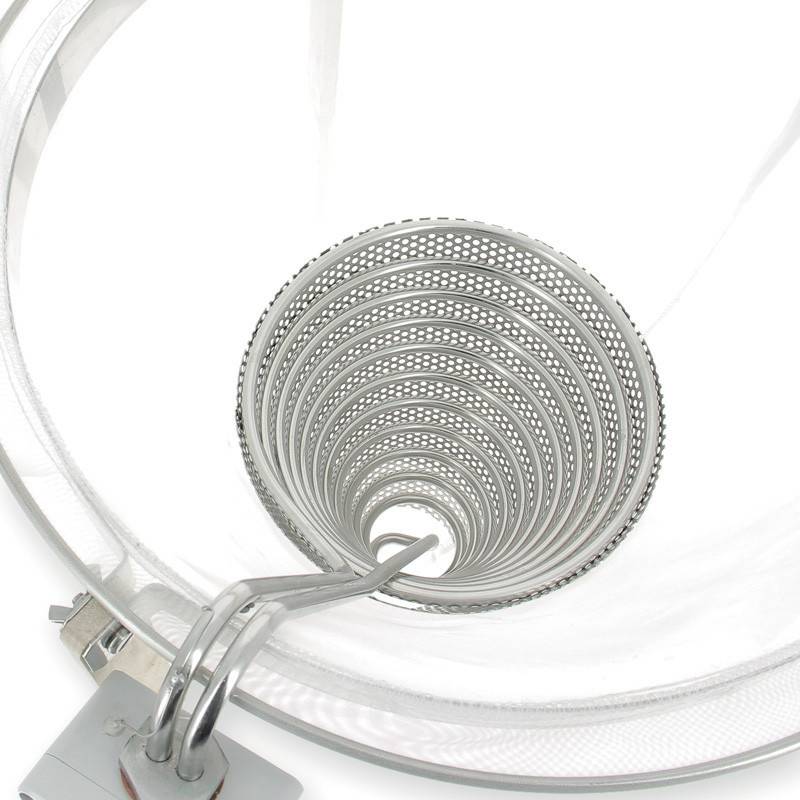

The heating element runs inside the strainer while the perforated cone spreads heat across the area where honey has to pass through the mesh. The temporary reduction in viscosity lets honey flow under less pressure and leave the heated zone as soon as it reaches the vessel below. The thermostat and probe regulate the heater, but the dial setting is not a measurement of honey outlet temperature: initial temperature, flow rate and crystallisation all change the real result.

02 · INCLUDED STRAINER

Ø 32 cm and 350 µm are different measurements

The nominal strainer diameter is 32 cm; it is not 32 mm and it is not the mesh size. The included Swienty 109030 conical fine strainer is the 350 µm version. It retains wax fragments and particles larger than its openings, but it does not sterilise honey or remove dissolved material. Where the load contains a great deal of wax, remove the largest debris first so the fine mesh performs the finishing pass and keeps a useful flow rate.

03 · ANTI-CLOG FEATURE

The cord refreshes the filtering surface

The fine strainer has a cord and ring. When solids coat the surface, a few gentle pulls move the fabric and expose a less saturated area, allowing work to continue without dismantling the whole station. This helps maintain flow; it does not replace cleaning once the mesh is fully loaded. Do not force honey through with tools or press it hard against the nylon, as this can deform the mesh or stand and drive more fine debris into the product.

04 · TEMPERATURE AND QUALITY

Use the lowest setting that gives stable flow

The control covers approximately 30 to 85 °C. That is the equipment setting range, not a universal processing recommendation for every honey. Start low, allow the system to stabilise, then check both flow and the actual temperature of honey leaving the cone. Use the lowest effective setting and avoid unnecessary recirculation or hot holding. Fully crystallised honey may need controlled pre-conditioning and even batches; THERMA assists straining and local liquefaction, but it is not a substitute for a validated decrystallisation process.

05 · SETUP AND CLEANING

The receiving vessel is part of the process

The stand is intended for stable rims between 32 and 90 cm; it may be less secure on smaller containers. Centre it, make sure the legs cannot spread and leave clearance below the cone. Before cleaning, unplug the unit, let it cool and separate the removable parts. Recover honey while it still flows and clean as directed by the manufacturer, keeping water away from the electrical control box and never storing the nylon wet or folded over sharp edges.

06 · BEFORE BUYING

Check the complete workstation, not only the diameter

This set suits gravity straining by batches over a pail or settling tank where a protected 230 V supply is available. Also decide where the honey will fall, how much the receiver holds before overflowing and how actual product temperature will be checked.

✓ SUITABLE	Receiving vessels with a stable 32-90 cm rim and gravity-fed straining.
✕ NOT FOR	An automated pumping line, filtration below 350 µm or a validated heat treatment.
⚠ NOT INCLUDED	Receiving pail or tank, external temperature logger or pumping equipment.

TECHNICAL DATA

Set reference	109190
Supplied components	DANA api THERMA 109170, stainless cone 109171, strainer 109030 and stand 109110
Strainer	Conical nylon, Ø 32 cm, 350 µm fine mesh, with cord and ring
Receiving vessel	Stable rim from 32 to 90 cm
Power supply	230 V
Power / current	550 W / 2.4 A
Thermostat range	Approximately 30-85 °C; verify honey at the outlet
Made in	Denmark
